5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter

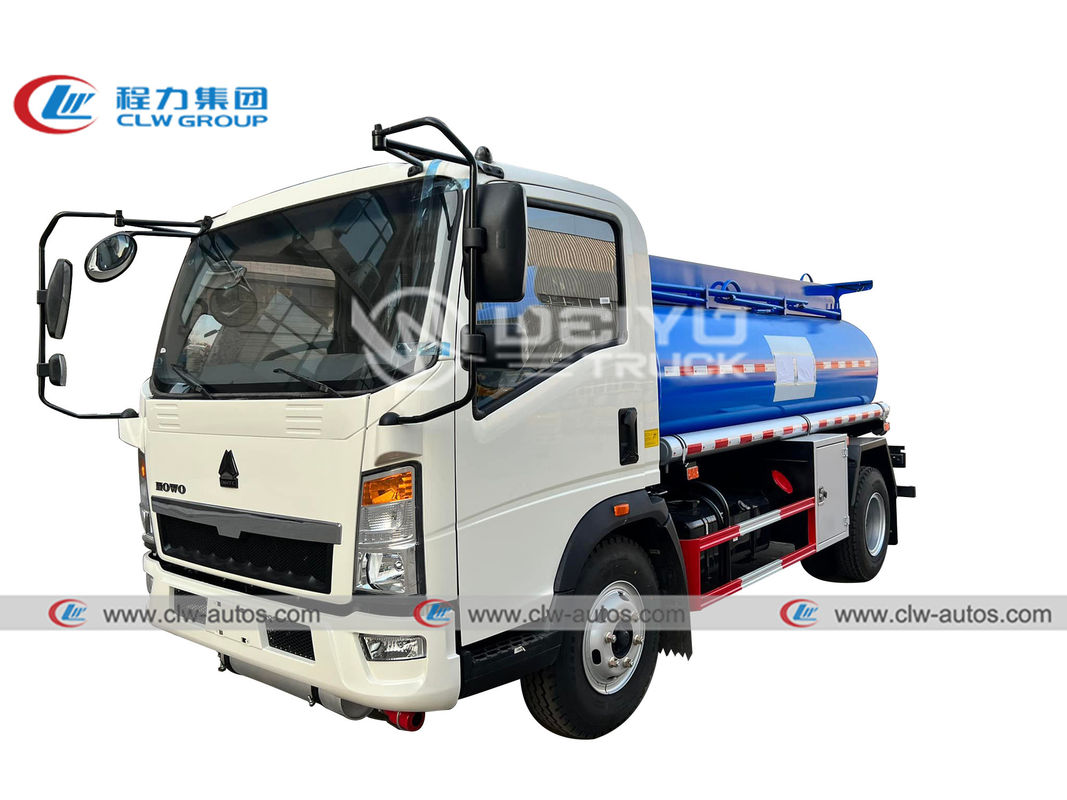

تصویر بزرگ : 5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
Model Number:	CLW202843RUE

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
Delivery Time:	30-35 days after receiving the deposit
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد ضد زنگ، آلیاژ آلومینیوم	نوع درایو:	4x2 چپ دستی
Cabin:	Single row cabin	Tank Volume:	5000L, 5000liter, 5cbm, 5m3
Truck Brand:	Dongfeng /Sinotruk HOWO, shacman, FAW, FOTON, jac	Tuck type:	Aviation kerosene, Jet A1 Transport, delivery and refilling
Other equipment:	charging/discharging valves. API Manhole	محفظه:	با توجه به نیاز مشتری
فلومتر:	بله	Product name:	Oil Fuel Rufueling/Refilling Filling Tanker Truck
موتور:	110 اسب بخار	نوع انتقال:	دستی
برجسته کردن:	5000L HOWO Fuel Tanker Truck,5cbm HOWO Fuel Tanker Truck , 5cbm HOWO Fuel Tanker Truck

5cbm 5000liter 5000L HOWO Fuel Tanker Truck Fuel Dispensing Truck Mobile Diesel Tanker Transportation Trcuk With Flowmet

Product description:
1. Howo 4X2 left hand driving
2. YUNNEI diesel engine with 116hp
3. Axle loading: front axle 2t rear axle 3.5t
4. 5-Forward & 1-Reverse WLY gear box
5. Q235B carbon steel; Ellipse tank shape
6. 5cbm tank volume with 4mm thickness

Application range:

1. city, suburb, mining plants, wharf, airport, bus station, country road,

2. many other places which is without filling station,which can be used as mobile filling station.

Producing process:

Bending and punching--Frame assembling--Electroplate--Axle installation--Engine cover cutting--Engine testing-- Cab assembling--Light detection--Truck man testing

Product Specification

TECHNICAL SPECIFICATION
Model		SINOTRUK	Tank volume	5000L /5m3
Overall Dimension(mm):		599020002380	Driving type	4x2 Left hand driving
Chassis parameters
Chassis		HOWO
Cabin		Single row cabin, allowable for 2 passengers with air conditioner
Engine	Model	YN4100QBZL
	Rated power	116hp
	Displacement	3.298L
	Type	4 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection
	Emission	Euro 3, Diesel
	Manufacturer	SINOTRUK
Tire	Size	7.00R16, steel wire tire
	Number	6 tire with one spare
Front / Rear axle		2000/3500	Transmissions	WLY535,5-Forward & 1-Reverse
Fuel tank		400L, steel	Wheel Base	3360mm
Tanker parameters
Tank dimensions		340016001100mm	Tank volume	5,000L
Shape of the tanker		Ellipse	Tank thickness	4mm body/ end plate 4mm
Material of tanker		Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion
Transport medium		Diesel oil, gasoline or others
Manhole		GLME, Euro standard, including pressure relief valve
Bottom Valve		GLME, Euro standard
Discharge Valve		Aluminium Alloy Ball Valve type (stainless steel ball valve is optional)
Emergency Cutoff Device		Equipped
Oil Pump		Weilong or Yifeng (Chinese famous brand )

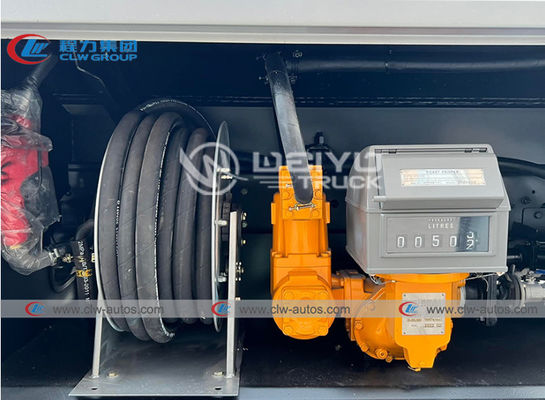

Flow Meter		High-end flow meter
Filling Gun		Rotary filling gun
Standard configuration		tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included
Optional Configuration		pneumatic valve, AIP valve, overflow sensor system, vapour recovery system
Color & Logo		Customized

Detailed photos:

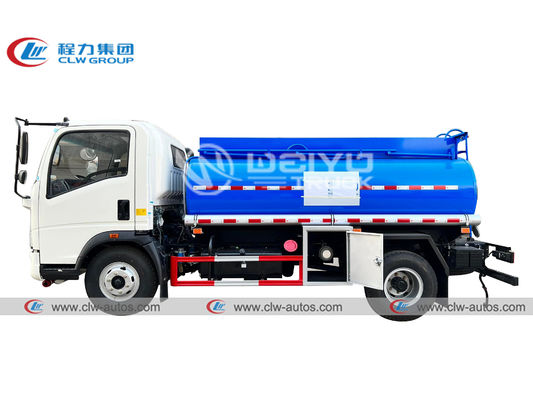

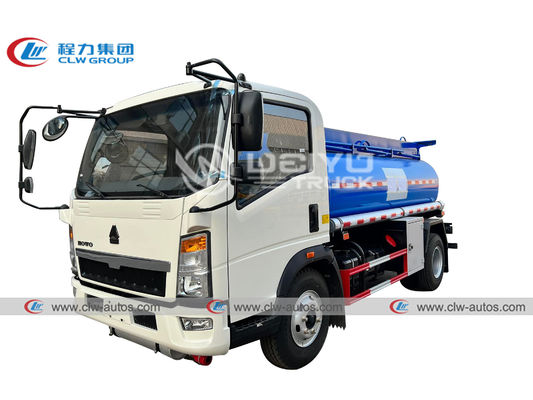

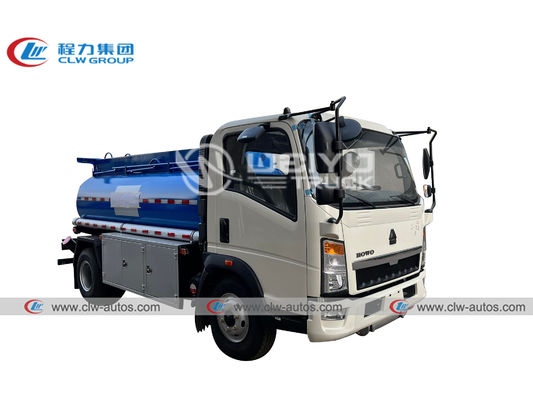

5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter 0

5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter 1

5cbm 5000L HOWO Fuel Tanker Truck Mobile Diesel Tanker With Flowmeter 2
