Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks

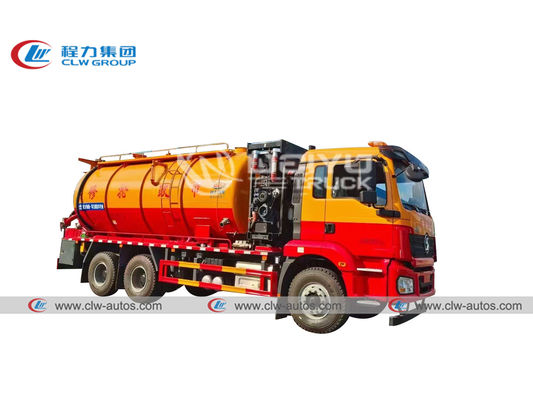

تصویر بزرگ : Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC
Model Number:	CLW5209IRD

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	کامیون مکش فاضلاب وکیوم دانگ فنگ، شاکمن، سینوتروک هوو، CAMC، فاو، ISUZU	Driving model:	LHD Vacuum Sewage Suction Truck
موتور:	موتور دیزل	مواد:	فولاد کربن Q235
Tanker size:	18000Liters 18Tonnes 18T 18m3	Loading capacity:	18tonnes 18t
Thickness of tanker:	5mm Fecal Suction Truck	Vacuum pump:	Chinese pump, BP, Jurop, Moro Kaiser
عمق مکش:	8 متر	Suction distance:	DN50 or DN100 2" or 4”
تایپ کنید:	فاضلاب / لجن / مکش سپتیک وکیوم کامیون مکش فاضلاب	لوگو و رنگ:	سفارشی
برجسته کردن:	Shacman Automatic Vacuum Tanker Truck,18cbm Vacuum Tanker Truck , 18cbm Vacuum Tanker Truck

Shacman 18cbm 18000liter 18m3 Automatic Instant Swer Truck Vacuum Tanker Truck For Septic Tanks

Application range:
1. Cleaning and dredging sediments in sewers and various pipes in municipal, chemical, mechanical, metallurgical, electric power and other departments.
2. Carrying out sludge removal, shipping and dumping work in sewers, and also with functions like water transportation, drainage and emergency fire protection.

Main structures:
Rear door cylinder; ball valve-sewage drain; rear door lock device; ball valve-water drain; vacuum pump;
oil air separator; water air separator; vacuum pump; control handle; tank body; anti-overflow valve;
glass window; sewage line; tipping cylinder

Product descriptions:

The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.

Product descriptions:

Complete Vehicle Parameter
Vehicle	Shacman sewer vacuum truck
Overall dimension (mm)	1055025503750
Sewage tank (m3)	18 septic tanker truck
Gross vehicle weight (kg)	Appro*30000
Curb weight (kg)	Appro*14000
Payload (kg)	Appro*16000
Wheel base (mm)	4350+1300
Max speed (km/h)	90
Chassis Parameter
Cabin	Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive,with Air Conditioner
Drive form	6X4
Engine	Brand: cummins
	385HP
	Type: diesel, turbocharged, 6 cylinder.
	Displacement: 10.8L
	Emission standard: Euro 4/5
Transmission	12 forward,2 reverse, manual operated
Tire model	12R22.5
No.of tires	10 pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 18000 liter/18 cbm Sewer suction truck
	2. Sewage tank material is carbon steel,thickness 5mm.
	3. Sewage suction pipe 1pcs, length 7m.
	4. Hydraulic lifting sewage tank,rear cover can open.
	5. Equipped with PTO.
	6. Equipped with vacuum pump.
	7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m.
	(2) Pumping speed : 45L/s.
	(3) Intake and exhaust diameter: 50mm.
	(4) Full tank pumping time ≤ 5min.
	(5) Sewage tank emptying time ≤ 4min.

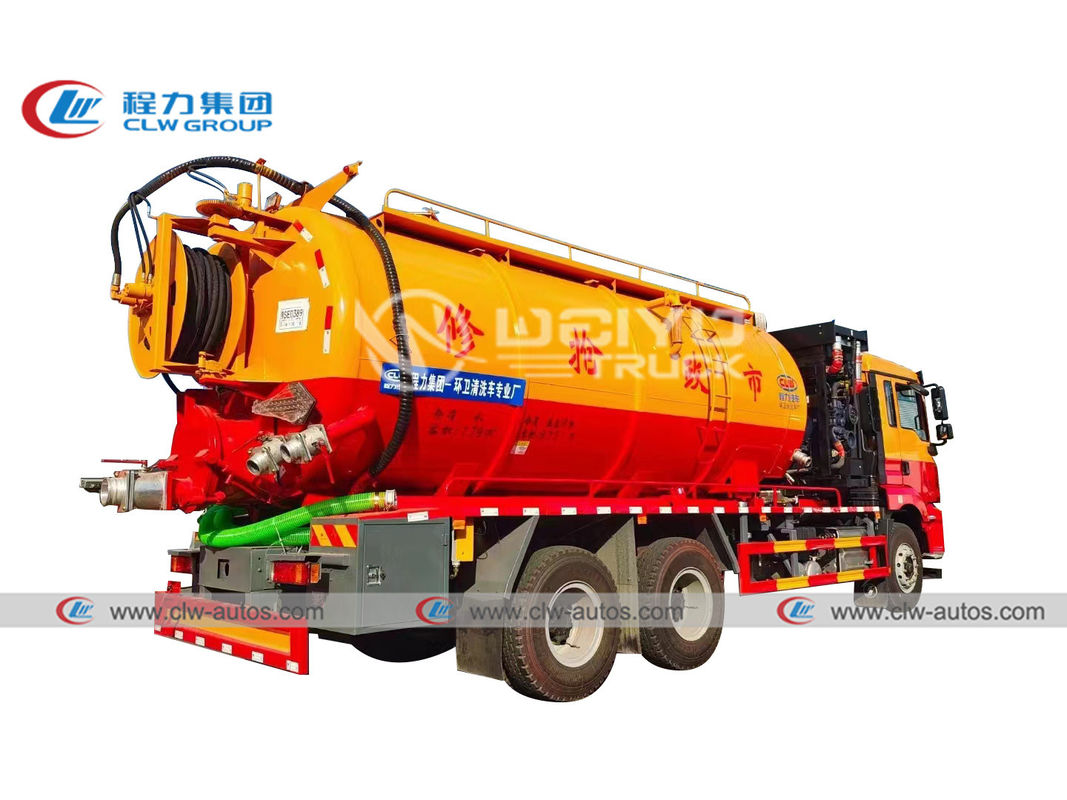

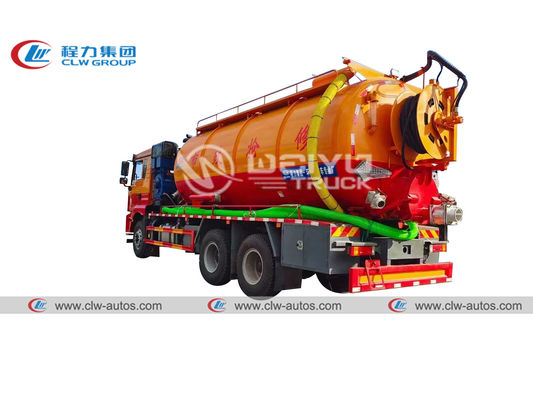

Detailed photos

Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks 0

Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks 1

Parts diagrams
