LPG 25 Ton 50CBM 3 Axle Tank Semi Trailer LPG Transport Propane Trailer Long Distance LPG Gas Transportation Trailer
LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
Product Description
-
Application : transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
-
Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
-
Suspension: German design heavy mechanical suspension or air bag.
-
LPG tanker: Heavy duty loading capacity, 50,000 liters, 50CBM.
-
Safety Control System: Safety Valve, Pressure Meter, Cut-off Valve and etc.
-
100% X-raying test
Feature of LPG trailer :
--lpg truck from 5cbm to 60cbm and from 2tons to 30tons.
--Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories:ROCHESTER level gauge,volume and mass flow meter(LC or Neptune brand),sun shelter,lpg pump,lpg dispenser machine,filling hose,
--Quick in and flange type liquid or vapour phase
--FUWA,L1,YORK,BPW axles
--Air bag suspension available
--Sun shelter available
| 49600 Liters LPG tank trailer |
| Volume (Liters) |
50000 |
| Curb Weight (kg) |
15300 |
| Loading capacity (kg) |
20832 |
| Overall Dimension (mm) |
12740*2480*3800
|
| Number of axles (mm) |
3 |
| Wheel Base (mm) |
6800+1310+1310 |
| Approach/Departure Angle (°) |
18/26 |
| Track Rear (mm) |
1840/1840/1840 |
| Front/Rear Overhang (mm) |
-/1450 |
| Number of springs(F/R) |
-7/7/7 |
| Maximum Axle-load (kg) |
-/24000 |
| Tire specification |
Triangle Tubeless 11.00R20
Aluminum Alloy Rim
|
| Tank material |
Q370R |
| Thickness (mm) |
12 |
| Endplate thickness |
14 |
| Tank Color |
White |
| Standard configuration |
13 tons of FUWA shaft, valve cover, single-fluid two-valve boxes, JOST legs, 2 inches (50mm) JOST traction pins, two sets of liquid level gauge (Automatic gauge in the front, Manual in the rear), pressure gauge, thermometer, emergency shut-off valve, anti-static grounding tape, fence , tire fenders |
| Others |
Filling medium:LPG(propane);designing pressure 1.77Mpa,designing temperature 50ºC,filling factor:0.42t/m3,corrosion margin:1mm;tank dimension:12351*2300mm |
| Standard |
GB150-1998 Steel Pressure Vessels,Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedures |

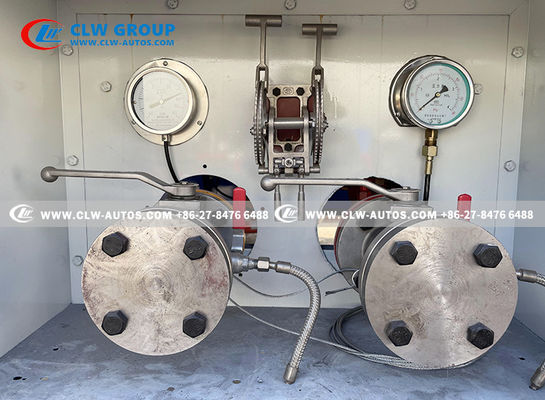

1. Toolbox and emergency manual shut-off control valve

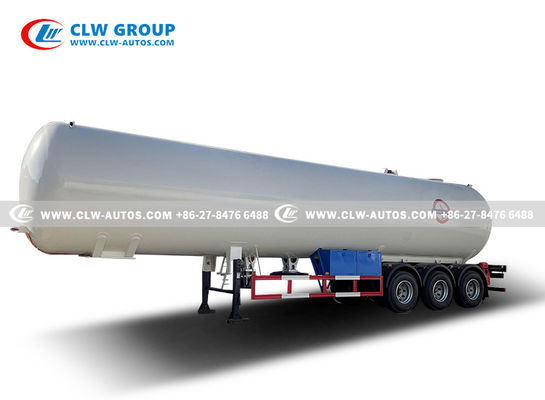

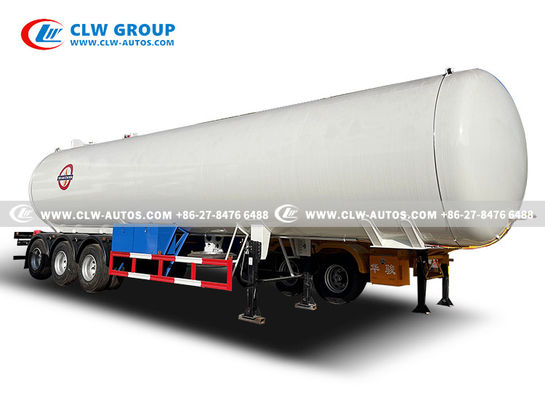

2.3-axis ellipsoid tank

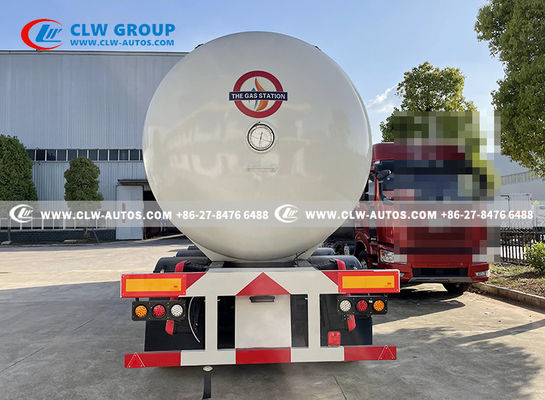

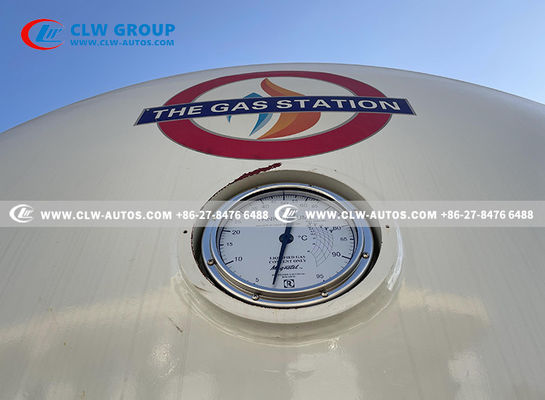

3. Spherical head with float level gauge
4. Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
