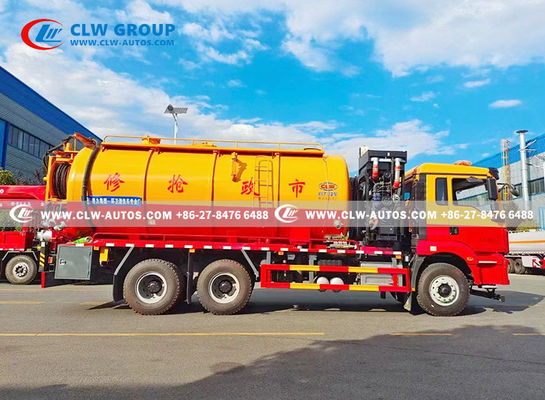

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

تصویر بزرگ : Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	ISO, CCC
شماره مدل:	CLW5167SQXWC

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	12520 usd/unit~22660 usd/unit
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند کامیون:	دانگ فنگ، شاکمن، سینوتروک هوو، CAMC، فاو، کامیون جت فاضلاب ISUZU	مدل رانندگی:	کامیون جت فاضلاب LHD، RHD
موتور:	کامیون جت فاضلاب موتور دیزلی	مواد:	کامیون جت فاضلاب از فولاد کربن Q235
اندازه تانکر:	کامیون جت فاضلاب 10000 لیتری 10 تنی 10 متر مکعبی 3000 گالن	ظرفیت بارگیری:	کامیون جت فاضلاب 5 تن 6 تن 8 تن 10 تن
ضخامت تانکر:	کامیون جت فاضلاب 5 یا 6 میلی متری	پمپ خلا:	پمپ چینی، BP، Jurop، کامیون جت فاضلاب مورو کایزر
عمق مکش:	کامیون جت 8 متری فاضلاب	فاصله مکش:	DN50 یا DN100 2 اینچ یا 4 اینچ کامیون جت فاضلاب
متوسط:	فاضلاب / لجن / مکش سپتیک کامیون جت فاضلاب
برجسته کردن:	18CBM Vacuum Sewer Truck,Q235 Sanitaion Vacuum Sewer Truck , Q235 Sanitaion Vacuum Sewer Truck

Factory price Shacman 290hp Vacuum high pressure Sewage Suction Truck

Sanitaion 18CBM Vacuum Sewer Waste Water Cleaning Truck High Pressure Sewage Suction Truck

Sewage System Advantage:

-Large volume sewage tank 7000L with High Pressure Design;
-3000L Wate with Side Installed Design Low Gravity Center;
-Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
-High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
-Hydraulic Arm for easier sewage hose handling;
-Remote control system.

Tanker material:

-Optional for carbon steel or stainless steel 304;-Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm

Hydraulic locking device
Openable back cover for unloading

60m long high pressure pipe

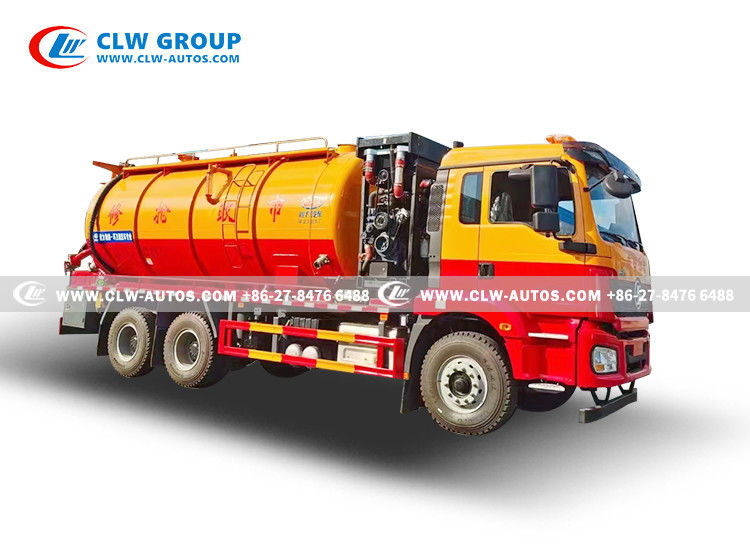

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 0

3-axle chassis
Large suction tank

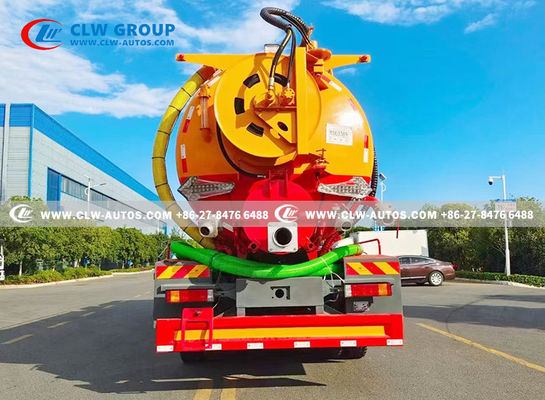

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 1

Main function: Cleaning city sewer, pipeline dredge, suction sewage

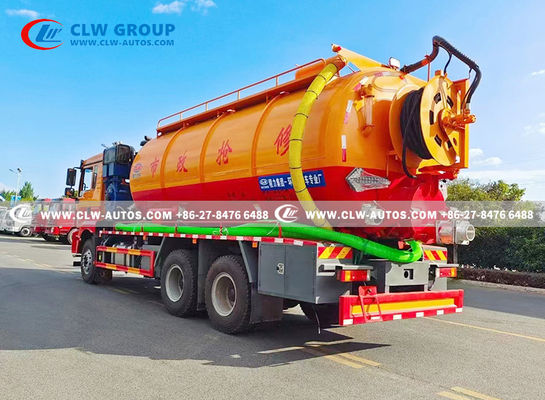

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 2

Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows

Specification

Vehicle Main Dimensions	Cab type	Single row half cab
	Overall dimension(LWH)(mm)	10450×2500×3800
	Wheelbase (mm)	4350+1350
	Axle number	2
	Drive type	6*4
	Steering type	LHD/RHD
	Max. Drive Speed (km/h)	95
	Curb weight (kg)	13000
Chassis parameter	Chassis brand	Shacman
	Transmission	Manual,5 forward and 1 reverse
	Brakes	air brake
	Tire	295/80R22.5
Engine parameter	Engine Brand	Cummins
	Fuel type	Diesel
	Horse Power(hp)	290 hp
	Emission Standard	Euro III/IV/V
Superstructure Parameter and main performance	Cleaning Tank volume(m3)	2
	Cleaning Tank material	5 mm good quality carbon steel; round shape
	Sewage tank volume(m3)	3.5
	Sewage tank material	5 mm good quality carbon steel
	Pump	Imported Italy high quality vacuum pump or chinese vacuum pump
	Standard configuration	60m long high pressure pipe, 10 unit high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,5m long suction pipe, etc
	Main performance	Suction time ≤ 5min, effective suction range ≥ 8m
	Main function	Cleaning city sewer, pipeline dredge, suction sewage,etc
	Optional	watering

Structure of a dongfeng vacuum sewage suction truck

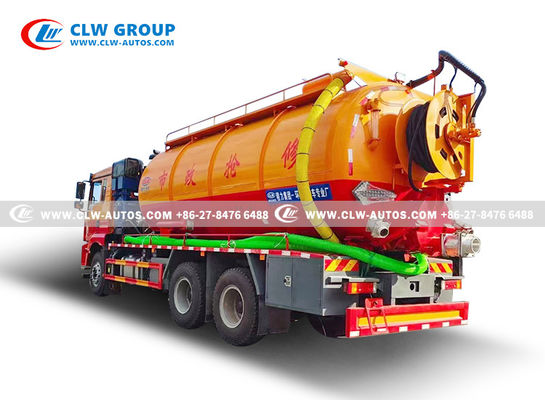

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 4

Why do you choose us for vacuum sewage suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive howo 290hp 18,000liters septic cleaning truck

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 5

Right hand drive FAW J5 10,000liters septic cleaning truck

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 6

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 7

Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 8

ISUZU FTR 10,000liters septic cleaning truck to Phillippines

Sanitaion 18CBM Vacuum Sewer Truck Wastewater Cleaning High Pressure 9

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
