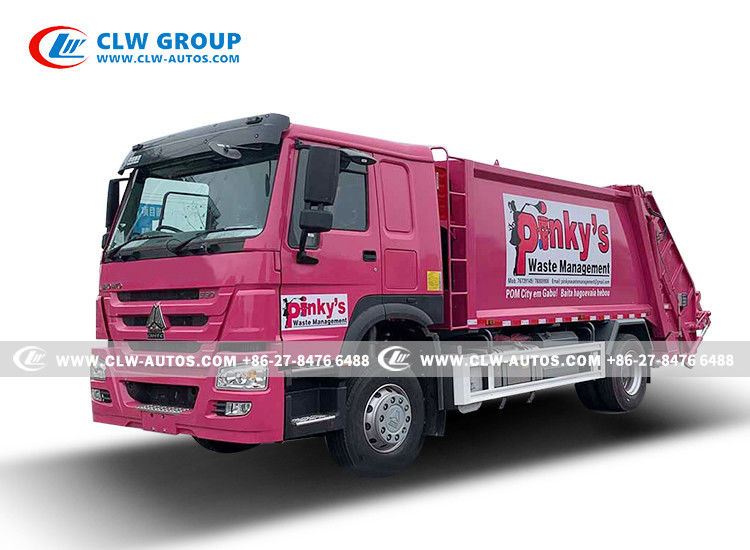

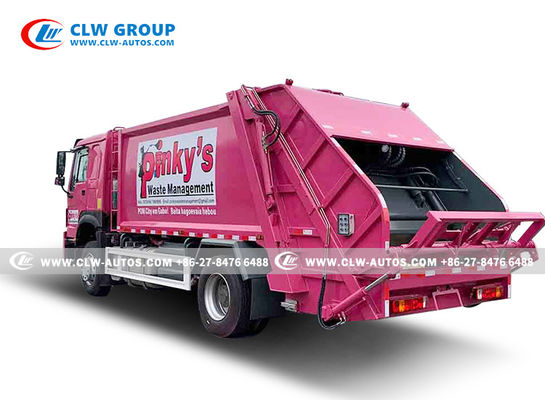

Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck

تصویر بزرگ : Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW5089CFD

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

کامیون فشرده سازی زباله:	15cbm، 15	قدرت:	210 اسب بخار
ابعاد مجموعه ژنراتور:	8,980×2,550×3,350 (mm)	زمان تحویل:	45 روز کاری
گارانتی:	1 سال	GVW:	18،000 کیلوگرم
نسبت فشرده سازی:	2~2.5:1	فشار هیدرولیکی:	18 مگاپیکسل
مخزن سوخت:	400 لیتر	مشخصات تایر:	لاستیک های تیوبلس 295/80R22.5
استاندارد انتشار:	یورو 4	زمان چرخه بارگذاری:	بیش از 25 ثانیه نیست
برجسته کردن:	Garbage Compactor Truck 14cbm,Sinotruk HOWO Sanitation Garbage Compactor Truck , Sinotruk HOWO Sanitation Garbage Compactor Truck

Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck

Product descriptions:

1. HOWO chassis with high quality and good reputation
2. WEICHAI 190HP diesel engine match with fast 8-speed gearbox
3. 14cbm tank volum with side 4mm, bottom 5mm Carbon Steel-Q345 tank material
4. 3.9 T /8.5T front and rear axle, good load-bearing performance
5. Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
6. Bottom box and filler are made of thickened steel plate
7. Garbage Compact Ratio is up to 0.75tonnes/cbm

Product advantages:

Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
It is equipped with computer control system for loading and unloading operations.
One Person operate that can reduce sanitation working time and greatly improves the working environment.
It install computer control system and manual operation system in order to improve the vehicle using rate.

14 cbm Garbage Compactor Truck
Overall Dimension	890025503300mm	Gross Vehicle Weight		18000 kg
Curb Weight	11000kg	Loading Weight		7950kg
Wheel Base	4700 mm	Front / Rear Axle		6500/11500kg
Cabin	Right Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio
Engine model	Dissel
Engine horsepower	190HP, EURO4
Max Driving Speed	90 km/h
Gear Box	8 Forward Gear, 1 Reverse Gear,
Tire	11.00R20(6 pieces with one spare)
Garbage Bin	Capacity		14CBM
	Material		4mm Carbon Steel for Garbage Bin Body
	Design		Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	0.75
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with high quality dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

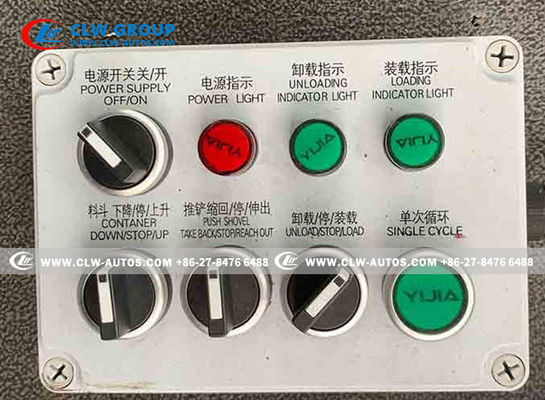

1. Cab operation panel for rear loading system

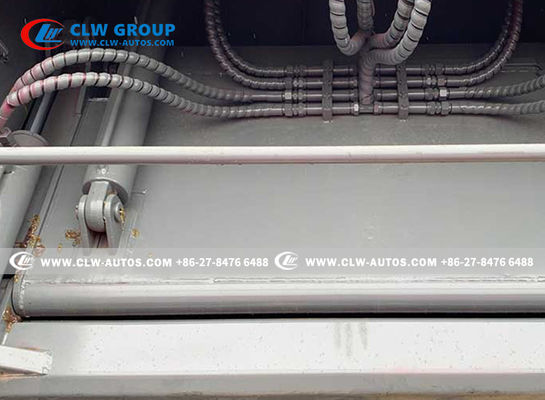

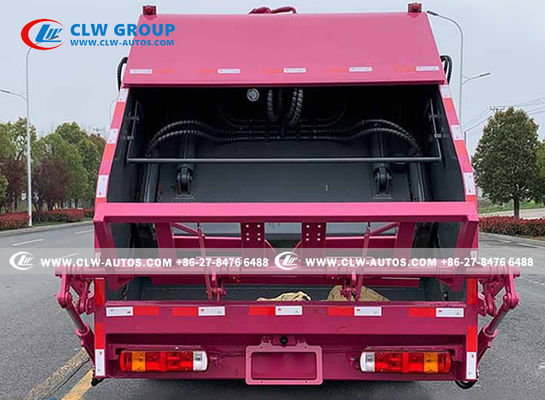

2.Hydraulic scraper operation feeding system

Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck 1

3.Large space cab, multi-function adjustable seat

Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck 2

Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck 3

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
