Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

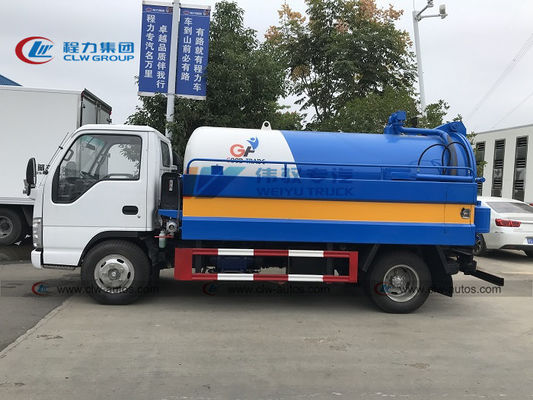

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

تصویر بزرگ :  Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC,ISO,BV,SGS
Model Number: CLW5422W

پرداخت:

مقدار حداقل تعداد سفارش: واحد
قیمت: negotiable
جزئیات بسته بندی: کشتی فله ، RO-RO ، کانتینر
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند شاسی: دانگ فنگ، فوتون، سینوتروک HOWO، ایسوزو و غیره Drive Model: RHD&LHD
پایه: 3360 میلی متر نیروی موتور: 130 اسب بخار
Water Tank Capacity: 2cbm 2m3 2cubic Meter 2000liters 2ton Sewage Tank Capacity: 3cbm 3m3 3cubic Meter 3000liters 3ton
ماده مخزن: فولاد کربن 6 میلی متر پمپ خلا: برند بین المللی معروف
Fecal Suction Pipe: 7m زمان مکش: نه بیشتر از 5 دقیقه
Effective Suction Range: No Less Than 7m لوگو و الگو: به عنوان درخواست مشتری
گارانتی: 1 سال
برجسته کردن:

ISUZU Sewer Dredging And Cleaning Truck,3m3 Septic Tank Vacuum Suction Truck,Sewer Dredging And Cleaning Truck

,

3m3 Septic Tank Vacuum Suction Truck

,

Sewer Dredging And Cleaning Truck

Mini ISUZU 2m3 Water Tank 3m3 Septic Tank Sewer Dredging and Cleaning truck


Product description

  • The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
  • Tank material: high-quality carbon steel plate, 6mm thick,
  • Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
  • The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
  • Optional vacuum pump


Specification



Vehicle Main Dimensions Cab type Single row cab
Overall dimension(L*W*H)(mm) 5900×1800×2160
Wheelbase (mm) 3360
Axle number 2
Drive type 4*2
Steering type LHD/RHD
Max. Drive Speed (km/h) 105
Curb weight (kg) 2070
Chassis parameter Chassis brand ISUZU
Transmission Manual, 6forward and 1 reverse
Brakes air brake
Tire 7.00R16 Steel tire
Engine parameter Engine Brand ISUZU
Fuel type Diesel
Horse Power(hp) 130hp
Emission Standard Euro3
Superstructure Parameter and main performance Sewage tank volume 3000liters/3cbm
Sewage tank material 6 mm good quality carbon steel
Vacuum Pump Imported Italy high quality vacuum pump or chinese vacuum pump SK-12
Water tank volume 2000liters/2cbm
High pressure pump Flow meter: 215L/min
Standard configuration 60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc
Main performance Suction time ≤ 5min
Effective suction range ≥ 9m
Main function Cleaning city sewer, pipeline dredge, suction sewage,etc
Optional watering




Main Structure
Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 0

Working Scene
Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 1



Factory overview

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 2

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 3



Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ


Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
