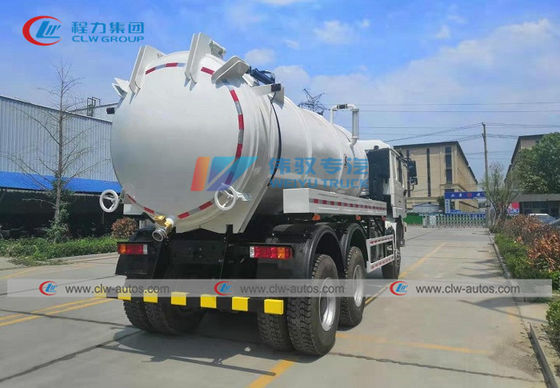

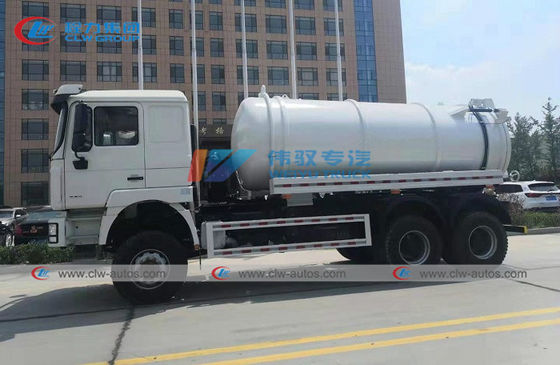

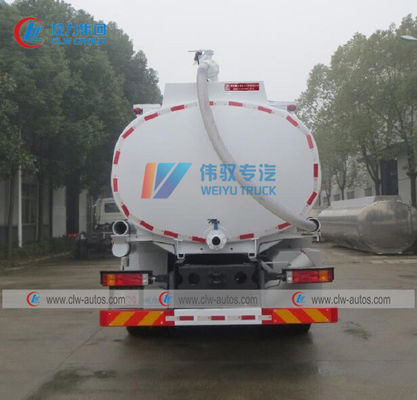

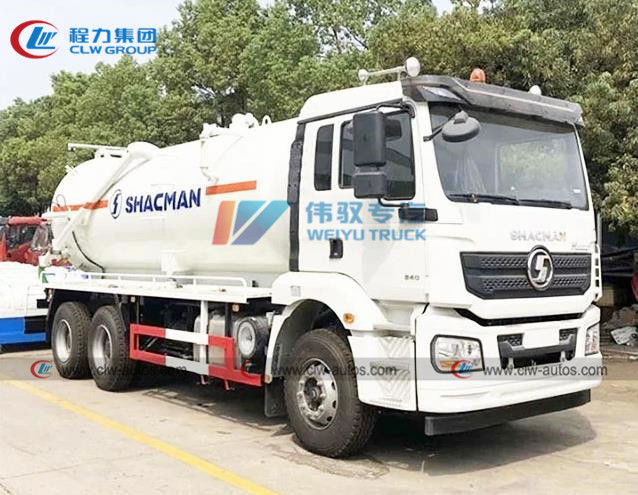

Shacman Large Capacity 16m3 Vacuum Sewage Truck Sewer Dredging Truck 270HP 6*4

تصویر بزرگ : Shacman Large Capacity 16m3 Vacuum Sewage Truck Sewer Dredging Truck 270HP 6*4

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	BV, SGS, CCC
Model Number:	CLW517TEYS

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، سینوتروک HOWO، ایسوزو و غیره	Drive Model:	RHD&LHD
پایه:	4325+1350 میلی متر	نیروی موتور:	270 اسب بخار
Tank Capacity:	16cbm 16m3 16cubic Meter 16000liters	ماده مخزن:	فولاد کربن 6 میلی متر
پمپ خلا:	برند بین المللی معروف	لوله مکش فاضلاب:	8 متر
زمان مکش:	نه بیشتر از 5 دقیقه	مکش موثر:	نه کمتر از 8 متر
لوگو و الگو:	سفارشی	گارانتی:	1 سال
برجسته کردن:	6x4 Vacuum Sewage Truck,Shacman 16m3 Vacuum Sewage Truck,Sewer Dredging Truck 270HP , Shacman 16m3 Vacuum Sewage Truck , Sewer Dredging Truck 270HP

**Shacman Large Capacity 16m3 270HP 6*4 Vacuum Sewage Truck Sewer Dredging Truck**

Product Description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 8mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Items	Descriptions	Specifications and Types
General	Truck Name	Sewage suction truck
	Drive Type	6*4
	Curb Weight (kg)	9400
	Loading Weight (kg)	15600
	Overall Dimensions LWH(mm)	9271×2490×3121
	Engine Brand	WEICHAI WP10.270N
	Fuel Type	Diesel
	Power	199kw/270 HP
	Emission Standard	Euro3
	Displacement(ml)	9726
Chassis	Chassis Brand	Shacman
	Front/Rear Axle Load(KG)	7000/18000
	Tire No.	10+1 spare
	Tire Specification	11.00-20 18PR,Nylon tire
	Wheelbase (mm)	4325+1350
	Axle No.	3
	Steering Wheel	Left / Right hand drive with power-assisted
	Brake	Oil brake
	Radiator	Suitable for tropical climate
Sucking System	Sewage tank Volume(L)	16,000
	Tank shape	Round
	Tank Material	8mm thick carbon steel
	Pump	Vacuum
	Pump Introduction	Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
	Suction Depth(m)	More than 6 meter
	Tank Tipping angle(°)	More than 45
	Rear door	Open and closed by hydraulic cylinders
Other	Electric system	24V
Other	Equipment	A tool box

Main Structure

Our factory

Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
