Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck

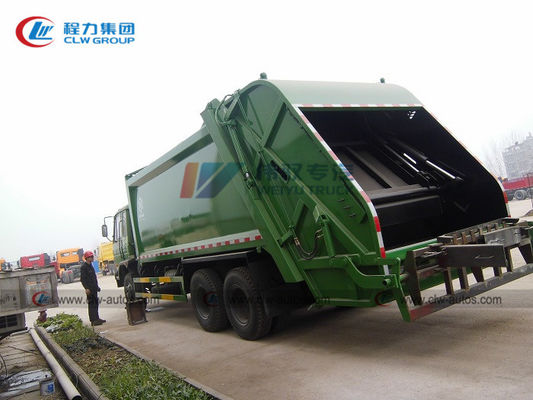

تصویر بزرگ : Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
Model Number:	CLW20210903

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
Delivery Time:	30-35 days after receiving the deposit
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Product name:	Garbage compactor Truck, Compressed Waste Refuse Compactor Trucks	Drive Type:	6X4 10WHEELS Rear Load Refuse Truck
مدل محرک:	LHD&RHD	Loading capacity:	12tons, 14tons, 16tons, 12T, 14T.16T
برند کامیون:	اختیاری	Tuck type:	Waste collection truck
Other equipment:	with hyraulic systerm	وضعیت:	اختیاری
نوع سوخت:	دیزل	After-sales service provided:	Overseas third-party support available,Online support,Video technical support,Free spare parts
نوع انتقال:	دستی	Emission standard:	Euro 2,Euro3,Euro 4
Truck type:	Garbage Compressor, Garbage Compactor	نیروی موتور:	210-260 اسب بخار
Name:	new refuse compactor trucks,garbage compactor recycling truck	رنگ:	سفارشی
برجسته کردن:	Dongfeng Brand Garbage Disposal Truck,Large Capacity Garbage Disposal Truck , Large Capacity Garbage Disposal Truck

Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck

Product Features

Widely used, support customized
Heavy load, simple operation
Plate thickening, fully function
High-quality Q345 manganese steel of WISCO, with four sides and four bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.

Truck Chassis Specification
Chassis model		EQ1166GJ5
Cab		Dongfeng half row cab
Driving Type		6*4 LHD
Max Speed (km/h)		90
Overall dimension(mm)		9360×2462×2710
GVW( kg)		16000
Mass in working order ( kg)		9500
Wheelbase(mm)		4350+1300
F/R overhang (mm)		1245/2465
Approach/Departure Angel		32/14
Tire		10.00R20,11.00R20
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		5-speed
Enging	Model	EQB210-20 Cummins
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)	5880
Braking system	Service Brake	Compressed air brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /4(mm) rear
Dirty tank volume		18cbm/18000Liters/18M3/15tons
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Our Factory

Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck 0

Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck 1

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
