Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck

تصویر بزرگ : Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
Model Number:	CLW5417HS

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مدل رانندگی:	LHD&RHD	برند شاسی:	کامیون زباله HOWO، Dongfeng، Foton، Shacman، Isuzu Compactor
نوع سوخت:	کامیون زباله موتور دیزلی	مواد:	فولاد
Volume:	7m3, 7000liters, 7cbm, 4tonns,4mt	خدمات پس از فروش ارائه شده است:	پشتیبانی شخص ثالث در خارج از کشور در دسترس است، پشتیبانی آنلاین، پشتیبانی فنی ویدیویی، قطعات یدکی را
نوع کامیون:	رول بازیافت لودر عقب کمپکتور، کمپرسور زباله، کمپرسور زباله	نام:	کامیون کمپکتور زباله، کامیون کمپرس زباله جدید، کامیون کمپرس زباله برای فروش، کامیون بازیافت کمپرس زب
Loading Capacity:	3tons, 4tons, 5tons, 3t, 4t, 5t	پایه چرخ:	3380
برجسته کردن:	7cbm Rubbish Removal Truck,6 Wheel Rubbish Removal Truck,7m3 Rubbish Removal Truck , 6 Wheel Rubbish Removal Truck , 7m3 Rubbish Removal Truck

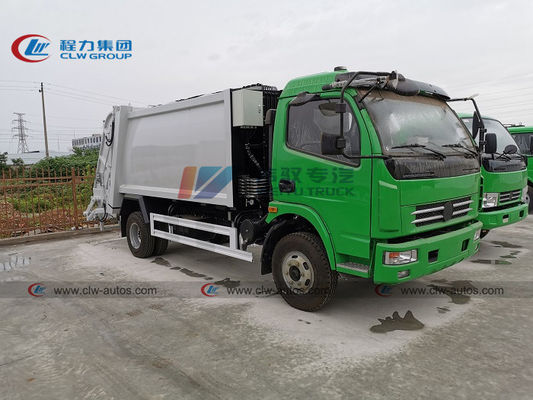

Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck

Product Description

Widely used, support customized
Heavy load , simple operation
Plate thickening , fully function
High-quality Q345 manganese steel of WISCO, with three sides and four bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.

Specification of 7cbm 6 Wheel Compressed Garbage Truck

Specification of Truck Chassis
Driving Model	6X4
Cab	Dongfeng cabin,left/Right hand drive, single row,2~3 passengers, with air conditioner
Wheel Base	3380mm
Loading Weight	6300kg
Curb Weight	2750kg
Axle Loading (front/rear)	3620/5430 kg
External Dimensions (L x W x H)	6815×2030×2350mm
Overhang (front/rear)	1115/1900mm
Wheel track (front/rear)	1670 /1586mm
Approach/Departure angle	20°/ 16°
Max. driving speed	99 km/h
Engine	Model	YUNNEI engine,YN38PE-2
	Type	6-cylinders in a line, turbo-charging and inter-cooling
	Horse Power	122Hp
	Emission standard	Euro3
	Displacement	3760ml
Gearbox	Manual type,8 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	8.25R16 14PR, 6 pieces with 1 spare tire.

Garbage Truck Body
Tanker body material	Quality high tensile Q345 carbon steel
Shape	rectangular box, arc-shaped rear
Thickness	Side 3mm, Bottom 4mm
Garbage Container Size	7 CBM,7000liters
Max. Loading Capacity	70~80 Barrel (240L)
Pressing system
Pressure	16Mpa
Compaction ratio	1.2:1
Loading cycle	25-30 second
Unloading cycle	15-20 second
pressing mechanism	The giving plate and hinge related pressing plate moving on two directing bars
Pressing mode	Automatic pressing
Control of pressing	Control from the external panel on the bunker

Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck 0

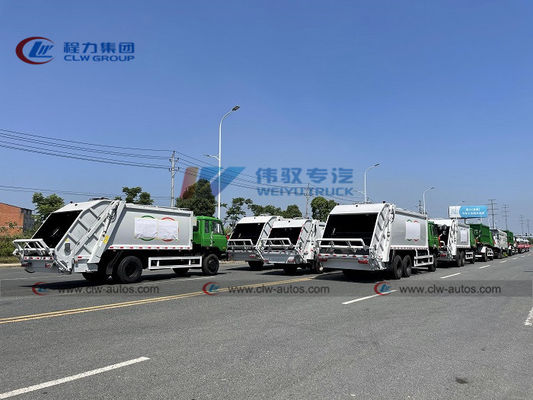

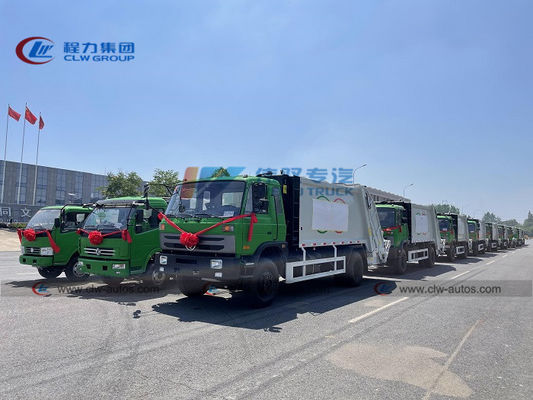

Euro3 7cbm/7m3 Rubbish Removal Truck 6 Wheel Compressed Garbage Truck 1

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty of garbage truck?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
