DN2100mm/2200mm Diameter LPG Refilling Plant 25cbm 25000liters

تصویر بزرگ : DN2100mm/2200mm Diameter LPG Refilling Plant 25cbm 25000liters

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
Model Number:	CLW419HZ

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	Negotiated
Packaging Details:	Naked or Waxed before delivery
Delivery Time:	40-45 days after receiving the deposit
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Tank Material:	Q345r or Q370r Carbon steel for pressure vessel	Loading Capacity:	15t 10ton 20tons 15mt LPG Refilling Plant station
Tank Size:	25 m3, 25cbm, 25000 liters, 25000L	فشار طراحی:	1.71MPa 1.77MPa 17.1bar، 17.7bar
فشار تست هیدرولیک:	2.21MPa 22.1bar	Filling Medium:	Propane, Butane, LPG, Cooking Gas
Level Gauge:	Magnetic Plate Level Gaue, Float-Ball Rochestor	Diameter:	2100mm, 2200mm
Other Accessories:	2 sets LPG Pump & Motor, LPG compressor	Filling Parts:	LPG filling weight scale, LPG dispenser with one or Double nozzlers
Production name:	LPG Skid Station, Refilling Cylinder Filling	مارک پمپ:	کورکن، بلکمر، برند چینی
Others:	Water cooling system, Emergency shut off valves
برجسته کردن:	2200mm Diameter LPG Refilling Plant,25cbm LPG Refilling Plant , 25cbm LPG Refilling Plant

DN2100mm/2200mm Diameter 25cbm/25000liters LPG Refilling Plant For Sale

Product Description

2 sets of 5.5 kw lpg pumps and motors(two can work together or work as a spare)
SONCAP certificate offered, no worry for custom clearance;
gas leakage detector with English panel
Fire extinguisher for each station
ex-proof lamp
Lockable filling room with rolling off door to protect your filling equipment.
Safest pipeline system with pipeline safety valves and non-return valves
Shock proof discharging pipeline: to protect pump lifetime
Strainer valve: to avoid impurity into pump and lengthen pump lifetime

Product Specification;

Specification of 25000L lpg refilling plant
Volume of Tank	25CBM(25,000liters)
Filling weight(Kg)	9975
Thickness of Shell (mm)	12mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	2100mm
Tank Dimensions (mm) (length x width x height)	7594X2124X2714mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

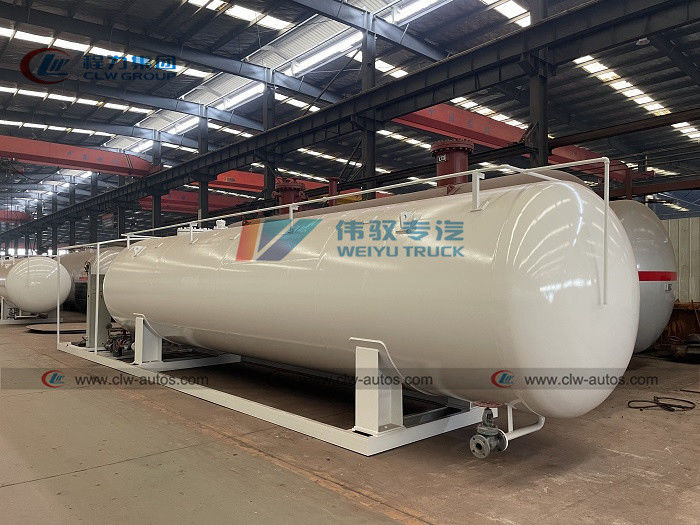

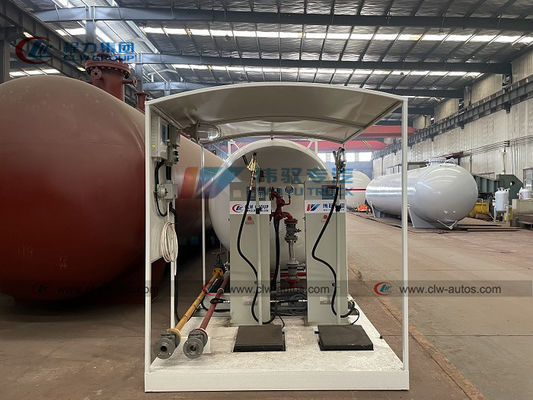

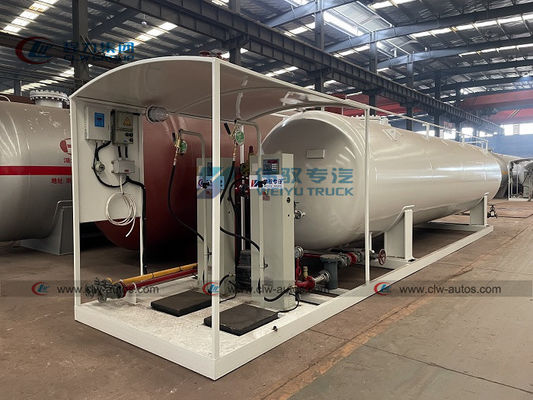

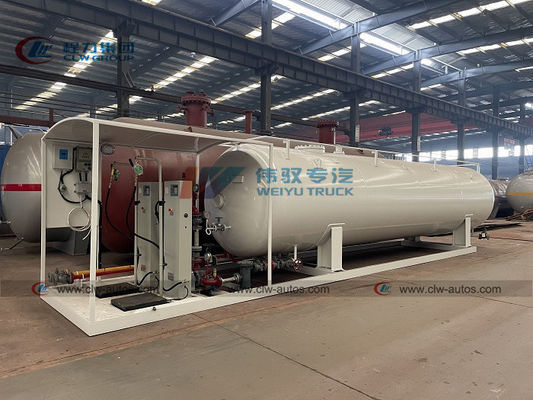

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
