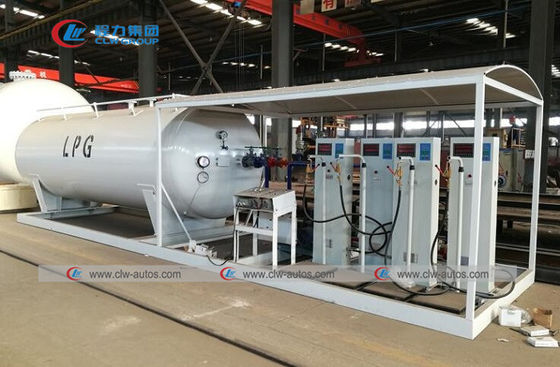

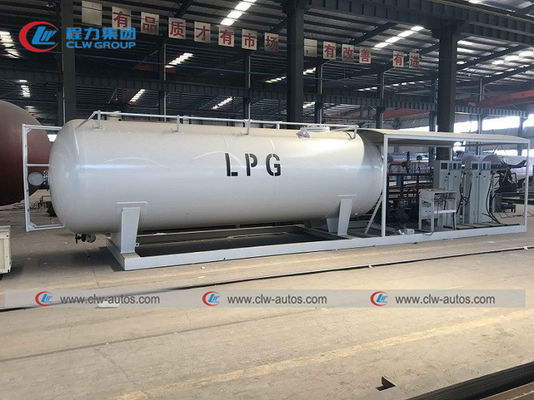

GB-150 Skid Mounted 15cbm LPG Skid Station Head 12mm DN1800mm Diameter

تصویر بزرگ : GB-150 Skid Mounted 15cbm LPG Skid Station Head 12mm DN1800mm Diameter

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
Model Number:	CLW155YRH

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه توسط کانتینر ارسال می شود
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Tanker Volume:	15CBM/15000Liters/15000L or as customized	ماده مخزن:	Q345R/SA516
مواد بارگیری:	پروپان / گاز مایع / LPG / گاز پخت و پز	فشار طراحی:	1.77MPa
ضخامت پوسته و صفحه انتهایی:	10 میلی متر یا 12 میلی متر	Loading capcity:	5tons,10tons,5mt,10t,10mt
وضعیت:	جدید	ابعاد:	با توجه به نقاشی
خدمات پس از فروش ارائه شده است:	مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور، خدمات نگهداری و تعمیرات میدانی	تابع:	پر کردن سیلندر، پر کردن خودرو
رنگ:	اختیاری، مشتریان، خاکستری نقره ای، سفید / سبز / قرمز، سفید یا نیازهای مشتری
برجسته کردن:	15cbm LPG Skid Station Head,12mm LPG Skid Station Head , 12mm LPG Skid Station Head

GB-150 Skid Mounted 15cbm LPG Skid Station Head 12mm DN1800mm Diameter

Product description:

2 sets of 5.5 kw lpg pumps and motors(two can work together or work as a spare)
SONCAP certificate offered, no worry for custom clearance;
gas leakage detector with English panel
Fire extinguisher for each station
ex-proof lamp
Lockable filling room with rolling off door to protect your filling equipment.
pipeline safety valves and non-return valves
Shock proof discharging pipeline : to protect pump lifetime
Strainer valve : avoid impurity into pump and lengthen pump lifetime

Technical parameter

15CBM LPG TANK DIMENSIONS
Volume of Tank		15CBM
Filling Weight		5985 kg
Tank Weight		3920 kg
Thickness of Shell (mm)		10 mm
Thickness of Endplate (mm)		12 mm
Tank Diameter (mm)		1800 mm
External Dimensions (mm) (length x width x height)		6224x 1820 x 2410mm
Overall Skid Size		As designed
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Test Pressure		2.22 Mpa
Corrosion Allowance		1 mm
Medium Density		420-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification/ mm		Quantity
Discharge Pipe	DN50-2"		1
Inflow Pipe	DN50-2"		1
Outlet	DN50-2"		1
Gas phase balance pipes	DN50-2"		1
Manhole	DN450		1
Drain Hole	DN50-2"		1
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

LPG Skid Part list
Item	Model Number	Quantity
LPG Tanker	LPG Storage Tank with tank accessories	1 piece

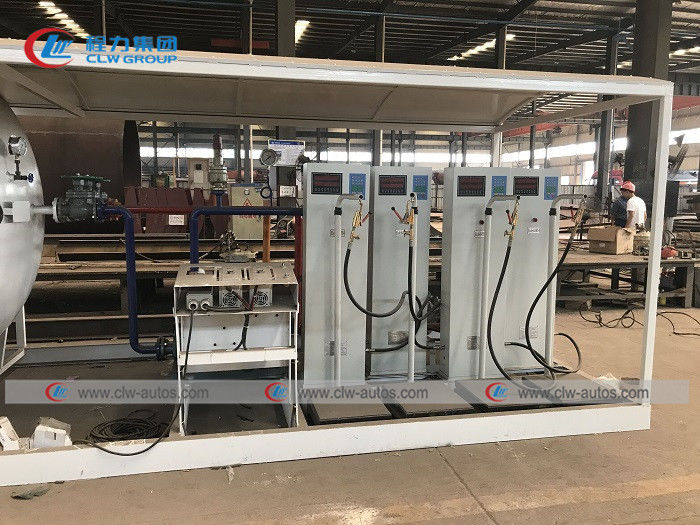

LPG Filling Pump	2" inlet& outlet, 5.5KW, 380V/50Hz, Ex-proof,	2 Piece
Cylinder Filling Scale	Can fill 3kg to 150kg LPG cylinder	2 Piece
Leakage Detector	Leakage warning detector	1 Unit
Pipes	/	1 sets
Cut-off Valve	J41N-40 DN50	5 Pieces
Ball Vavle	DN50	8 Piece
Safety Valve	A42F-25 DN50	1 Piece
Pipe Safety Valve	A21F-25 DN15	1 Piece
Ball floating level gauge	UQZ-2.5P	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Flange	2.5MPaDN15	20 Pieces
Pressure Gauge	0 ~4Mpa	1 Piece
LPG Tank	LPG Storage Tank with tank accessories	1 piece

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
