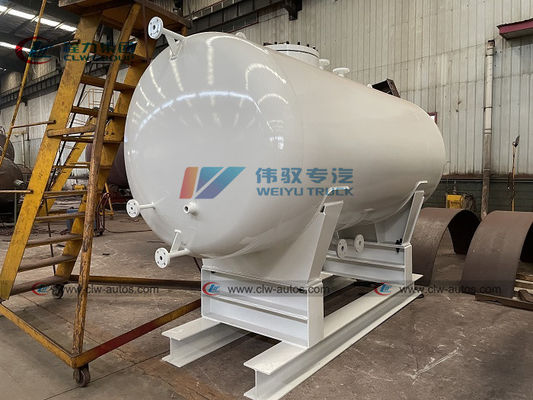

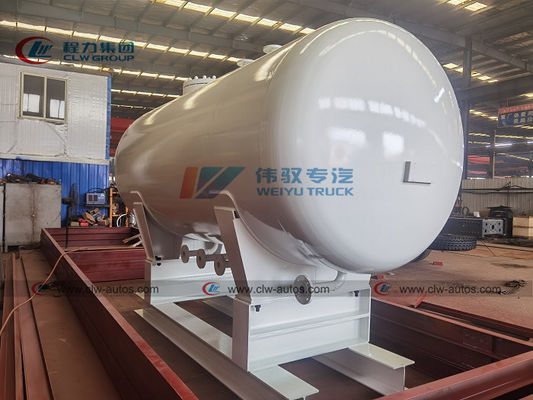

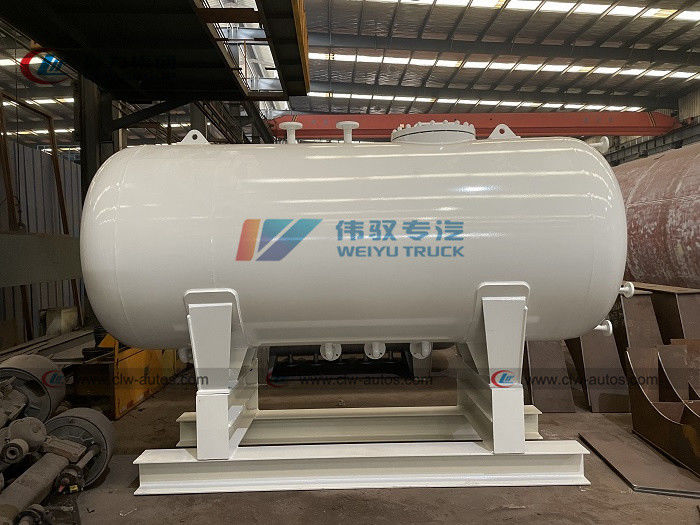

ASME Mini LPG Propane Butane Pressure Vessel 5000 Liters 5m3

تصویر بزرگ : ASME Mini LPG Propane Butane Pressure Vessel 5000 Liters 5m3

جزئیات محصول:

Place of Origin:	SUIZHOU, HUBEI
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
Model Number:	CLW52YEH6

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	Negotiated
Packaging Details:	Naked or Waxed before delivery
Delivery Time:	25-20 days after receiving the deposit
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Tank Material:	Q345R Q370R Q420R Carbon steel for pressure vessel	Loading Capacity:	2TONS, 5TON, 10 TONS, 20 TONS ETC.
Tank Size:	5m3, 5cbm, 5000liters, 5000L	فشار طراحی:	1.71MPa 1.77MPa 17.1bar، 17.7bar
فشار تست هیدرولیک:	2.21MPa 22.1bar	Filling Medium:	Propane, Butane, LPG, Cooking Gas
Level Gauge:	Magnetic Plate Level Gaue, Float-Ball, Rotor Level Gauge	قطر:	1600 میلی متر
TONS:	5000L, 5cbm, 5000liters, 5m3	رنگ:	سفارشی
برجسته کردن:	LPG Propane Butane Pressure Vessel,5m3 LPG Propane Butane Pressure Vessel , 5m3 LPG Propane Butane Pressure Vessel

ASME 5000 Liters/5m3 Mini LPG Propane Butane Pressure Vessel

Product Description

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

4. LPG storage tank capacity: 5-200m3 (Customized)

5. LPG storage tank material: Q345R Q370R SA516 SA517

6. Corrosion Resistance Painting: 2 Times

7. Surface Painting: 1 Time (color is customized)

Technique Parameter for 5000 Liters 5m3 lpg storage tank

Item No.	Parameters
Volume of Tank (cbm)	5
Tare Weight (kg)	2030kg
Filling Capacity (kg)	1995 kg
Thickness of Shell (mm)	10
Thickness of Endplate (mm)	10
tank cylinder diameter (mm)	1600
External Dimensions (mm) (length×width×height)	307016202210
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

Accessory list for 5,000l lpg storage tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN80	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-80	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN80	Cut-off Valve for Liquid Inlet	J41N-2.5-80	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
