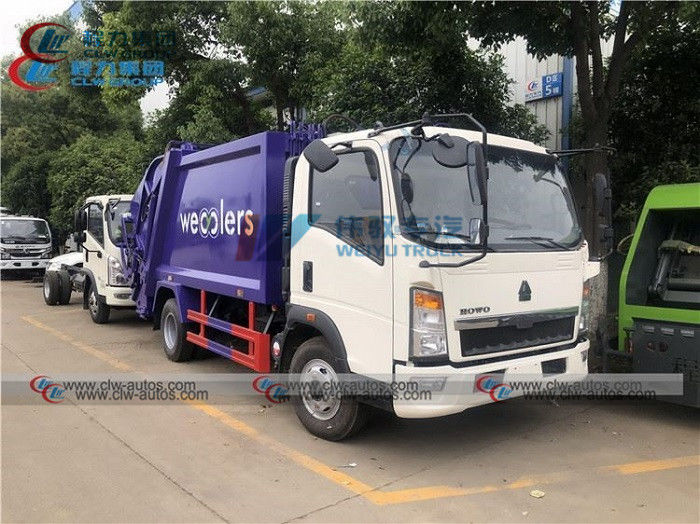

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck

تصویر بزرگ : HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,DOT,E-Mark, GCC
Model Number:	CLW5718

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

ماده جعبه:	کربن فولاد Q235B	Truck Brand:	SINOTRUK HOWO, DONGFENG, FAW, FOTON, ISUZU
حجم مخزن:	5CBM/5000 لیتر	موتور کامیون:	سفارشی
جعبه دنده:	سریع 8 جلو و 1 عقب	Tire:	7.00R16(6 pieces with one spare)
Axle:	5Ton Front Axle & 10Ton*2 Rear Axle	نوع کامیون زباله:	متراکم کننده
رنگ:	سفارشی
برجسته کردن:	5m3 Garbage Compactor Truck,3tons Garbage Compactor Truck , 3tons Garbage Compactor Truck

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck

Product Description

Widely used; support customized
Heavy load; simple operation
Plate thickening; fully function
Garbage Box is designed rust resistance & easy to clean, can take High Temperature & Humdity.

Product Specifictions

ITEM	UNIT	PARAMETER
Vehicle		HOWO 4X2 Garbage compactor truck
Overall dimensions	mm	7000×2280×2680
Tank volume	m3	5
GVW	kg	7360
Curb weight		5400
Payload		1830
Wheel base	mm	3360/3800
Suspension		1250/2610
F/R track base		1940/1860
Cabin		Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Max speed	km/h	90
Front / Rear Axle	kg	5000 / 10000
Tire specification	7.00R16 (6 pieces with one spare)	Number of axles	2
Engine horsepower	116HP, EURO III	Diesel, 6 Cylinder, direct line, water cooling
Ways of Loading		Rear Loading with optional Bucket Lifting System
Steering	Power	Garbage Compact Ratio		1/3 - 1/4
Cab passenger	2	Electric System		24V
Tank material		Carbon steel
Standard configuration	1. Hydraulic system powered by trucks chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 120L, 240L. 3. Body sides and roof built from high tensile sheets thickness 5mm. 4. Box platform built with high tensile sheets thickness 4 mm, hopper floor built with high tensile sheets thickness 5 mm. 5. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint

Reference photos

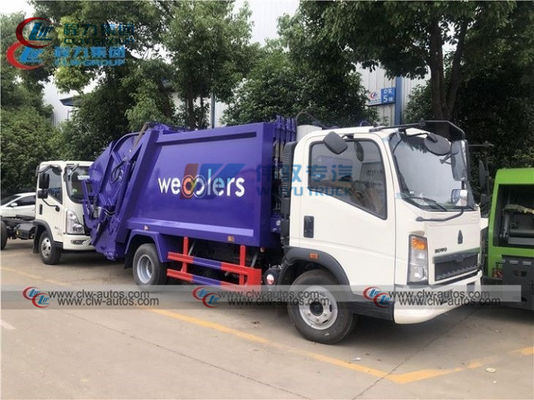

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 0

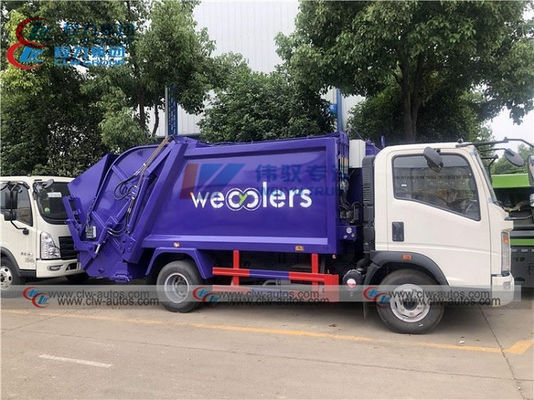

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 1

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 2

Truck diagram

Main parts

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 4

Factory overview

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 5

HOWO 5m3 Sanitation Self- Compressed 3tons Garbage Compactor Truck 6

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
