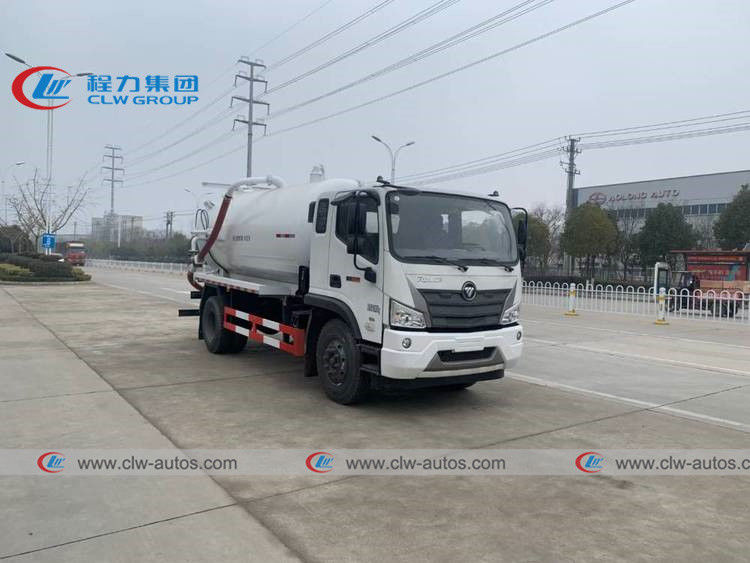

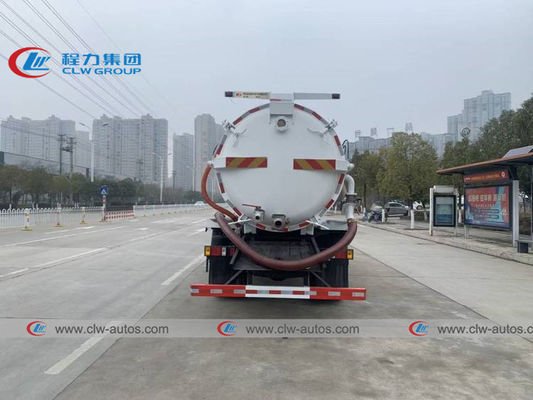

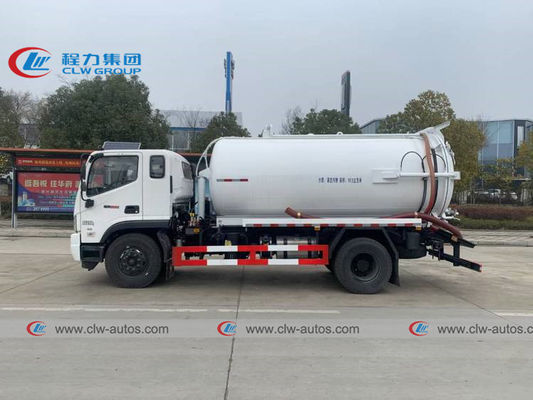

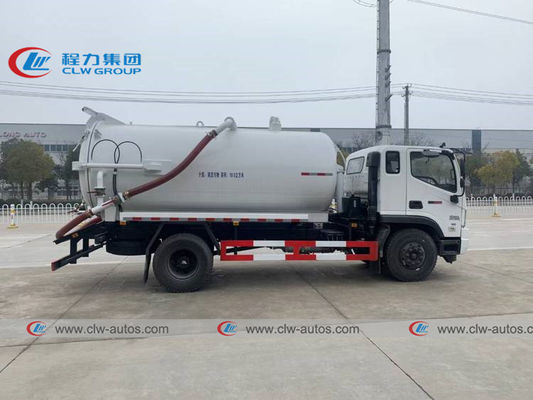

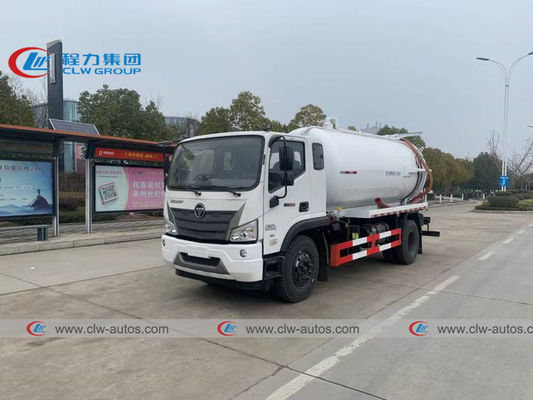

CHENGLI 4X2 Dongfeng Vacuum fecal Suction cleaning Truck With 10cbm-12cbm Tank
Description
1. Drive type:
2. Optional Chassis Brands:
- DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body:From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions:
- Equipped with PTO
- transmission shaft
- vacuum suction sewage pump
- high pressure molding tank
- moisture separator, gas-oil separation
- multiple directional control valve & self-discharging valve
- hanger rod
- suck fecal gun and pipe network system.
Specification
| Cabin |
Driving type 4x2, single row |
| Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
7480×2180×3265 |
| Wheel base (mm) |
4200 |
| Wheel track (front/rear) (mm) |
1640/1740 |
| Approach/Departure angle(°) |
21/12 |
| Weight in KGS |
Tare Weight |
3360 |
| payload |
8700 |
| Front axles loading capacity |
3600 |
| Rear axles loading capacity |
6400 |
| Max. driving speed(km/h) |
89 |
| Engine |
Brand |
Cummins |
| Horse Power(HP) |
140HP |
| Emission standard |
Euro IV |
| Gearbox |
6 forwards & 1 reverse |
| Steering |
Left hand drive |
| Tire |
9.00R20, 6 tires with one spare |
| Sewage Tank |
| Tank volume |
10000Liters |
| Tank material |
6mm carbon steel Q235 |
| Tank size |
5000x1800mm |
| Vacuum Pump |
Chinese Vacuum Pump or Italy Vacuum Pump |
| Sewage suction pipe |
8M |
| Main Performance |
Suction time ≤ 5min,
effective suction range ≥ 8m |
| Other equipment |
Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve |
| Painting |
Customized painting color and logo as required. |
Main Structure
Working Scene
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
More than 10 years' experience as a manufacturer
CCC, ISO, BV, ASME certification
Perfect after-sale service
Trucks covering more than 50 countries and regions
800 kinds of trucks and trailers
100 Senior welder and 15 senior engineers
Good cooperation with 30% regular customers
Annual production value topped 240,000,000 US dollars per year
Other trucks we can supply
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
