Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck

تصویر بزرگ : Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,
Model Number:	CLW508LJC

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، T/T، D/P، D/A، Western Union،، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Brand:	FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW	Function:	Garbage compactor, waste removal
مواد:	کربن فولاد Q235B	Thickness:	Side 4 mm and Bottom 5mm
Tank volume:	14cbm/14000Liters/12m3/ 10tons	پایه چرخ:	4700
اسب بخار:	180 اسب بخار	پمپ هیدرولیک:	برند معروف چینی
سیستم کنترل:	سیستم عامل برند زیمنس	گارانتی:	1 سال
Control:	Both manual and electric control	رنگ:	سفارشی
برجسته کردن:	Large capacity Garbage Compactor Truck,Waste collection Garbage Compactor Truck,14m3 Garbage Compactor Truck , Waste collection Garbage Compactor Truck , 14m3 Garbage Compactor Truck

Refuse Garbage Compactor Truck

Product Descriptions

* beautiful and generous box

*The effective compression volume

* Tail with flip feeding mechanism

* Electronically controlled & manual dual controllers

*Large capacity sewage tank with sewage collection tank

* The box can be sprayed with patterns and words as required.

Product Specifications

Truck Chassis Specification
Chassis		Dongfeng
Cab		Dongfeng single row cab
Driving Type		4*2 Left or right hand driving
Max Speed (km/h)		110
Overall dimension(mm)		835024903250
Tare weight( kg)		9850
Wheelbase(mm)		4700
Front/Rear track (mm)		1504/1425
Approach/Departure Angel		24/16
Tire		9.00R20, 6+1 pcs
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		6-speed
Enging	Model	Cummins 180hp
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke, direct injection, turbocharged
Braking system	Service Brake	Oil brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /5(mm) rear
Dirty tank volume		14cbm/14000Liters/14M3
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Reference photos

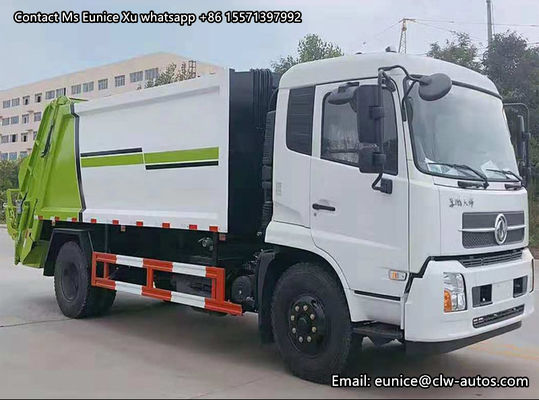

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 0

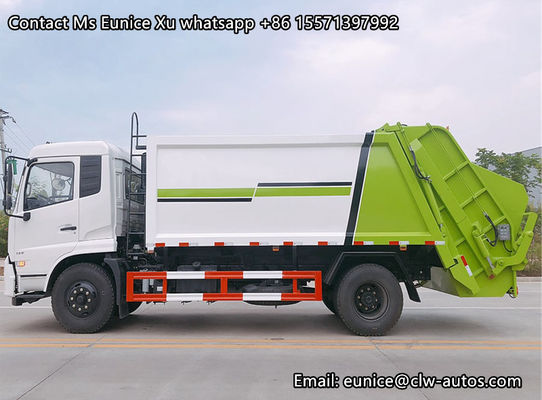

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 1

Diagram of compactor garbage truck

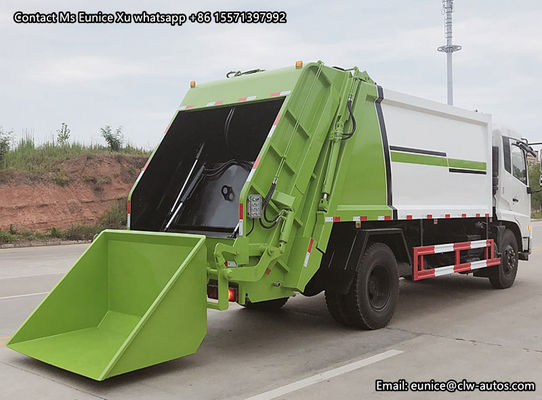

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 2

Main parts of garbage truck

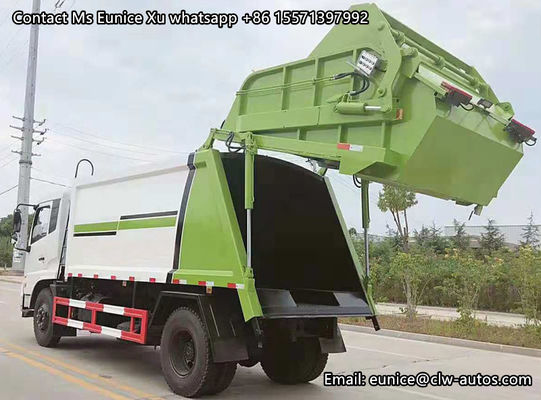

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 3

Factory overview

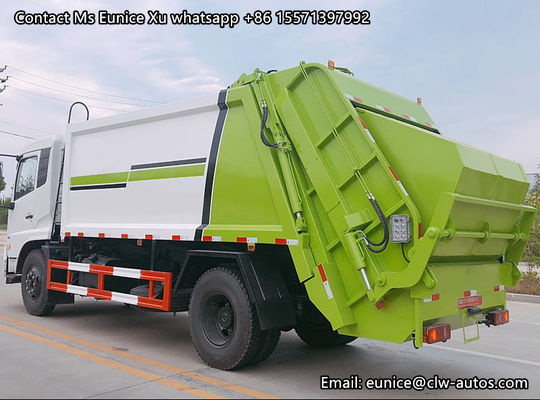

Dongfeng 14m3 Large capacity reliable quality refuse Garbage Compactor Truck Waste collection truck 4
