Dongfeng 7000L Water Delivery Tank, Water Sprinkler Truck, Water Bowser Truck, Water Tanker Truck, Water Transport Truck, Carbon Steel Water Truck
Watering truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
Product Description
Water bowser truck is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.
1. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump
Specifications of dongfeng 4X2 7tons/7cbm water bowser truck
| Condition |
New condition/Left hand drive/4x2 |
| Chassis |
Brand |
Dongfeng |
| Curb weight(kg) |
5495 kg |
| Gross weight(kg) |
12495 kg |
| Wheelbase(mm) |
3800 mm |
| Dimensions(mm) |
7200*2480*3000 mm |
| Front Loading Capacity (Ton) |
3550 |
| Rear Loading Capacity (Ton) |
5545 |
| Max. driving speed(km/h) |
100 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
| Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6 pcs with one spare tire |
| Specifications |
9.00R20 |
| Transmission |
Manual type, 6 Forwards and 1 reverse |
| Cabin |
Single row seat, Tiltable. It can accommodate two people. With air conditioner. |
| Engine |
Brand |
CUMMINS |
| Fuel type |
Diesel |
| Power(kw) |
125 kw |
| Horsepower(HP) |
170 HP |
| Cylinder number |
4 |
| Emission standard |
Euro 3 |
| Upper |
| Water tank |
Capacity(cbm/tons) |
7 |
| Tank Dimension(mm) |
3600*1800*1200 |
| Tank material |
Q235 carbon steel |
| Thickness(mm) |
4 |
| Water pump |
China local brand |
| Suction Height |
7 meters |
| Function |
1, Front Side Rear Sprinkling width≥ 14m |
| 2, Water cannon range≥ 28m |
| Remarks |
1. AM/FM radio |
| 2. 2pcs water hose. |
| 3. Color is optional |

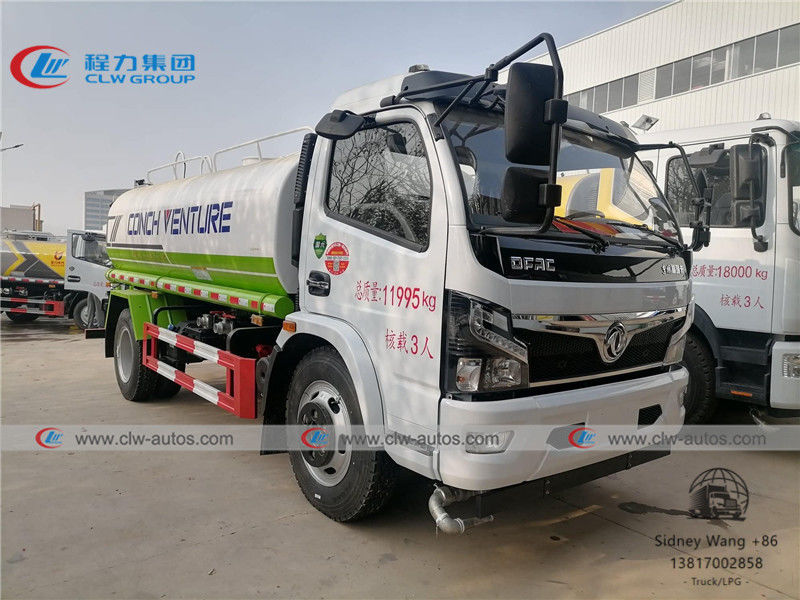

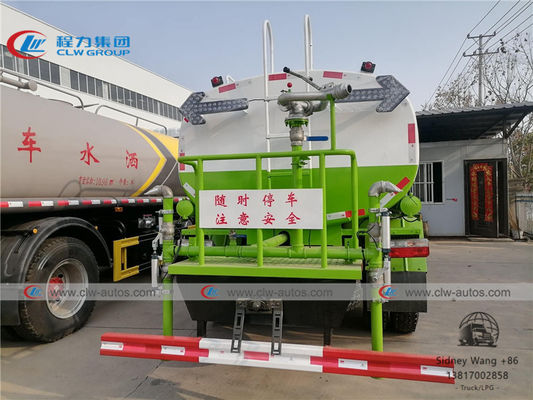

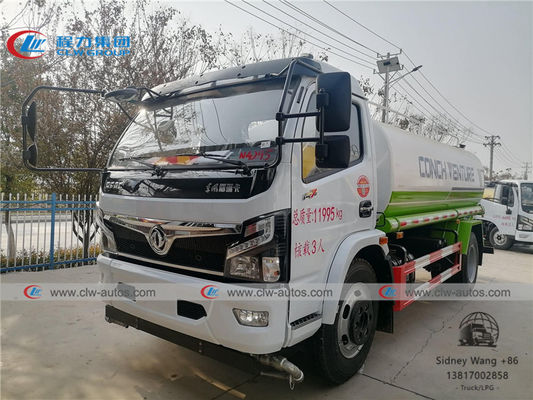

Reference photos for dongfeng water bowser truck
Water Truck Diagram
Working Show

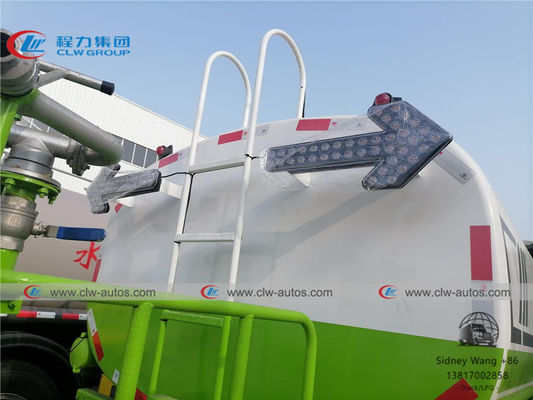

Truck Details
Water bowser truck production line:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
