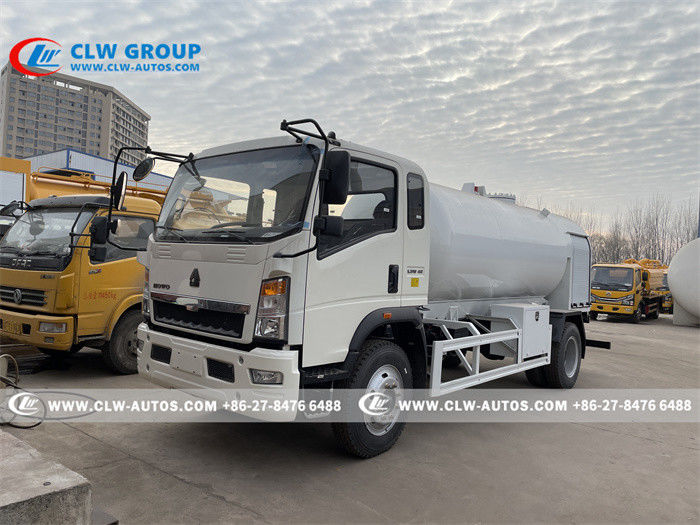

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser

تصویر بزرگ : 8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
Model Number:	CLW5116

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	22250-28620USD/UNIT
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Truck brand:	HOWO,ISUZU,DONGFENG,FAW,SHACMAN	Material:	Q345R lpg tanker truck
Tank Size:	8000L 8000Liters 10000liters lpg tanker truck	Loading weight:	2tons/2mt/4tons/4mt lpg tanker truck
Engine:	Diesel engine lpg tanker truck	Horsepower:	116hp 140hp 160hp lpg tanker truck
purpose:	Skid Station Refilling,cylinder filling lpg tanker truck	Design pressure:	1.61Mpa 16.1Bar lpg tanker truck
چرخ:	4x2، 6x4، 8x4، 4X2 6X4 8X4 6X2 4X4 6X6، 42.44.62.64.66.84.86.88	ذخیره سازی:	LPG، روغن، آب، LPG پروپان پنتان، گاز
Emmission:	Euro2/3/4/5, Euro III/Euro IV/ EuroV lpg tanker truck	نام:	کامیون مخزن گاز مایع، کامیون پرکننده گاز LPG / کامیون پرکن سیلندر گاز مایع، کامیون سوخت گیری گاز
Country:	lpg truck for nigeria,lpg truck for Kenya,lpg truck for zimbabwe
برجسته کردن:	Bobtail Tanker Truck With Dispenser,8000L Bobtail Tanker Truck,HOWO 4x2 LPG Gas Tanker Truck , 8000L Bobtail Tanker Truck , HOWO 4x2 LPG Gas Tanker Truck

8000liters 4 tons HOWO 4X2 LPG tanker bobtail truck with LPG gas dispenser

Product Description

1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

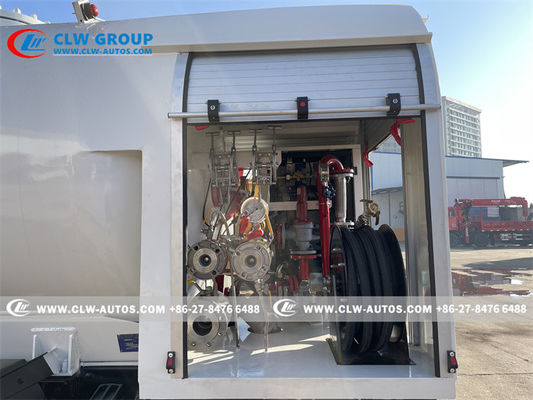

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

Specification

Main Technical Parameter
Model Name	HOWO 4x2 5000Liters LPG bobtail truck with dispenser
Driving Type	4x2,left hand drive
Weights
Rated payload weight(kg)	5000
Curb weight(kg)	4990
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	00×2045×2600
Tank volume	000L
Max speed(km/h)	90
Engine
Engine model	CHAOCAI 120HP
Engine type	Diesel 4-storke, Inter-cooling,water-cooling
No. of cylinders	straight-4 cylinders
Displacement(ml)	4856
Rated power Rev((Kw)	88 kw
Drive Line
Transmission	6 speeds, 6 forwards, 1 reverse gear,manual operation
Brake system	Air brake
Cab
cabin	SINOTRUK HOWO
Axle
Front axle	2.4 tons
Rear axle	4.2 tons
Tire specification
Tire specification	7.50R16 standard tire
Tire quality	6 tires+1 spare tire
Other
Electric system	24V
Tool	Standard equipment
Configuration
Tanker material	Q345R
Others	Storage for:liquified propane
	Design pressure 1.77Mpa;
	Design temperature 50 ;
	Filling density: 0.42T/M3;
	corrosion allowance: 1mm;
Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure

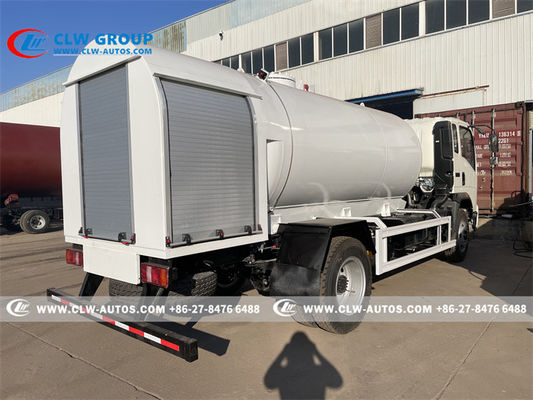

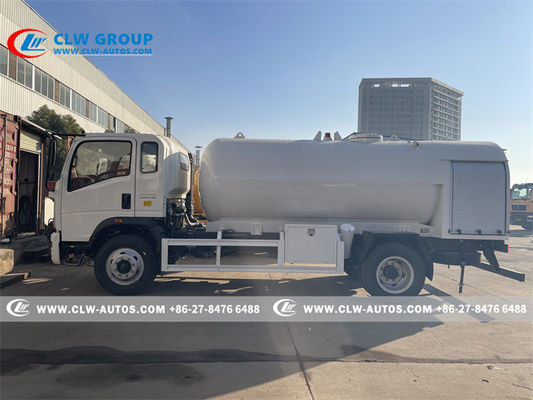

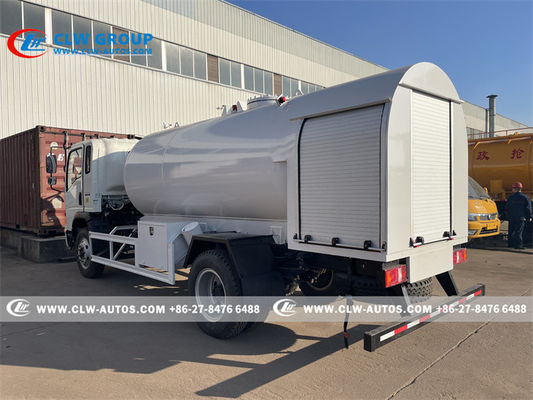

Reference photos

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 0

Production Process of Propane Gas Storage Tank

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 2

Factory overview

8000L 4T HOWO 4x2 LPG Gas Bobtail Tanker Truck With Dispenser 3

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
