4000L Sinotruk HOWO 4x2 LPG Bobtail Tanker Truck With Flow Meter

تصویر بزرگ : 4000L Sinotruk HOWO 4x2 LPG Bobtail Tanker Truck With Flow Meter

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
شماره مدل:	CLW5010

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	18250-23620USD/UNIT
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، D/P، T/T، Western Union، MoneyGram، D/A
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Truck brand:	HOWO,ISUZU,DONGFENG,FAW,SHACMAN	Material:	Q345R lpg tanker truck
Tank Size:	4000L 8000Liters 10000Liters lpg tanker truck	Loading weight:	2tons/2mt/2.5tons/2.5mt lpg tanker truck
Engine:	Diesel engine lpg tanker truck	Horsepower:	116hp 140hp 160hp lpg tanker truck
purpose:	Skid Station Refilling,cylinder filling lpg tanker truck	Design pressure:	1.61Mpa 16.1Bar lpg tanker truck
چرخ:	4x2، 6x4، 8x4، 4X2 6X4 8X4 6X2 4X4 6X6، 42.44.62.64.66.84.86.88	ذخیره سازی:	LPG، روغن، آب، LPG پروپان پنتان، گاز
Emmission:	Euro2/3/4/5, Euro III/Euro IV/ EuroV lpg tanker truck	نام:	کامیون مخزن گاز مایع، کامیون پرکننده گاز LPG / کامیون پرکن سیلندر گاز مایع، کامیون سوخت گیری گاز
Country:	lpg truck for nigeria,lpg truck for Kenya,lpg truck for zimbabwe
برجسته کردن:	Bobtail Tanker Truck With Flow Meter,Sinotruk HOWO 4x2 Bobtail Tanker Truck,4000L LPG Tanker Truck , Sinotruk HOWO 4x2 Bobtail Tanker Truck , 4000L LPG Tanker Truck

4000 liters Sinotuck HOWO 4x2 LPG Bobtail Tanker Truck With flow meter

Product Description

1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 4m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

Specification

Main Technical Parameter
Model Name	HOWO 4x2 4000Liters LPG bobtail truck with flow meter
Driving Type	4x2,left or right hand drive
Weights
Rated payload weight(kg)	4000
Curb weight(kg)	3990
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	5995×2145×2600
Tank volume	5000L
Max speed(km/h)	90
Engine
Engine model	CHAOCAI 120HP
Engine type	Diesel 4-storke, Inter-cooling,water-cooling
No. of cylinders	straight-4 cylinders
Displacement(ml)	3856
Rated power Rev((Kw)	88 kw
Drive Line
Transmission	6 speeds,6 forwards, 1 reverse gear,manual operation
Brake system	Air break
Cab
cabin	SINOTRUK HOWO
Axle
Front axle	2.4 tons
Rear axle	4.2 tons
Tire specification
Tire specification	7.00R16 standard tire
Tire quality	6 tires+1 spare tire
Other
Electric system	24V
Tool	Standard equipment
Configuration
Tanker material	Q345R
Others	Storage for:liquified propane
	design pressure 1.77Mpa;
	design temperature 50 ;
	filling density: 0.42T/M3;
	corrosion allowance: 1mm;
Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure

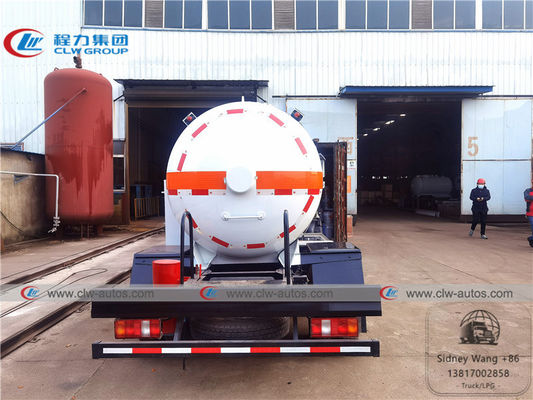

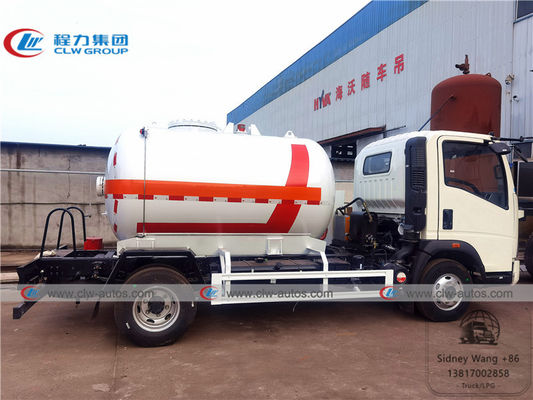

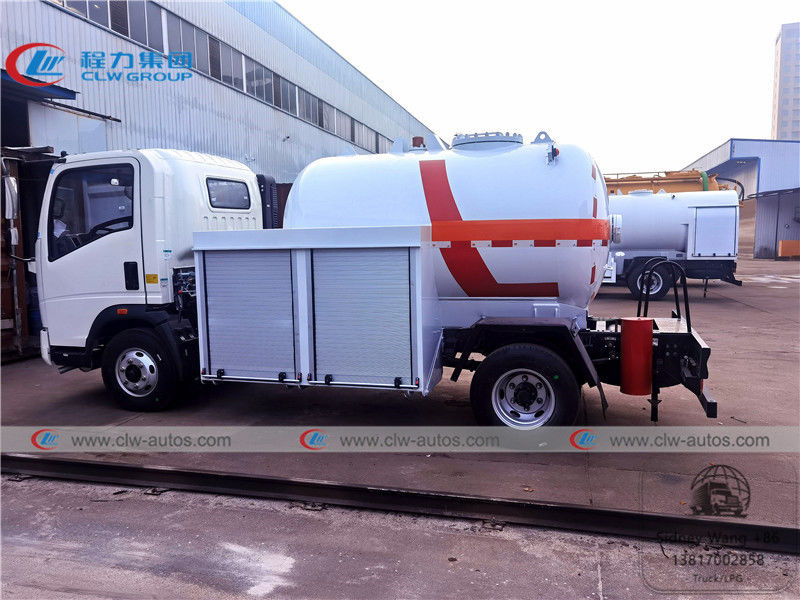

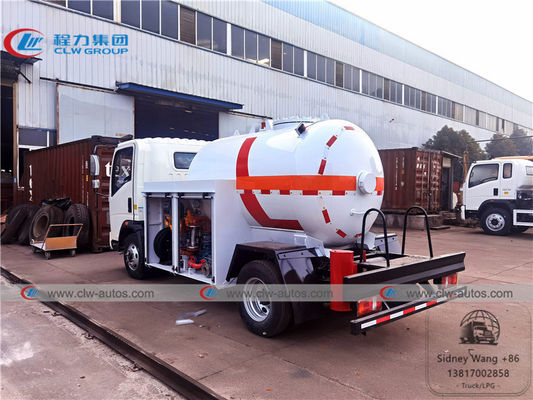

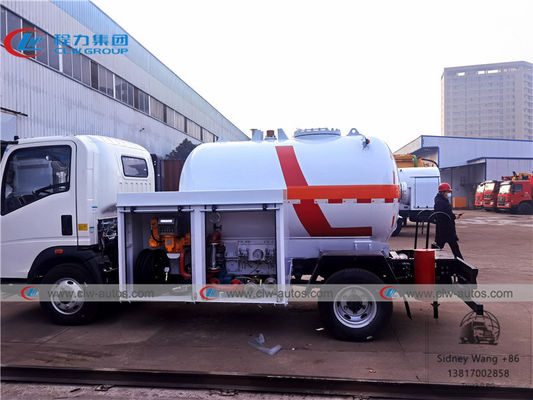

Reference photos

4000L Sinotruk HOWO 4x2 LPG Bobtail Tanker Truck With Flow Meter 0

Production Process of Propane Gas Storage Tank

4000L Sinotruk HOWO 4x2 LPG Bobtail Tanker Truck With Flow Meter 4

Factory overview

4000L Sinotruk HOWO 4x2 LPG Bobtail Tanker Truck With Flow Meter 7

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
