Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck

تصویر بزرگ : Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
Model Number:	CLW5106

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با کشتی فله ارسال می شود
زمان تحویل:	30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، Western Union، MoneyGram،
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

Truck brand:	SANHUAN, ISUZU,HOWO,DONGFENG,FAW,SHACMAN bulk feed truck	مواد:	تریلر خوراک فله فولاد کربن / آلیاژ آلومینیوم
متوسط:	خوراک فله، دانه، پودر و غیره	Volume:	40m3, 40cbm
ضخامت:	5 میلی متر	رنگ:	سفارشی
لوگو:	طبق درخواست شما	هدف:	خوراک مرغ/اردک/گاو
برجسته کردن:	8x4 Bulk Feed Delivery Truck,Sanhuan Bulk Feed Delivery Truck,40m3 Grain Delivery Truck , Sanhuan Bulk Feed Delivery Truck , 40m3 Grain Delivery Truck

Sanhuan brand 8x4 40000liters 40m3 20-30tons grain poultry animal bulk feed delivery truck

Description:
The bulk feed trucks produced by our company can transport different kinds of feeds through separate bins. It has obvious convenience advantages and wide-ranging uses. It is an essential transportation tool for farms and feed mills.

Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.

Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.

Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO , FAW, SINOTRUK, ISUZU bulk feed trucks for choose.

Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.

Specifications:

Vehicle Main parameter	Cab type	Sanhuan single sleeper cab, air conditioning
	Overall dimension(L×W×H)(mm)	10700×2500×3595
	Axle number	4
	Drive type	8*4
	Steering type	LHD / RHD with hydraulic power steering
	Max. Drive Speed (km/h)	90
	Curb weight (kg)	Approx 15870
Chassis parameter	Chassis brand	Sanhuan
	Transmission	Manual ,10 speed forward and 2 reverse
	Brakes	air brake
	Tire	11.00R20, 12 with 1 Spare tire
Engine parameter	Engine brand	Cummins
	Model	ISL9.5-315E51A
	Fuel type	Diesel
	Horse Power(kw)/(hp)	232/315
	Displacement(ml)	9460
	Emission Standard	Euro 3
Superstructure Parameter	1. Transport Medium	Kinds of bulk feed
	2. Main compostion	Chassis, feed silo, feed inlet, discharge auger system, operation electric hydraulic system,etc
	3. Tank volume(m3)	40m3/20ton
	4. Tank material	high quality carbon steel
	5. Warehouse	With 4 units separate warehouses to load different kinds of feed
	6. Discharger type:	electric auger, optional hydraulic auger or 24kw diesel generator with addiditional cost
	7. Performance parameter:	(1). Average discharge rate(kg/min):500-600; (2). Discharge system rotation angle:360 degree ,system elevation angle:60 degree; (3). Maximum horizontal distance:6m, Vertical distance:7m-8.5m

Reference photos

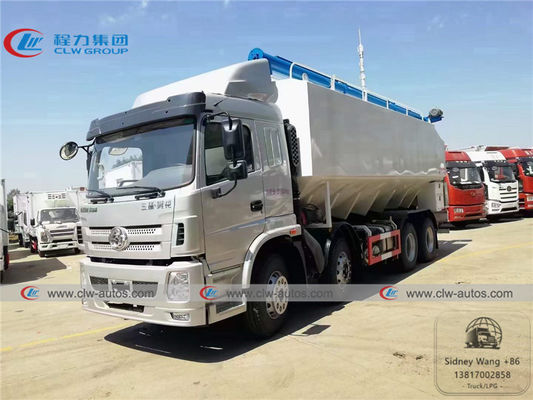

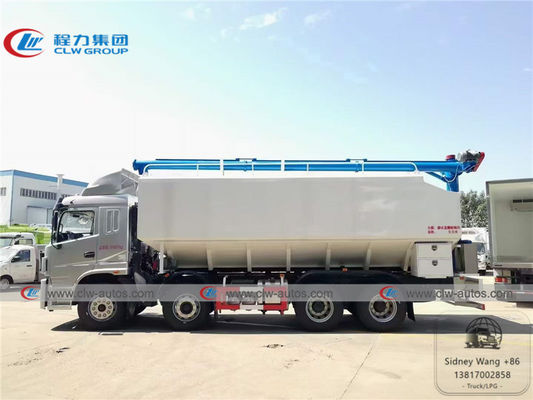

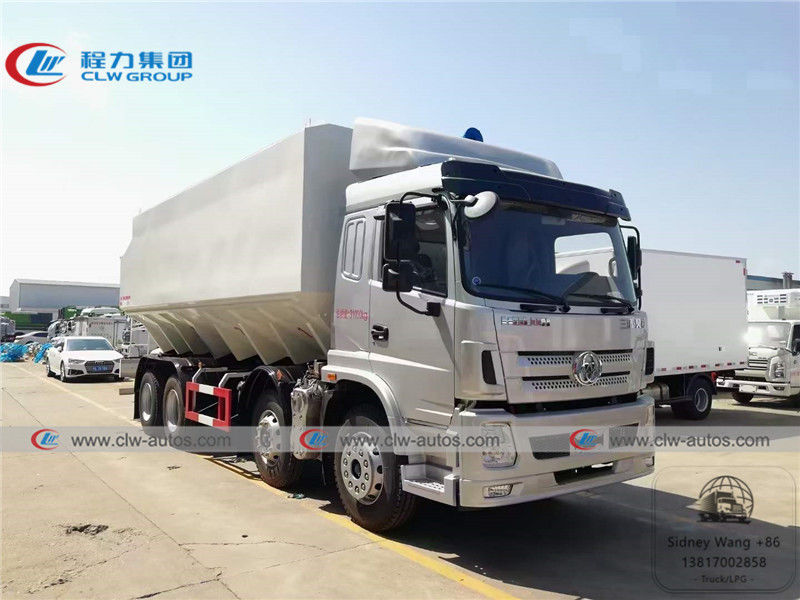

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 0

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 1

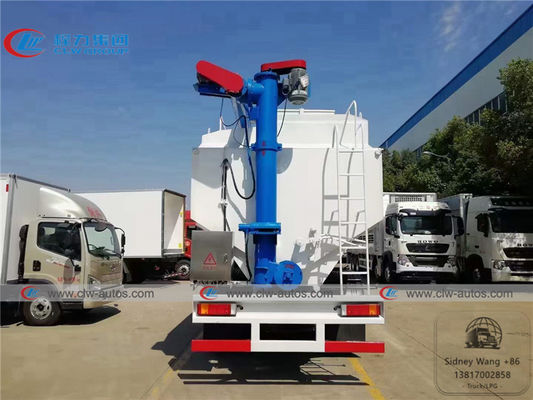

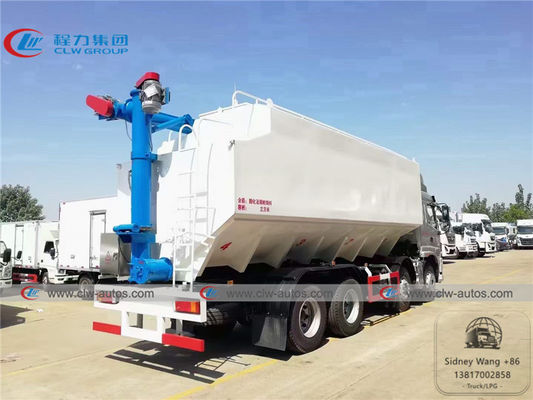

Working show

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 4

Bulk Feed Truck Diagram

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 6

Different Bulk Feed Truck for choice

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 7

Factory overview

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 8

Overseas exhibition

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 9

Sanhuan 8x4 40m3 20 - 30T Grain / Bulk Feed Delivery Truck 10

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
