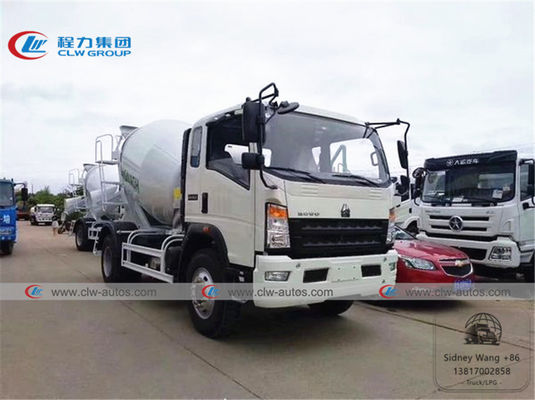

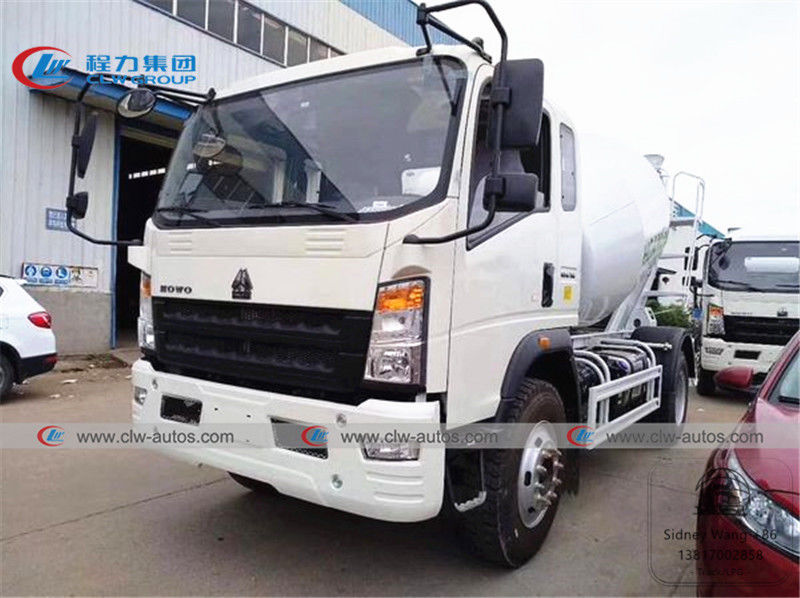

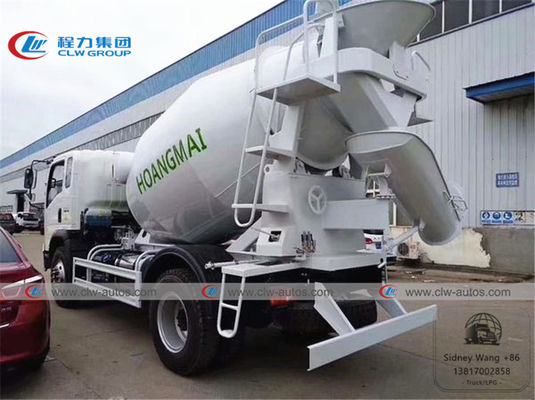

SINOTRUK HOWO 4000Liters 4cbm Concrete Mixer Truck Cement Mixer Drum Truck
Three main part of the concrete mixer truck:
1. German Rexroth Hydraulic pump, Motor, ZF reducer;
2. America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Product Description
1. Chassis: Dongfeng, Sinotruk howo, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
|
Truck Brand
|
HOWO Concrete Mixer Light Truck
|
|
Driving wheel
|
4x2
|
|
Driving type
|
Left Hand Driving
|
|
Chassis Model
|
CLW
|
|
Dimension(Lx W x H)(unloaded)(mm)
|
6500*2498*3650
|
|
Approaching angle/Departure angle(°)
|
27/22
|
|
Overhang(front/rear) (mm)
|
1240/1955
|
|
Wheel base (mm)
|
3300
|
|
Leaf spring
|
11/12+9B
|
|
Max speed(km/h)
|
90
|
|
Curb weight(kg)
|
7085
|
|
Engine
|
Model
|
YC4D130-33, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
|
|
Fuel type
|
Diesel
|
|
Horse Power, max(kw/rpm)
|
130HP
|
|
Displacement(L)
|
3.76
|
|
Emission
|
EURO III
|
|
Fuel tanker capacity (L)
|
300
|
|
Transmission
|
Model
|
WLY653H, 6 forwards and 1 reverse
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
Front axle
|
3T
|
|
Rear axle
|
5T
|
|
Color
|
Optional
|
|
Tyre
|
9.00R20 All Steel Radial , 6+1 Spare tire
|
|
Cab
|
2persons allowed, with AC, NO Sleeper.
|
|
Upper Mixer Body
|
|
Agitating Capacity
|
4m3/4000L
|
|
Drum rotation speed
|
0-14r/min
|
|
Feeding Speed
|
>3.5m3/min
|
|
Water Tank Volume
|
Standard type with water indicator
|
|
Discharge Remain Ratio
|
<0.2%
|
|
Water supply
|
Pressing type
|
Reference Photos
Truck Diagram
Working scene
Factory overview
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
