HOWO 15000Liters LPG Dispenser Truck Mobile Bobtail Truck for Cylinder Refilling
Product Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Truck Specifications
| Item No. |
Parameters |
| Cabin |
HOWO Cabin, 3 passengers allowed, with A/C |
| Overall Dimension |
8300x2500x3250 mm |
| Driving Model |
Right hand driving |
| Gross Vehicle Weight |
16000 kg |
| Curb Weight |
8460 kg |
| Payload |
7000 kg |
| F/R Axle Loading |
3600/10500 kg |
| Wheel Base |
4700 mm |
| Front/rear Tread |
1886/1845 mm |
| Approach/Departure Angle |
27/20 degree |
| Engine |
Yuchai Brand |
| Engine horsepower |
160 HP |
| Displacement |
4260mL (Diesel type) |
| Max Driving Speed |
90 km/h |
| Gear Box |
6 forward and 1 reverse |
| Tire |
9.00R20 (6 pc with 1 spare) |
| LPG tank |
|
| Volume: |
15cbm/15000Liters |
| Tank material: |
Q345R/Q370R |
| Tank diameter: |
2000mm |
| Tank thickness: |
10mm |
| End plate |
10mm |
| Tank length: |
As designed |
| Gas phase |
DN25 or DN50 or customized |
| Liquid Phase |
DN50 or DN80 or customized |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Hydraulic Testing Pressure |
2.21Mpa |
| Working Temperature |
-20~50 ºC |
| Design Code |
GB150.1~2011 |

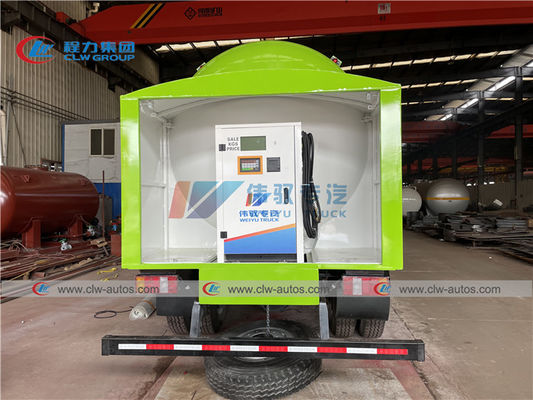

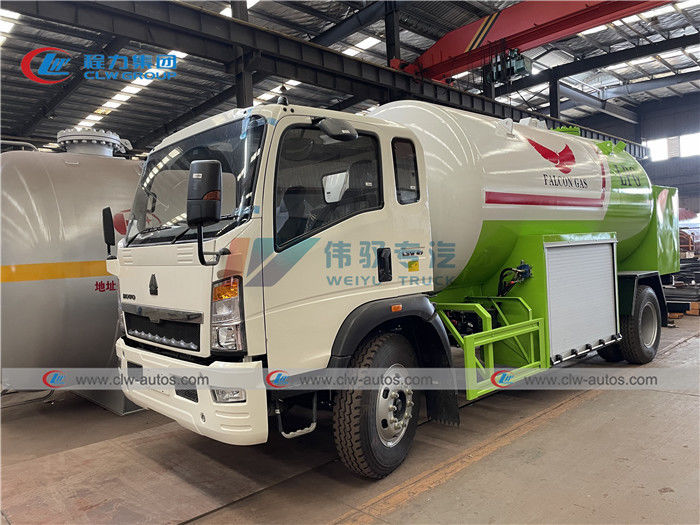

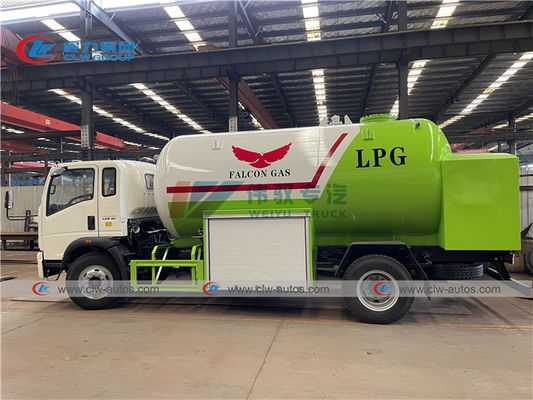

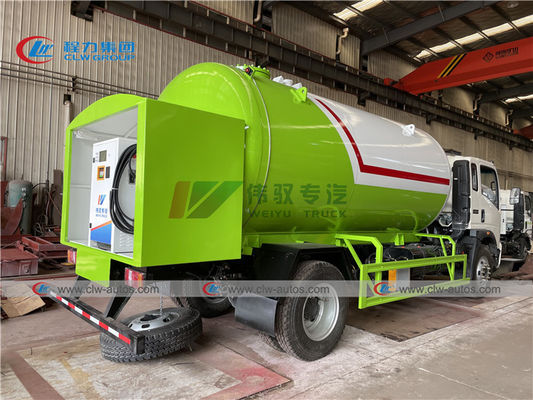

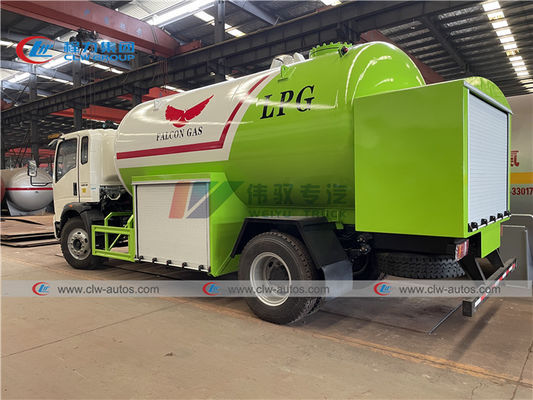

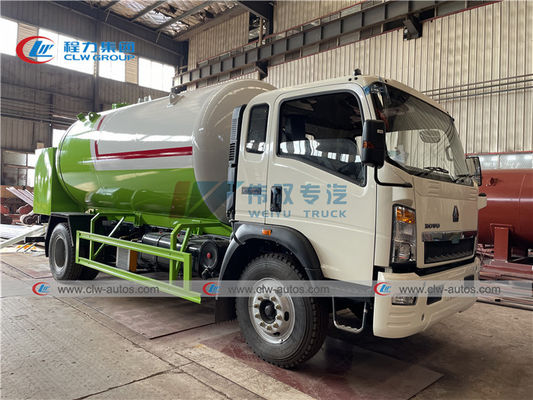

Reference Picture
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
