ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

تصویر بزرگ : ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW5064

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T، Western Union، MoneyGram
قابلیت ارائه:	300 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	ISUZU، دانگ فنگ، فوتون، شاکمن، JAC، JMC، فاو، HOWO	ماده مخزن:	فولاد کربن Q235a
مخزن آب:	2CBM/2000 لیتر	مخزن گرد و غبار:	3CBM/3000 لیتر
پمپ خلا:	برند چینی یا ایتالیایی برای انتخاب	پایه:	3360 میلی متر
رنگ:	آرم سفارشی	گارانتی:	یک سال برای قطعات اصلی
فیلم عملیات:	بله	کتابچه راهنمای کاربر:	بله
برجسته کردن:	5cbm Sewage Vacuum Truck,ISUZU Sewage Vacuum Truck,ISUZU 4x2 Sewer Cleaning Truck , ISUZU Sewage Vacuum Truck , ISUZU 4x2 Sewer Cleaning Truck

UZU 5cbm Sewage Vacuum Truck 5tons Sewer Cleaning Truck

Product Description

1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!

2. Main parts: Water pump and High pressure water cleaning nozzles tc.

3. Features: It can adopts high pressure water for flushing sewer.

4.5000 liters sewage vacuum suction truck with 2000 liters high pressure water tank(1000 liters by eash side)

Vehicle Description
Overall dimensions	599522503250 mm
Curb Weight	5400kg
Chassis brand	ISUZU
Traction type	4*2

Tanker Description
Tanker	Capacity	5000L
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Double vacuum pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
	Manufacture	Hangzhou WEILONG Pump Co., Ltd.
Pipe		Suction and discharge pipe
Special function		Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45
Standard configuration		Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration		Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank

Chassis Description
Chassis model	ISUZU
Cab	Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
Traction type	LHD or RHD
Drive type	4*2
Wheelbase	3360mm
Tire specification	8.25-16
Tire quantity	6+1 units
Engine	Emission level	Euro 1/2/3/4
	Displacement/output	2771ml
	Horse power	95hp
Gear box	Model	China famous brand
	Number of gears	5 forward gears& 1 reverse, synchronized
Brake system	Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
Axle	Front	2.5T
	Rear	4T

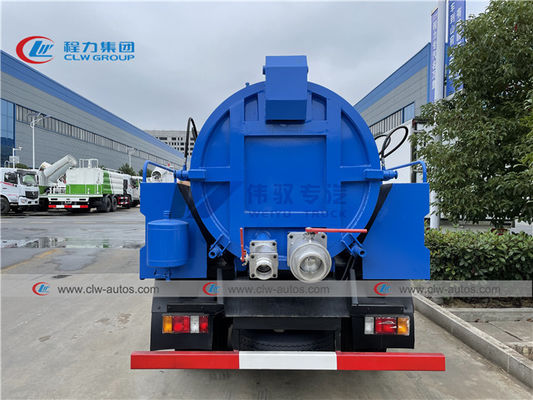

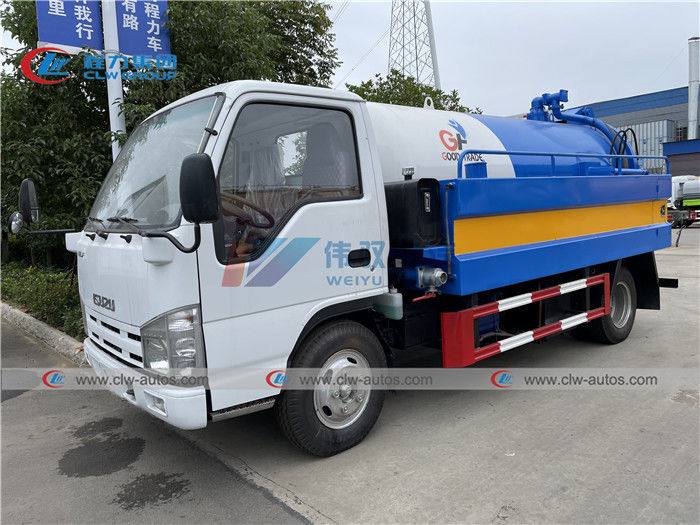

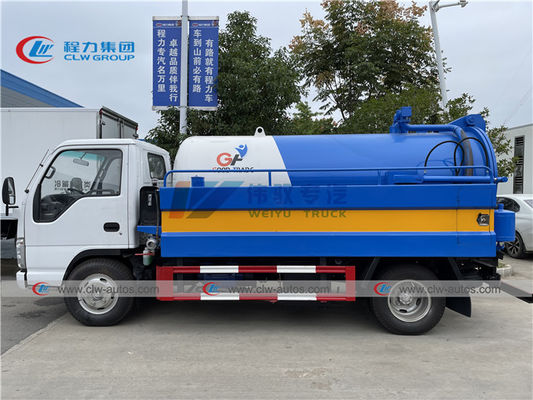

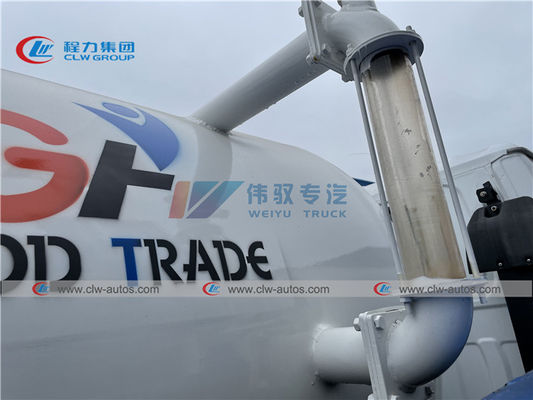

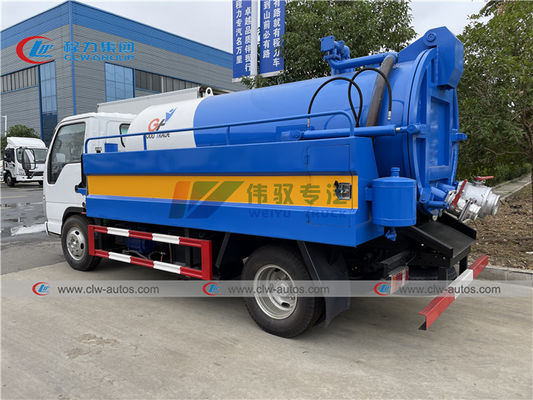

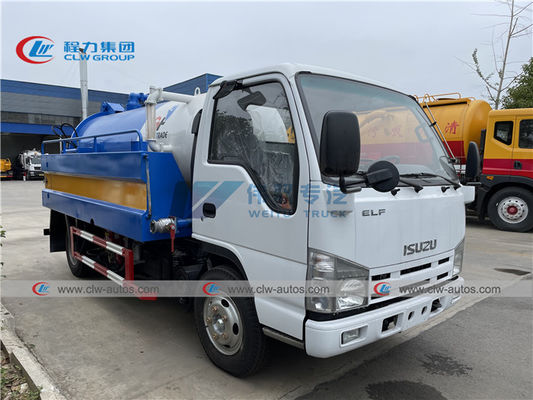

Truck details:

Accessories

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 4

Working Process

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 5

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 6

Sales Service

1. Professional engineer team with more than 20 years experience, technical support whenever needed.

2. Our team will take operation videos to show you how to use the truck step by step, it will be very easy for first learners.

3. Live video guidance about usage and maintenance.

4. Life long service whenever needed

FAQ

Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.

Q3: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
