ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

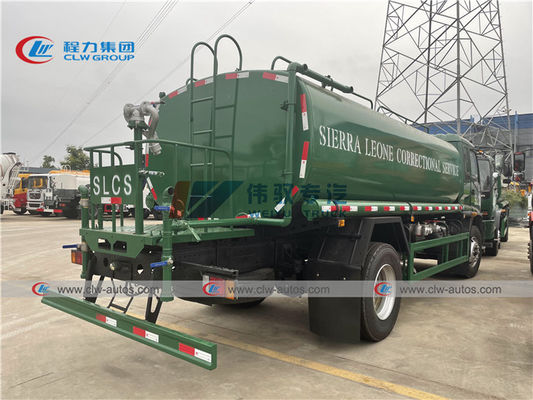

تصویر بزرگ : ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO
شماره مدل:	CLW5079dcx

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی برهنه، رو-رو، کشتی فله
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C ، T/T ، D/A ، D/P ، Western Union ، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شاسی کامیون:	ISUZU، HOWO، دانگ فنگ، FAW، JAC، JMC، FOTON	مواد:	فولاد کربن Q235a
ضخامت:	سمت 4 میلی متر، کف 4 میلی متر	سوخت:	نوع دیزل
پمپ اب:	برند معروف چین	ارتفاع مکعب:	7 متر
محدوده توپ:	28 متر	عرض پاشیدن:	14 متر
فیلم عملیات:	بله	کتابچه راهنمای کاربر:	بله
لوگو:	به عنوان درخواست مشتری	گارانتی:	1 سال
برجسته کردن:	14000L Water Sprinkler Truck,ISUZU Water Sprinkler Truck,Q235 Carbon Steel Water Tanker Truck , ISUZU Water Sprinkler Truck , Q235 Carbon Steel Water Tanker Truck

ISUZU 14tons Water Tanker Truck 14000Liters Watering Cart Sprinkler Spray Water Bowser Truck

Product Description

1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,JAC,JMC
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump (Chinese Top brand or Italy Brand)
6. Purpose: water sprinker for road cleaning, drinking water transport

Specifications of 14000 liters water tanker truck

Condition	New condition/Left hand drive/4x2
Chassis	Brand		ISUZU FVR
	Curb weight(kg)		6305 kg
	Loading weight(kg)		11705 kg
	Gross weight(kg)		18000 kg
	Wheelbase(mm)		5000 mm
	Dimensions(mm)		990025003400 mm
	Front Loading Capacity (Ton)		6.3
	Rear Loading Capacity (Ton)		13
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	10.00-20
Transmission	Manual type,6 Forwards and 1 reverse
Cabin	Single row seat, Tiltable. It can accommodate three people. With air conditioner.
Engine	Brand		ISUZU
	Fuel type		Diesel
	Power(kw)		177 kw
	Horsepower(HP)		240 HP
	Cylinder number		6
	Emission standard		Euro 4
Upper
Water tank	Capacity(cbm/tons)		14/14
	Tank material		Q235 carbon steel
	Thickness(mm)		5
Water pump	China local brand
	Suction Height		7M
Function	1, Front Side Rear Sprinkling width≥14m
	2, Water cannon range≥28m
Remarks	1. AM/FM radio
	2. 2pcs water hose.
	3. Color is optional

Water Truck Digram

ISUZU 14000L Water Sprinkler Truck With Q235 Carbon Steel Tank 0

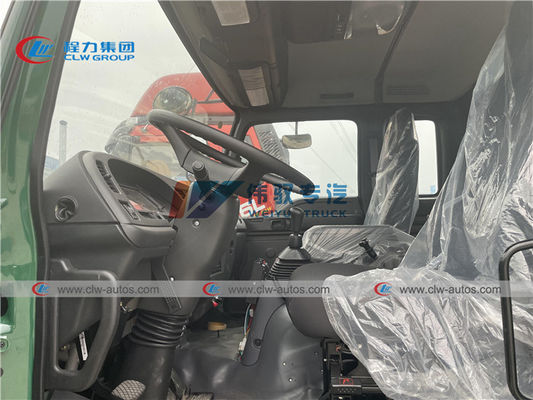

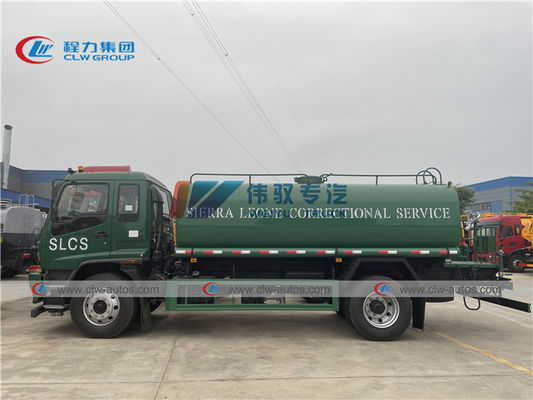

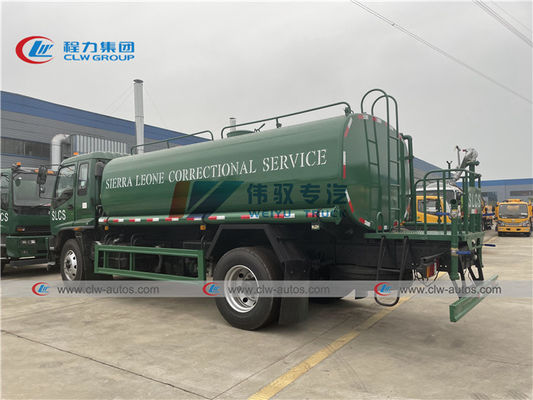

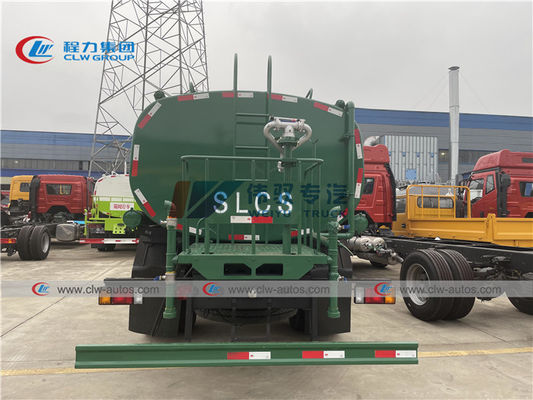

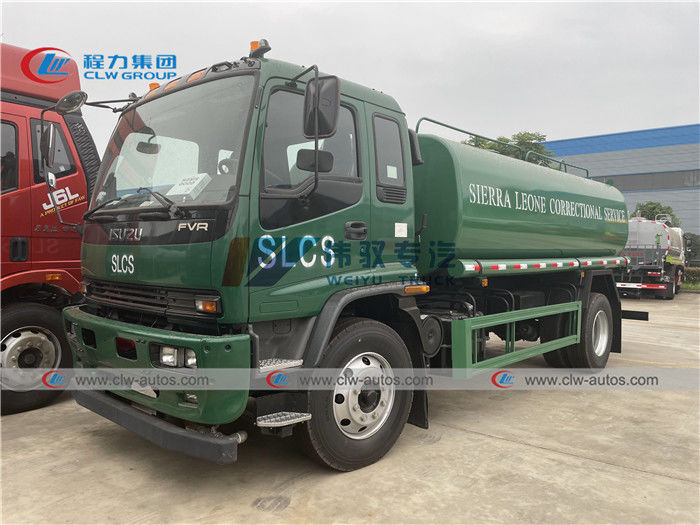

Truck details:

Working Diagram

Production Line for Water Tank Truck

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
