Dongfeng Furuicar 4000Liters water tank 7000Liters Septic tank Vacuum sewage suction truck drainage tank truck
Description:
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body: From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Specification
| Vehicle Main Dimensions |
Cab type |
Single |
| Overall dimension(L*W*H)(mm) |
6800×2300×2850 |
| Wheelbase (mm) |
3800 |
| Axle number |
2 |
| Drive type |
4*2 |
| Steering type |
LHD/RHD |
| Max. Drive Speed (km/h) |
100 |
| Curb weight (kg) |
5340 |
| Chassis parameter |
Chassis brand |
Dongfeng Furuicar |
| Transmission |
Manual, 8forward and 1 reverse |
| Brakes |
air brake |
| Tire |
8.25R20 |
| Engine parameter |
Engine Brand |
Cummins |
| Fuel type |
Diesel |
| Horse Power(hp) |
190hp |
| Emission Standard |
Euro III/IV/V |
| Superstructure Parameter and main performance |
Sewage tank volume |
7000liters/7cbm |
| Sewage tank material |
6 mm good quality carbon steel |
| Vacuum Pump |
Imported Italy high quality vacuum pump or chinese vacuum pump SK-12 |
| Water tank volume |
4000liters/4cbm |
| High pressure pump |
Flow meter: 215L/min |
| Standard configuration |
60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc |
| Main performance |
Suction time ≤ 5min
Effective suction range ≥ 9m |
| Main function |
Cleaning city sewer, pipeline dredge, suction sewage,etc |
| Optional |
watering |

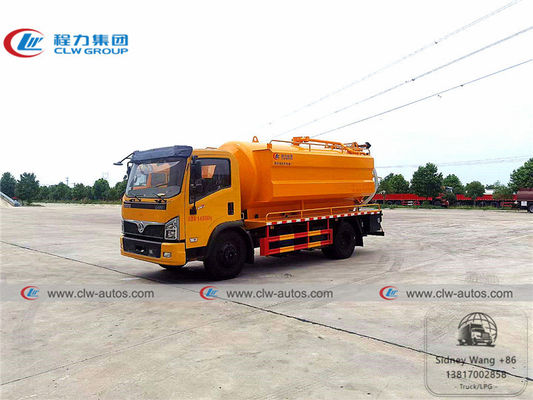

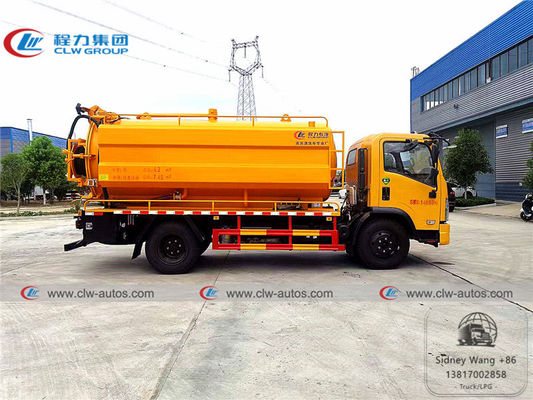

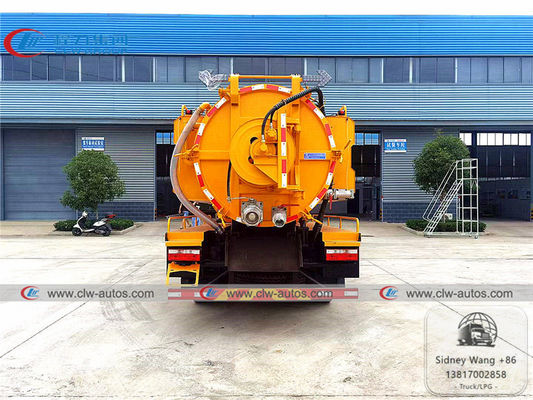

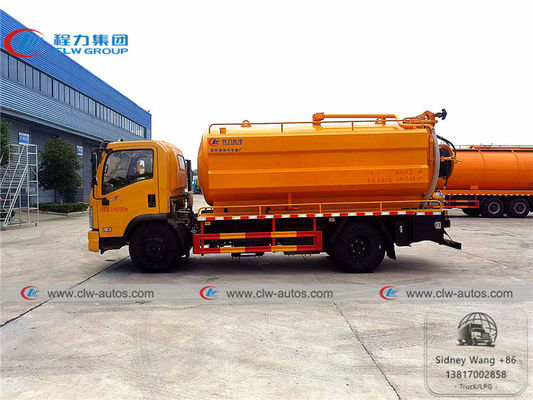

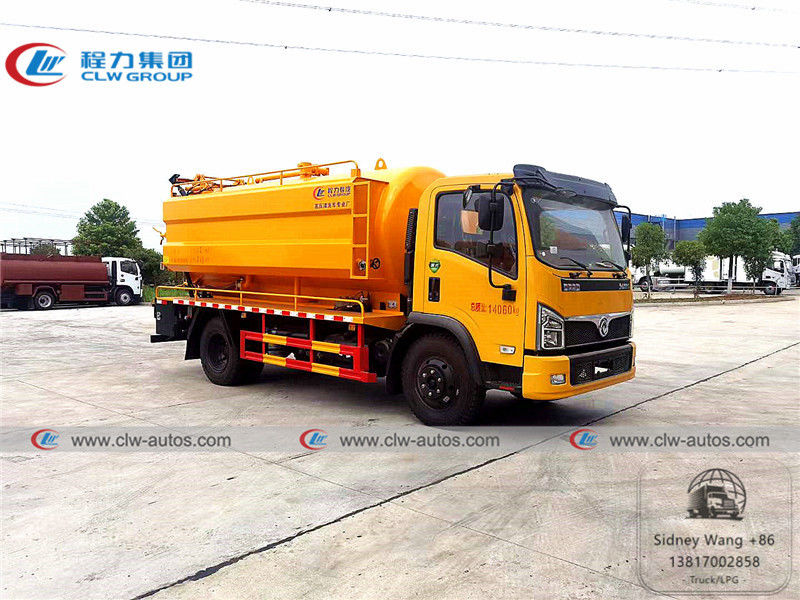

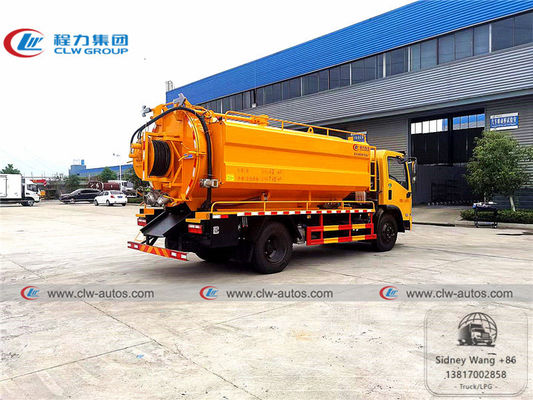

Reference Photos
Main Structure
Working Scene
Factory overview
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
