Dongfeng Furuicar 4x2 5000Liters 5cbm 5M3 3tons 4tons garbage compactor truck rear loading waste removal truck
Product Description
1. Garbage collection is simple, with high compression ratio and large loading capacity: the loading capacity is two and a half times of that of the same ton uncompressed garbage truck
2. Job automation: imported computer control system is adopted. Only one driver is required to operate all the filling and discharging operations
3. Good economy: when the special equipment works, the computer control system will automatically control the throttle
4. Turnover mechanism: choose to install the turnover mechanism with garbage cans (or buckets) to lift the garbage cans with multiple capacities. It can be equipped with the national iron hanging drums or plastic hanging drums to forcefully load the garbage into the car and compost and evade
5. Change the dirty appearance of the city and eliminate the secondary pollution
6. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck
7. Easy Full Automatic Operation: electrical control system for loading and unloading operations
8. One Person Operation: Reducing sanitation work, greatly improves the working efficiency
9. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Truck Specification |
| Chassis model |
CLW5693 |
| Cab |
Dongfeng Furuicar single row cab |
| Driving Type |
4*2 Left hand driving |
| Max Speed (km/h) |
100 |
| Overall dimension(mm) |
6465×1870×2200 |
| GVW( kg) |
6200 |
| Mass in working order ( kg) |
2460 |
| Wheelbase(mm) |
3300 |
| F/R track base (mm) |
1569/1530 |
| F/R overhang (mm) |
1068/1997 |
| Approach/Departure Angel |
22/25 |
| Tire |
7.00-16LT 14PR |
| Clutch |
Single-plate dry diaphragm spring clutch |
| Steering |
Hydraulic steering with power assistance |
| Gear box |
5-speed |
| Bridge |
Front axle |
2.4T |
| Rear axle |
4T |
| Enging |
Model |
YC4E140-33 |
| Fuel Type |
Diesel fuel |
| Type |
Water-cooled four-stroke,, direct injection, turbocharged |
| Exhaust(ml) |
4257 |
| Max output power/rotate speed (hp /rpm ) |
140/2800 |
| Braking system |
Service Brake |
Compressed air brake |
| Park Brake |
Spring energy |
| Auxiliary brake |
engine exhaust brake |
| Eletric system |
24v |
| Upper-Body specification |
| Material of tank |
Material : Q235, Thickness :3(mm) side /4(mm) bottom |
| Dirty tank volume |
5m³/5000Liters/3-4tons |
| Filler volume |
500L |
| Filling time(s) |
8~10s |
| Filling cycle time(s) |
40~50s/once |
| Discharge type |
rear discharging |
| Hydraulic pressure |
16Mpa |
| Controlling way |
Manualy and electrical control |

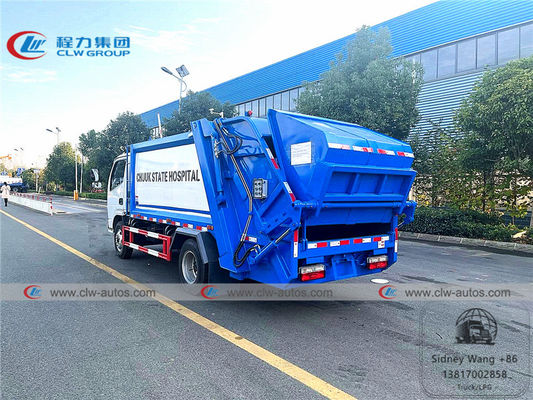

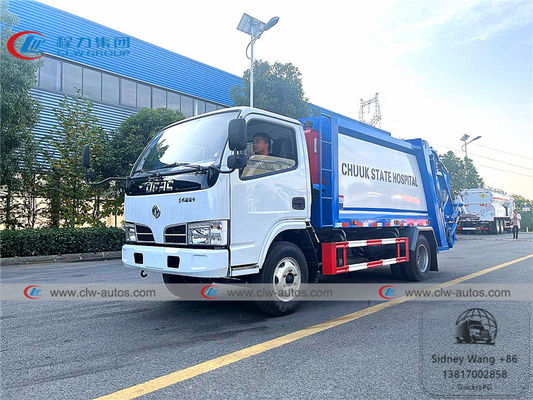

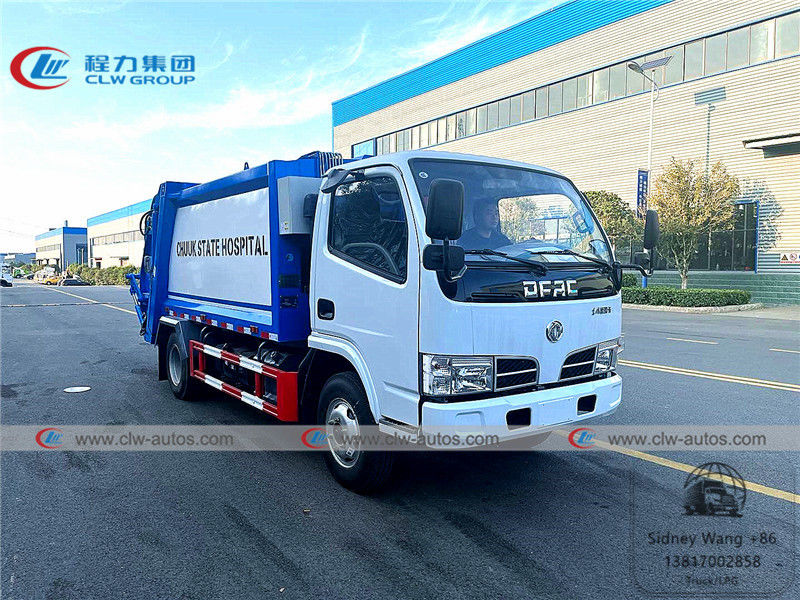

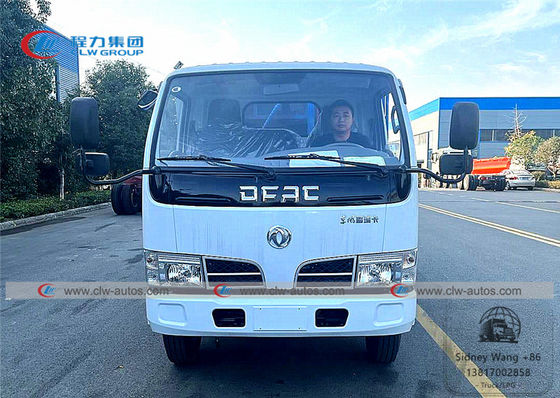

Product Photos

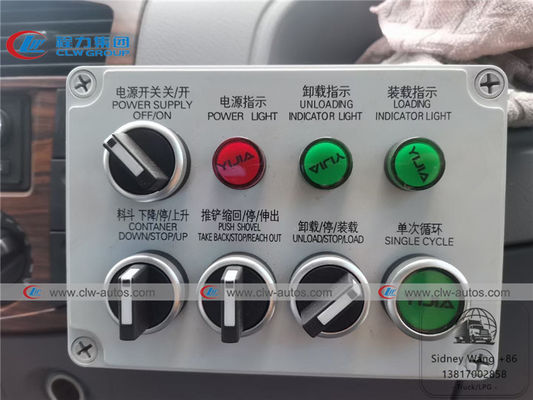

Main parts
Truck Diagram
Factory overview
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
