5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

تصویر بزرگ : 5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,BV,SGS
شماره مدل:	CLW5680

پرداخت:

مقدار حداقل تعداد سفارش:	واحد
قیمت:	negotiable
جزئیات بسته بندی:	کشتی فله ، RO-RO ، کانتینر
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، سینوتروک HOWO، ایسوزو و غیره	مدل محرک:	فرمان راست و چپ دست
پایه:	3300 میلی متر	نیروی موتور:	115 اسب بخار
ظرفیت مخزن آب:	5 سی بی متر 5 متر مکعب 5 متر مکعب 5000 لیتر 5 تن	ظرفیت مخزن مدفوع:	5 سی بی متر 5 متر مکعب 5 متر مکعب 5000 لیتر 5 تن
ماده مخزن:	فولاد کربن 5 میلی متر	پمپ خلا:	برند بین المللی معروف
لوله مکش مدفوع:	8 متر	زمان مکش:	نه بیشتر از 5 دقیقه
دامنه مکش مؤثر:	نه کمتر از 8 متر	لوگو و الگو:	به عنوان درخواست مشتری
گارانتی:	1 سال
برجسته کردن:	LHD Fecal Suction Truck,Foton Forland Fecal Suction Truck,5000 Liters Vacuum Suction Truck , Foton Forland Fecal Suction Truck , 5000 Liters Vacuum Suction Truck

5000Liters 5cbm 5tons Foton Forland 4x2 Small Fecal Suction Truck Sewage Vacuum Suction Truck Septic Tank Truck

Description:

A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.

Specifications:

The Parameters of 5M3 Forland small Fecal Suction Truck
Overview
Name	Foton Forland small Fecal Suction Truck
Dimension(LxWxH)	5995X2075X2470(mm)
Total Mass	7865 Kg
Rated Payload	5000 Kg
Kerb Weight	3865 Kg
Passenger	2
Approach/Departure Angle	33/24
The Parameters of Chassis
Manufacture/Model	Forland
Driving Type	4*2 left hand drive
Wheel base	3300 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1260/1260(mm)
Tyre	7.00R16
The Number of Tyre	6+1(spare tyre)
Front/Rear Suspension	1295/1450(mm)
Leaf Spring Number	7/7
The Paremeters of Engine
Manufacturer/Model	Quanchai
Rated Power	115hp
Fuel Type	Diesel oil
Displacement/Capacity	3809ml
Emission Standard	Euro 6
Cylinder	Straight/4/intercooling
Max. torque	240N.m
Velocity	3200rpm
The Parameters of Equipment
Tank Capacity	5M3 / 5000Liters
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>7m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Length of Pipe	8m
Time for full suction	<5min
Basic Equipment	Vacuum pump, ball valve, 8 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
Optional Equipment	Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

Reference Photos

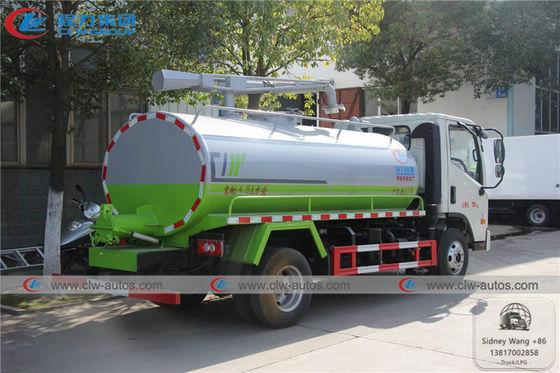

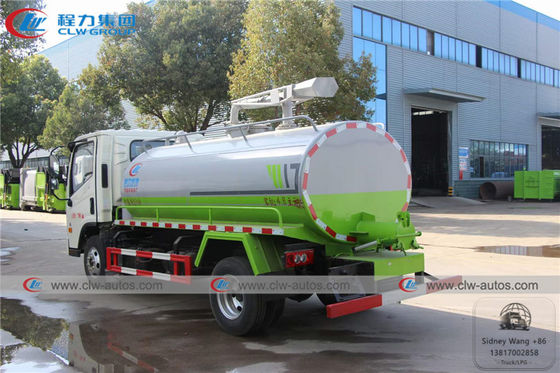

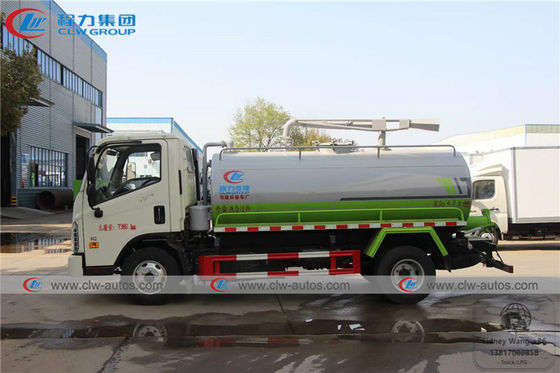

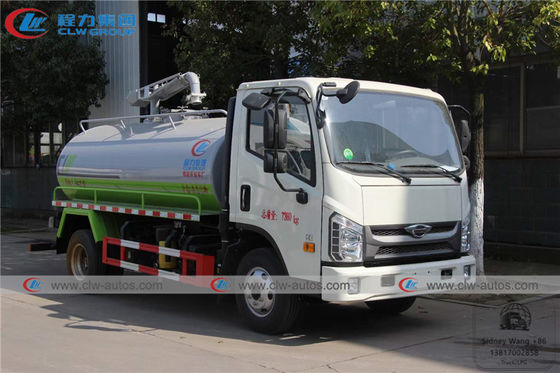

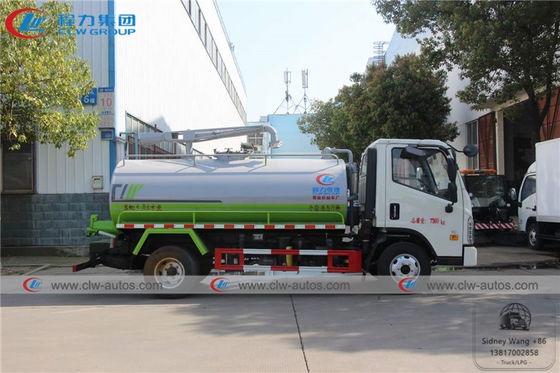

5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck 0

Main Structure

Working Scene

Factory overview

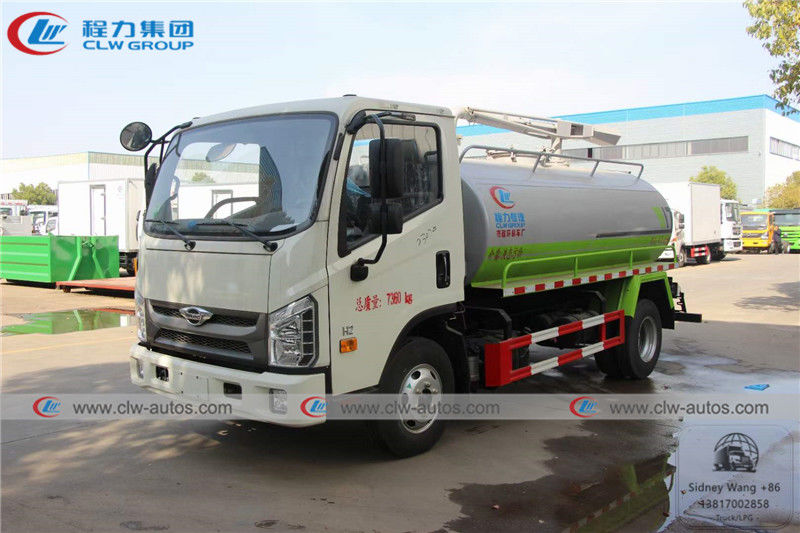

5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck 6
Delivery and Shipment

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
