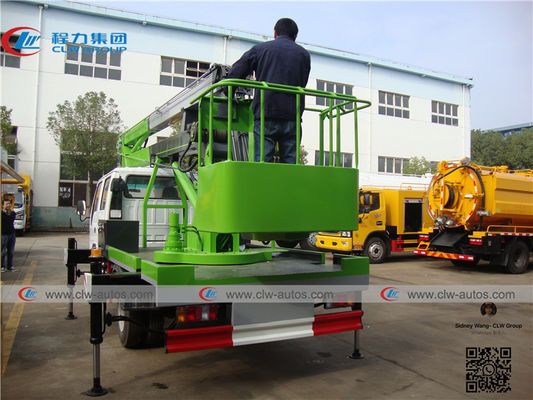

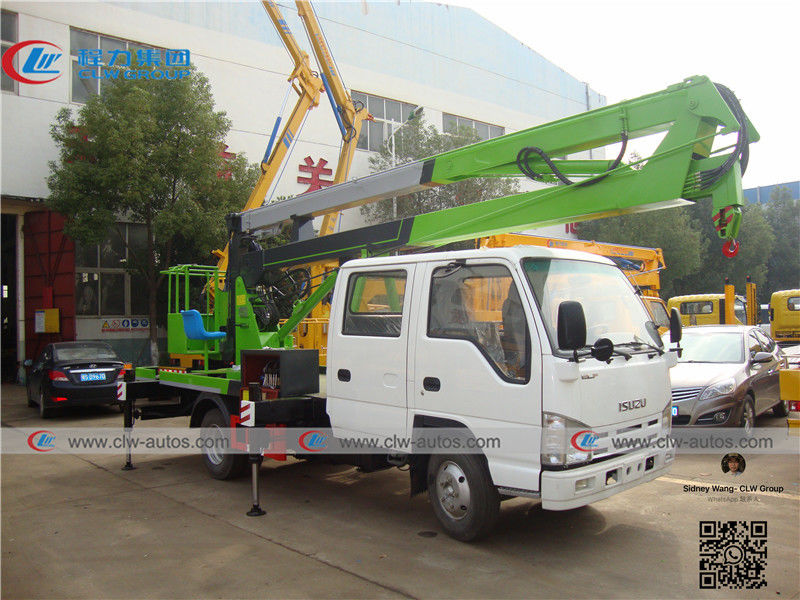

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm

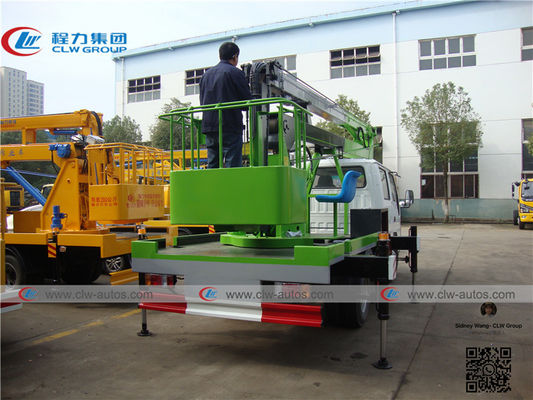

تصویر بزرگ : ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,SGS,BV
شماره مدل:	CLW5644

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	35-40 روز
شرایط پرداخت:	D/A، D/P، Western Union، MoneyGram
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، ISUZU، JAC، JMC، FORland، foton	ارتفاع بلند کردن (M):	10 متر، 12 متر، 14 متر، 16 متر،
ارتفاع عملیاتی (متر):	12 متر، 14 متر، 16 متر، 18 متر	حالت کنترل:	دسته کنترل/کنترل را حذف کنید
مدل محرک:	4x2; 4x4; مطابق با طراحی بالا و درخواست مشتری	رنگ:	قرمز/زرد/آبی/سبز/اختیاری
برجسته کردن:	16M Truck Mounted Aerial Work Platform,ISUZU Truck Mounted Aerial Work Platform,ISUZU Truck Mounted Aerial Lift , ISUZU Truck Mounted Aerial Work Platform , ISUZU Truck Mounted Aerial Lift

ISUZU 4X2 16meters Truck Mounted Aerial Work Platforms Folded Arm Aerial Work Platform Truck Aerial Bucket Truck

Description

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Specifications

Items			Parameter
Work Platform Parameter	Outline Dimension (LWH)		8400x2270x3450
	Rated Load of Bucket		200kg
	Max. Working Height		16m
	Max. Working Radius		8.5m
	Main Feature: 1. Electro-hydraulic proportional control, excellent micro-maneuvering performance 2. Control box at both turret and platform 3. Limit switch and alarm 4. Large outrigger span, outrigger can be operate individually 5. Emergency descent power 6. Safety interlock
Bucket Body	Cargo Thickness	Side	4mm
		Floor	5mm
Chassis	Recommend Chassis Brand		ISUZU (Other brand for optional)
	Drive Mode		4x2
	Tire type		7.50-16 tire
	Tire No.		6+1 units
	Max speed		105 km/h
	Cabin: 1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition installed 4. Single row and Double row for optional, 2 or 5 seats 1-DIN AM/FM CD/MP3 Player
Engine	Power		140 kw / 190hp
	Fuel type		Diesel
	Emission Standard		Euro 4 or 5
Gearbox	Control type		ISUZU MLD 6-shift Manual Gearbox
	Gear		6 forward & 1 reverse

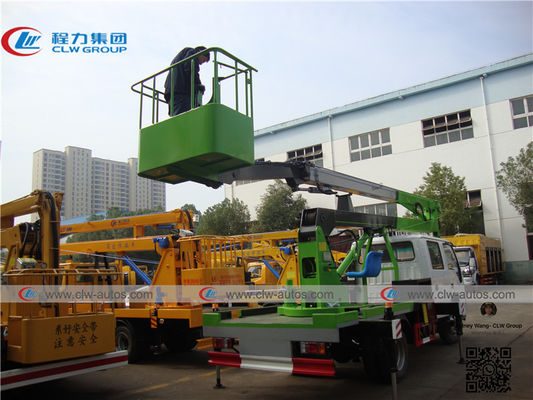

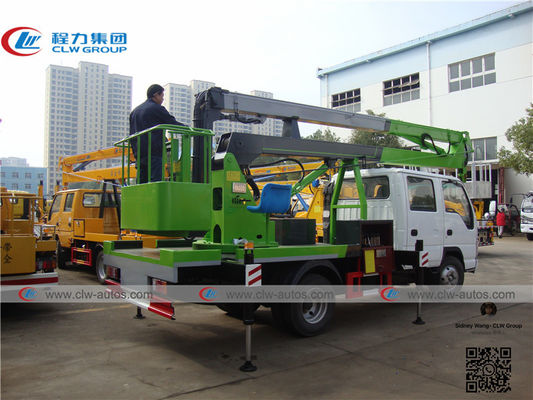

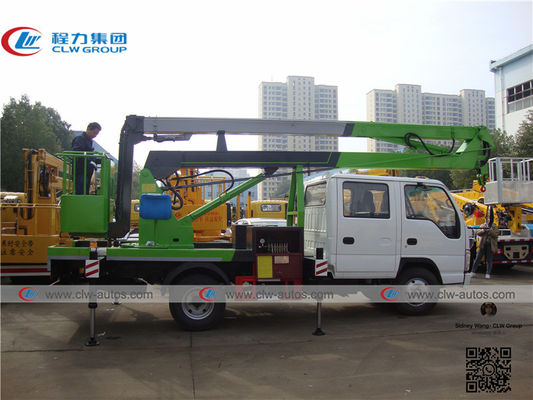

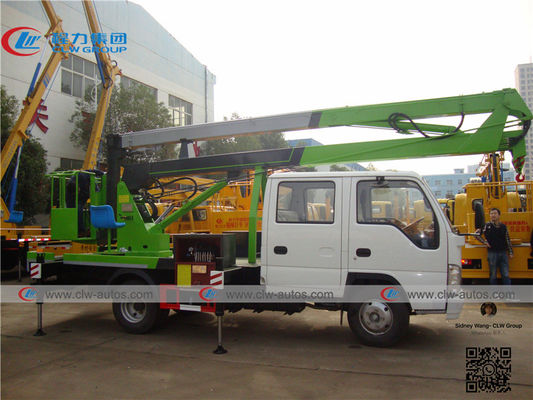

Reference photos

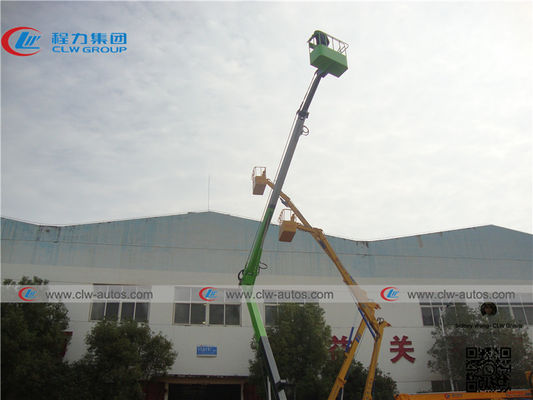

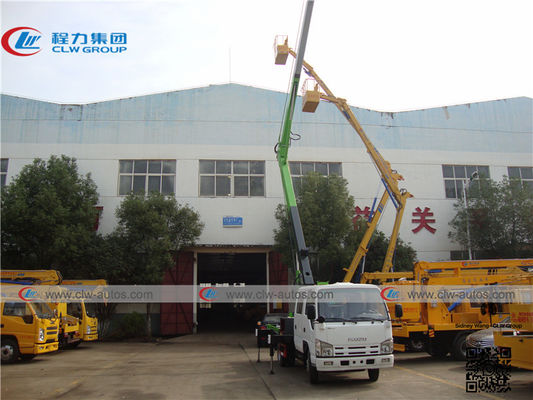

Working show

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm 5

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm 6

Bulk orders

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm 7

Factory overview

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm 9

ISUZU 4x2 16M Truck Mounted Aerial Work Platform With Folded Arm 10

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
