10000L 15000L 20000L Cleantech LPG Gas Storage Tank

تصویر بزرگ : 10000L 15000L 20000L Cleantech LPG Gas Storage Tank

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW
گواهی:	CCC ISO ASME
شماره مدل:	CLW7856

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	15,890-24,850usd
جزئیات بسته بندی:	بسته برهنه
زمان تحویل:	ظرف 30 روز پس از دریافت پیش پرداخت
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	200 واحد در ماه

مخاطب

توضیحات محصول جزئیات

خدمات پس از فروش ارائه شده است:	تامین قطعات یدکی و پشتیبانی مهندسی	حجم تانکر:	15CBM/15000Liters/7MT/7ton
ماده مخزن:	Q345R/SA516	مواد بارگیری:	پروپان/گاز نفتی مایع/LPG
فشار طراحی:	1.77MPa	چگالی متوسط:	20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³
تست خواص مکانیکی:	تست کشش، استحکام، ضربه	ضخامت پوسته و صفحه انتهایی:	10-12 میلی متر
وضعیت:	جدید چاپ شده	رنگ:	مشتریان
استفاده کنید:	LPG، LPG / پروپان	گارانتی:	1 سال
برجسته کردن:	Cleantech LPG Gas Storage Tank,10000L LPG Gas Storage Tank,15000L LPG Storage Tank , 10000L LPG Gas Storage Tank , 15000L LPG Storage Tank

10000liters 15000liters 20000Liters Cleantech LPG Gas Storage Tank Gas plant for Africa Southeast Asia South America

Product Description

1. Storage medium: LPG, Liquid ammoina and Aether etc.

2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 20m³ LPG skid station.

3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

Specifictions

Technical Specification
Item	Name		Unit	Parameter
1	Product model		/	LPG storage tank
2	Vessel type		/	On the ground
3	Tank Volume		m3	15
4	Filling medium		/	LPG / propane gas
5	Filling coefficient		Kg/ m³	420
6	Tanker material		/	Q345R
7	Overall dimension		mm	622418202410
8	Tank inner diameter		mm	1800
9	Thickness	End plates	mm	12
		Shell body	mm	10
10	Curb weight		kg	3920
11	Filling medium weight		kg	5985
12	Corrosion allowance		mm	1
13	design pressure		Mpa	1.77
14	Hydrostatic test pressure		MPa	2.22
15	Designing temperature		°C	-19~50
16	Produce Manufacturing standards		/	GB150-20
17	Certification		/	ISO 9001-2015
Production process control			1. Steel Plate Cutting & Rolling
			2. Tanker Body Welding
			3. X-ray Welding Seam Detection
			4. Whole Tanker Heat Treatment
			5. Rust, Sand Blasting, Puttying
			6. Water Pressure Test
			7. Painting: primer, finish, lacquer

Products Show

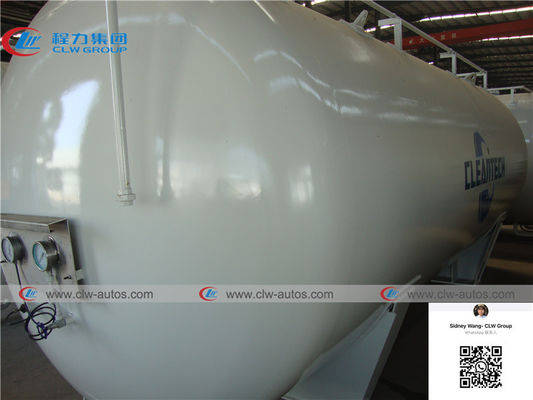

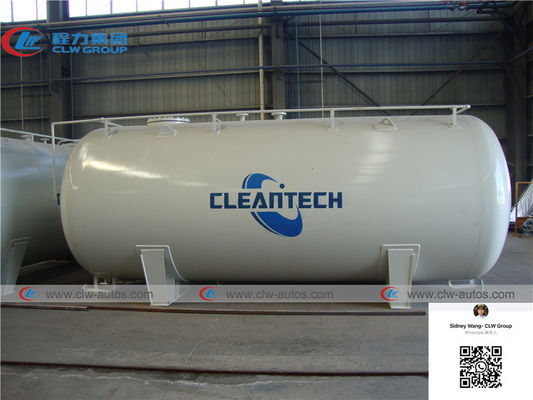

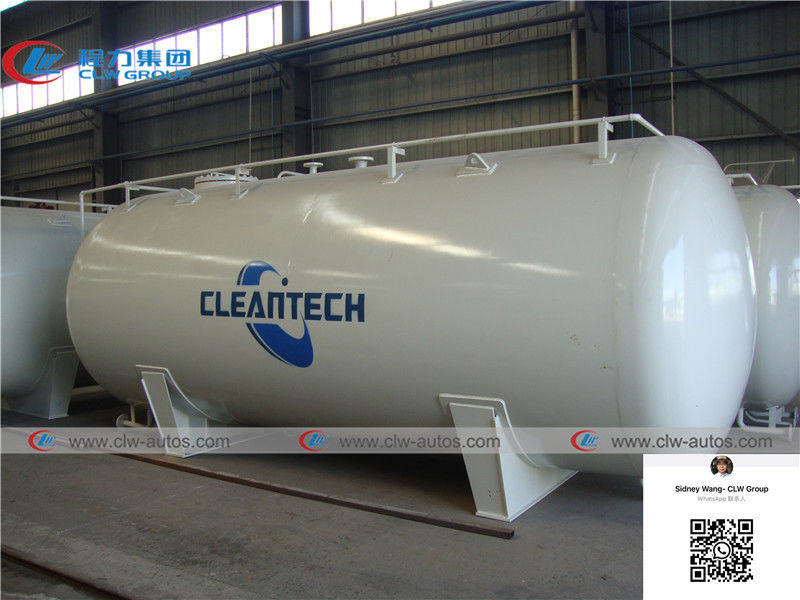

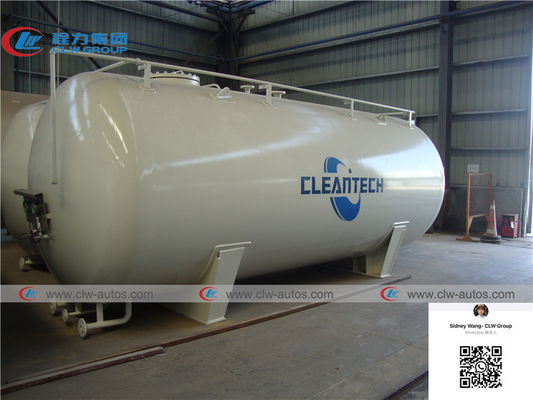

10000L 15000L 20000L Cleantech LPG Gas Storage Tank 3

Factory overview

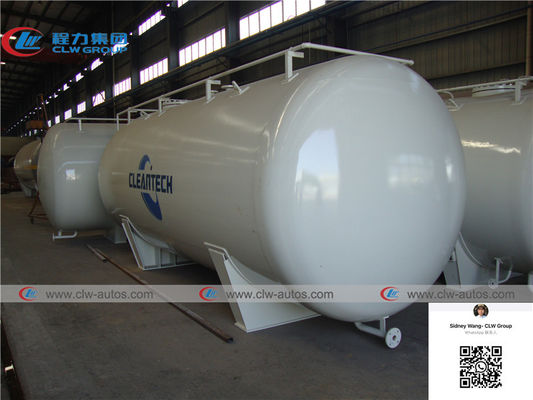

10000L 15000L 20000L Cleantech LPG Gas Storage Tank 5

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
