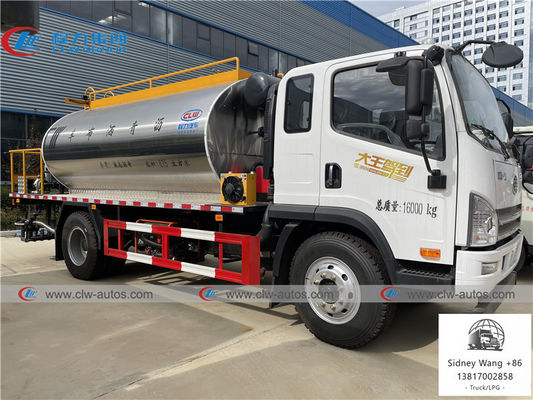

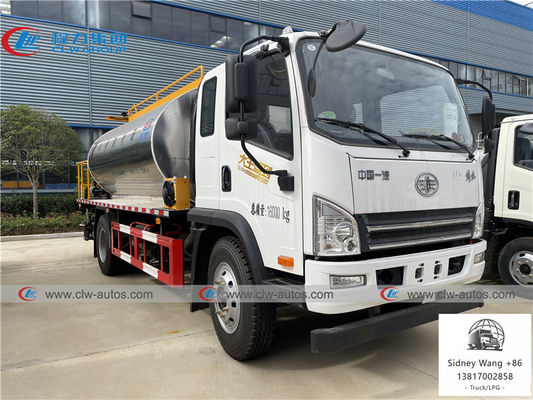

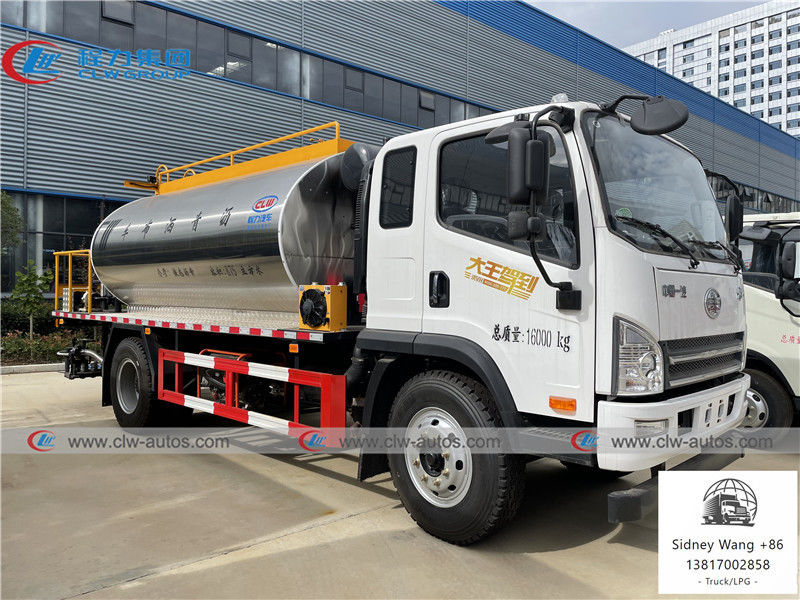

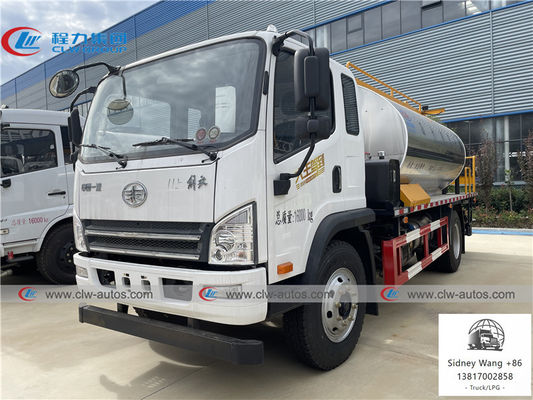

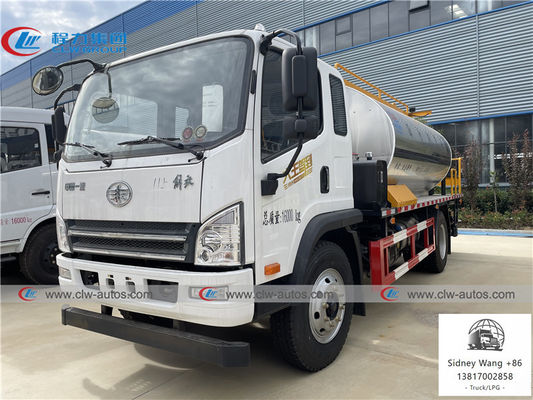

China FAW brand 10,000Liters 10m3 Asphalt Distributor truck Bitumen Spreader Truck
Description
1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Specification
| Chassis |
| Cab |
FAW brand, 3 seats, one and a half row |
| Driving Type |
4*2 Left hand driving( right hand for option) |
| Overall Dimension (mm) |
8200*2500*3250 |
| GVW (kg) |
16000 |
| Truck Tare Weight (kg) |
9700 |
| Tank Capacity (L) |
10,000 |
| Wheelbase (mm) |
3950 |
| F/R track base (mm) |
1920/1800 |
| F/R overhang (mm) |
1450/2800 |
| Approach/Departure Angel (°) |
20/10 |
| Tire |
9.00-20 |
| Clutch |
Single-plate dry diaphragm spring clutch |
| Steering |
Hydraulic steering with power assistance |
| Max Speed (km/h) |
95 |
| Gear Box |
6 forward speed, 1 reverse speed |
| Bridge |
Front axle |
4000kg |
| Rear axle |
6500kg |
| Engine |
Brand |
CUMMINS |
| Model |
B170-33EGR |
| Fuel Type |
Diesel fuel |
| Emission Standard |
Euro III |
| Type |
Water-cooled four-stroke,, direct injection, turbocharged |
| Exhaust (ml) |
5900 |
| Max output power/rotate speed (hp /rpm) |
170/2500 |
| Max torque/rotate speed (N.m/rpm) |
560/1300 |
| Braking System |
Service Brake |
Compressed air brake |
| Park Brake |
Spring energy |
| Auxiliary Brake |
Engine exhaust brake |
| Electric System |
24v |
| Asphalt Spraying System |
| Spray width |
4500mm |
| Spray Value |
0.5-3.0(Kg) |
| Hydraulic pump model |
CBQ-F540 |
| Hydraulic motor |
L2F63W2P2 (Liyuan Brand) |
| Insulation Thickness |
50mm |
| Nozzles |
34 |
| Burner |
G20(Riello) |
| Asphalt pump |
CB450 |
| Generator(Converter) |
YGBT2500 |
Reference Photos
Drawing
Working Scene
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of bitumen distribution truck I can order from your company?
A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
