Left Hand Driving Foton 4x4 113HP Water Bowser Truck

تصویر بزرگ : Left Hand Driving Foton 4x4 113HP Water Bowser Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC, BV, SGS
شماره مدل:	CLW0570BP

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	کشتی فله برهنه و موم شده
زمان تحویل:	30-35 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	دانگ فنگ، سینوتروک، فوتون، ایسوزو، فاو، شاکامن	حالت محرک:	42 44 62 84 و غیره طبق درخواست مشتری.
ماده مخزن:	Q235B و فولاد ضد زنگ برای اختیاری	اندازه مخزن:	5CBM؛ 8CBM; 10CBM; 12 CBM؛ 15 CBM
ظرفیت مخزن:	5 تن 8t; 10 تن 12 تن 15 تن	ضخامت مخزن:	4 میلی متر؛ 5 میلی متر؛ 6 میلی متر
جریان پمپ آب:	20m³/h	زمان انحراف آب:	<15 دقیقه
ابعاد سمپاش:	11005001700 میلی متر	برد توپ آب پاش:	30 متر
مصرف آب:	0.8-1 متر مکعب در ساعت	عمق مکش آب:	7 متر
عرض پراکنده آب:	15 متر	لوگو و نقاشی:	طبق درخواست مشتری
زمان تحویل:	30-35 روز کاری	گارانتی:	1 سال
برجسته کردن:	Foton Water Bowser Truck,4x4 Water Bowser Truck,Foton Water Sprinkler Truck , 4x4 Water Bowser Truck , Foton Water Sprinkler Truck

**Foton 4*4 Water Delivery Tanker Truck Watering Cart Transport Sprinkler Spray Tank Bowser Truck**

Product Description

1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.

Product Specification

General Technical Parameters
Overall Dimension			700023002500(mm)
Gross Vehicle Weight			8280(Kg)
Curb Weight			3785(Kg)
Chassis Specification
Chassis Brand		Foton
Drive model		4*4
Cabin		Single, Left Hand Driving
Number of Passengers		3 (2 in cabin, 1 in working platform)
Engine	Model	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Power	83KW/113HP
	Emission standard	EURO 2or 3
	Displacement	3856(ml)
	Fuel type	Diesel
Gearbox		5Forwards & 1Reverse
Brake System		Air break
Wheel Base		3800(mm)
Front/Rear Axle Loading		2700/5000(Kg)
Tire		8.25R20, 6pcs + 1 spare tire
Max Driving Speed		90(km/h)

Superstructure Specification
Water Tanker	Dimension	420019001300(mm)
	Material	Q235B carbon steel
	Tanker volume	5500Liters
	Thickness of Tanker	4mm
	Water Pump Material	carbon steel
	Vertical suction	7m
	Sprinkling width	15m
	Range of Water Gun	30m
	Pump Flow	20m³/h
	Range of Water Pump	90m
Other Configuration	High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.
Options	Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

Reference Photos

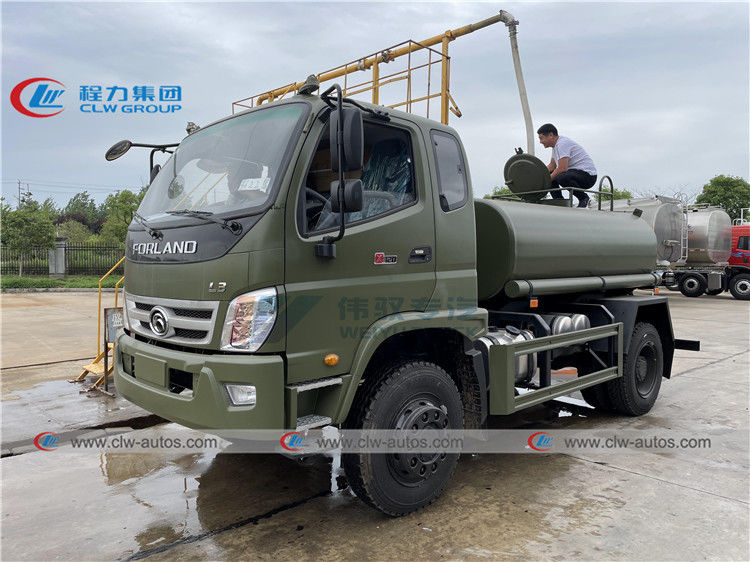

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 0

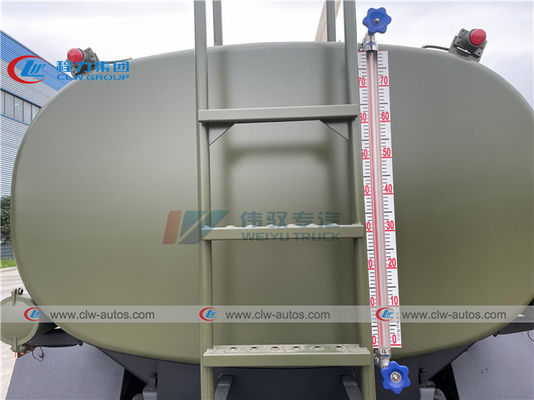

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 1

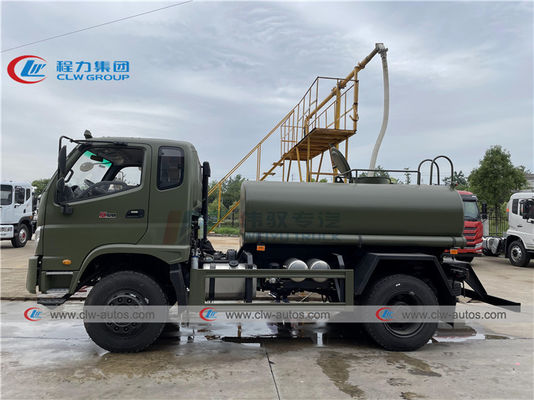

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 3

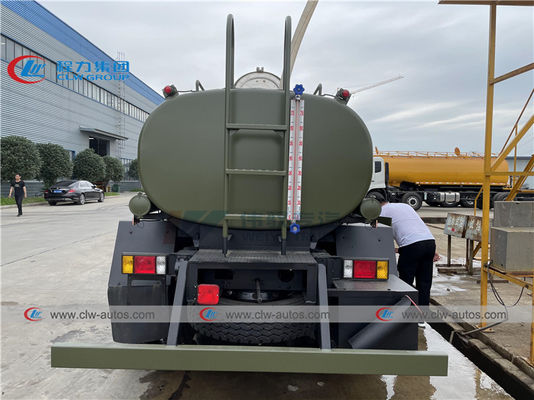

Left Hand Driving Foton 4x4 113HP Water Bowser Truck 4

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
