Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t
Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t

تصویر بزرگ :  Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC SGS BV
شماره مدل: CLW5076BGP

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
برند کامیون: دانگ فنگ، ISUZU، Howo، Foton، JAC و غیره فرمان: LHD، Rhd، فرمان چپ، فرمان راست
کابین: 2 ~ 3 نفر با تهویه مطبوع موتور: 106-160 اسب بخار
اندازه کلی کامیون: 5995*2300*2350mm نوع ویرانگر: یک یدک کش-یک-یک-بکسل-دو
وزن بلند کردن حداکثر: 3 تن؛ 4 تن؛ 5 تن حداکثر وزن بکسل: 3 تن؛ 4 تن؛ 5 تن
سیستم هیدرولیکی: برند بین المللی معروف طناب وینچ: 25 متر، 25 متر
لوگو و رنگ: طبق درخواست مشتری زمان تحویل: 30-35 روز کاری
گارانتی: 1 سال
برجسته کردن:

Foton Aumark Underlift Tow Truck,Underlift Tow Truck 6t,Foton Aumark Wrecker Tow Truck

,

Underlift Tow Truck 6t

,

Foton Aumark Wrecker Tow Truck

Foton Aumark 3tons Tow Truck Underlift Wrecker 4t 5t 6tons Wrecker Body Flatbed Platform Wrecker Truck with Best Price













Product Description

1) 4Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Foton Brand Chassis for Euro 2 or Euro 3 or Euto 4 Emission

3) Spare parts of 4tons wrecker tow truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing elements;
  • Strengthed Checked platform.

Product Specification

General Technical Specification
Overall Dimension 5995x2300x2350(mm)
Gross Vehicle Weight 4495 (Kg)
Curb Weight 4100(Kg)
Chassis Specification
Chassis Brand Foton
Drive model 4*2
Cabin Single, Left Hand Drive
Engine Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 95KW/129HP
Emission standard EURO2 or 3
Displacement 2780(ml)
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System Pneumatic(Air break/exhaust brake)
Wheel Base 3360(mm)
Front/Rear Axle Loading 2500/5000(Kg)
Approach/Departure Angle 24/12(°)
Tire 7.00R16, 6pcs + 1 spare tire
Max Driving Speed 98(km/h)
Superstructure Specification
Platform Organ Dimension 4200*2320(mm)
Rear manual flip board length 1200(mm)
Material Q235 carbon steel
Max Loading capacity 3000(kg)
Winch Quantity 1
Winch rating towing capacity 4000(kg)
Length of steel rope 25(m)
Speed of winch 3.23~8 (m/min)
Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.
Options Caution light, air condition,inlet valve.

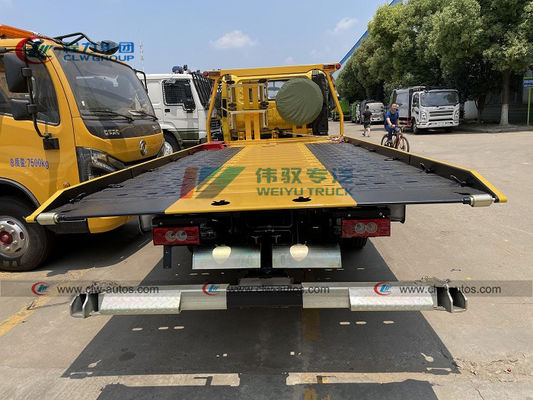

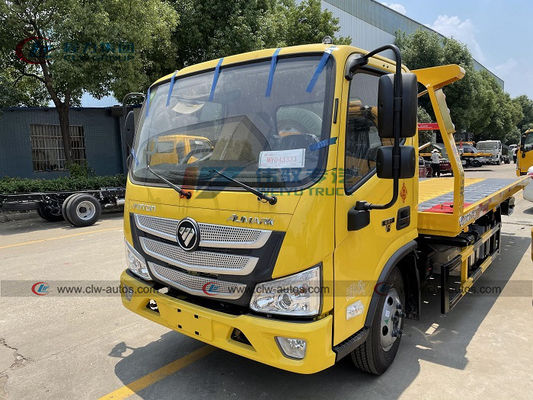

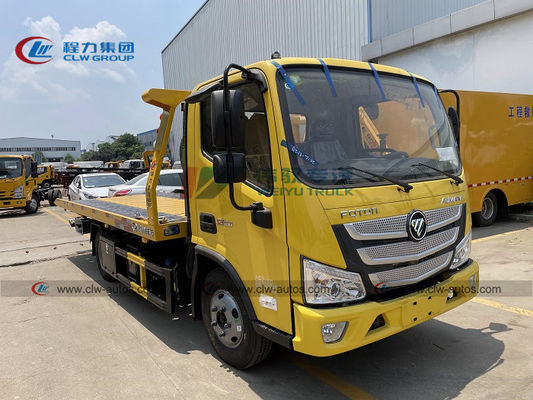

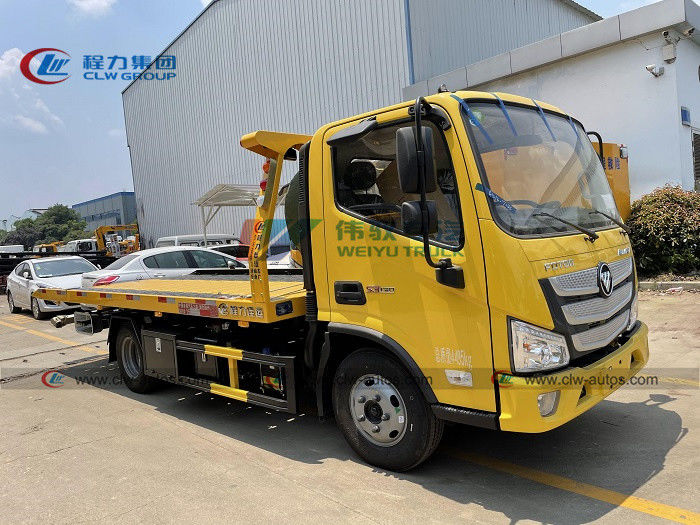

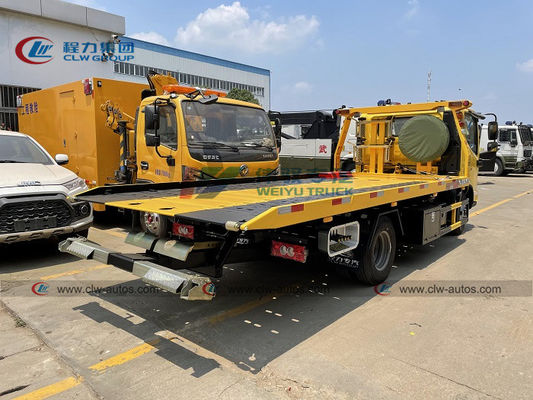

Reference Photos

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t 0

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t 1

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t 2

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t 3



Main Structure Diagram

Left Hand Drive Foton Aumark Underlift Tow Truck 3 4 5 6t 4



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora
Lea for more details+86 155 2791 1810.



FAQ



Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
