Dongfeng 6x4 Road Cleaning Water Sprinkler Truck

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck
Dongfeng 6x4 Road Cleaning Water Sprinkler Truck Dongfeng 6x4 Road Cleaning Water Sprinkler Truck Dongfeng 6x4 Road Cleaning Water Sprinkler Truck Dongfeng 6x4 Road Cleaning Water Sprinkler Truck Dongfeng 6x4 Road Cleaning Water Sprinkler Truck Dongfeng 6x4 Road Cleaning Water Sprinkler Truck

تصویر بزرگ :  Dongfeng 6x4 Road Cleaning Water Sprinkler Truck

جزئیات محصول:

محل منبع: سوئیژو، چین
نام تجاری: CLW
گواهی: CCC, BV, SGS
شماره مدل: CLW0570BP

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: کشتی فله برهنه و موم شده
زمان تحویل: 30-35 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
نام تجاری: دانگ فنگ، سینوتروک، فوتون، ایسوزو، فاو، شاکامن حالت محرک: 4*2 4*4 6*2 8*4 و غیره طبق درخواست مشتری.
ماده مخزن: Q235B و فولاد ضد زنگ برای اختیاری اندازه مخزن: 5CBM؛ 8CBM; 10CBM; 12 CBM؛ 15 CBM
ظرفیت مخزن: 5 تن 8t; 10 تن 12 تن 15 تن ضخامت مخزن: 4 میلی متر؛ 5 میلی متر؛ 6 میلی متر
جریان پمپ آب: 40m³/h زمان انحراف آب: <15 دقیقه
ابعاد سمپاش: 1100*500*1700 میلی متر محدوده سمپاش: 30 متر
مصرف آب: 0.8-1 متر مکعب در ساعت لوگو و رنگ: طبق درخواست مشتری
زمان تحویل: 30-35 روز گارانتی: 1 سال
برجسته کردن:

Dongfeng 6x4 Water Sprinkler Truck,Water Sprinkler Truck,Dongfeng 6x4 Road Cleaning Truck

,

Water Sprinkler Truck

,

Dongfeng 6x4 Road Cleaning Truck

China Dongfeng 6*4 Road Cleaning Water Sprinkler Tanker Truck









Product Description

1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option;
3. Reliable and high quality water pump;
4. Optional for insulation layer which is suitable for warm water delivery;

5. All welding lines are polished and grided to ensure a bright and clean inner water tank;

6. Water tank can be divided into several compartments according to your request with independent discharging outlet and loading inlet.



Product Specification

Chassis Parameters
Overall dimension(mm) 8650*2500*3350
Chassis DONGFENG, LHD or RHD
Drive type 4*2
Wheelbase(mm) 4500
Curb weight(Kg) 9500
Engine Horse power 190 hp
Fuel type Diesel
Displacement 6200 ml, Euro III
Gearbox 8 forwards gear, 1 rear gear
Tire 10.00R20 , 6 pcs+1 spare tire
Tank 1. Tank volume: 15000 liters
2. Material of the tank: round tank is made by 6mm Stainless steel
3. One water pump, with suction and pushing function
4. Manhole: DN450, 1 piece
5. Discharge valve: 1 piece in the rear body

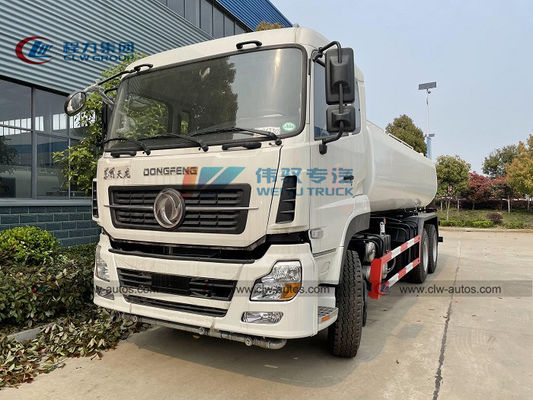

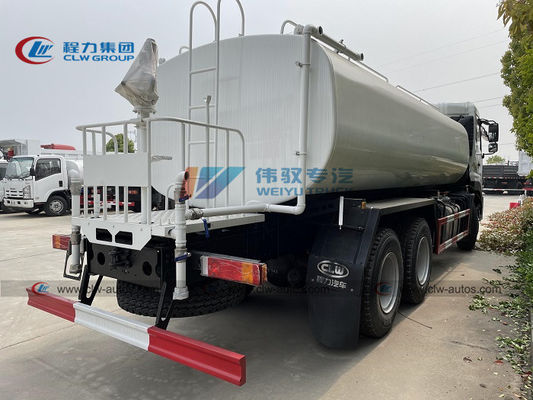

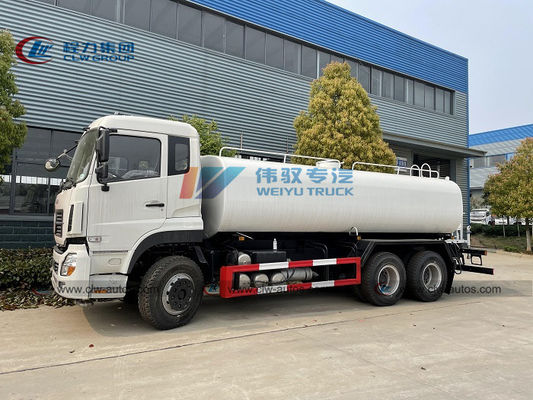

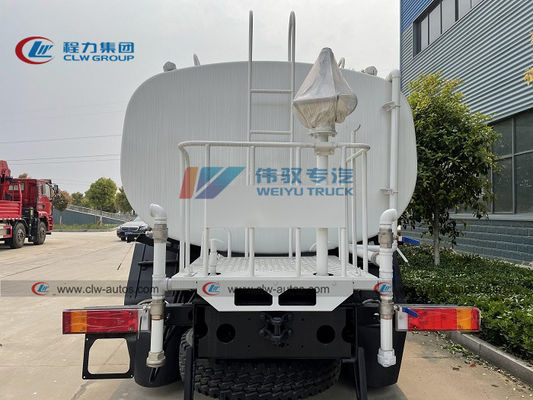

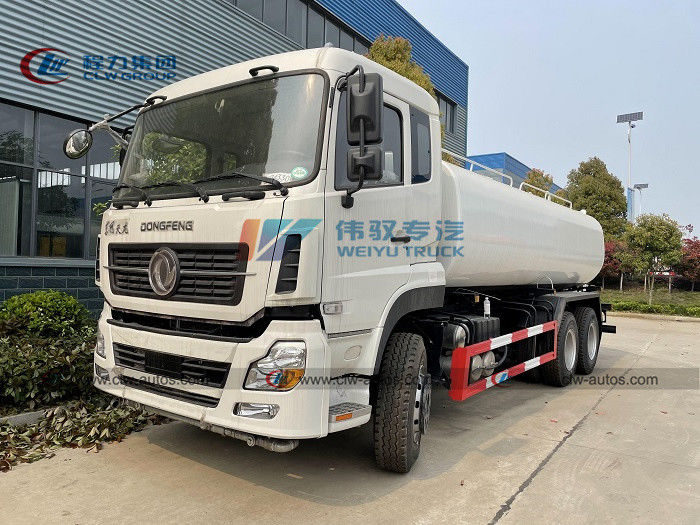

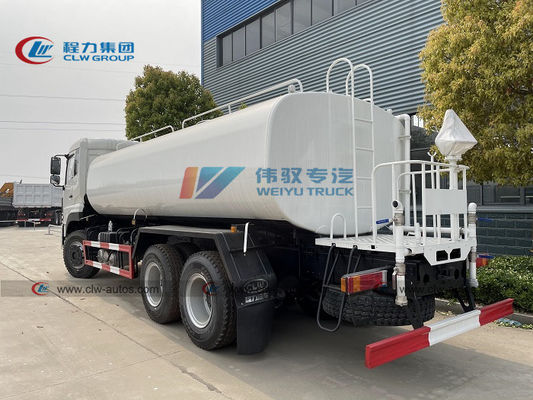

Reference Photos

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 0

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 1

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 2

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 3

Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 4
Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 5
Dongfeng 6x4 Road Cleaning Water Sprinkler Truck 6


After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact
Lea for more details+86 155 2791 1810.


FAQ

Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
