Excellent 40, 000 Liters 3-Axles 40cbm Fuel Tanker Semi Trailer
Product Description
1- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6- High-intensity kingpin and landing legs.
7- Top gemany brand BPW axle or Chinese brand FUWA axles.
8- Durable and long term service life.
Product Specification
| Main Dimensions |
| Overall Length |
Approx.11800mm |
| Overall Width |
2500mm |
| Overall Height |
Approx.3650mm |
| Tare Weight |
Approximate 10900KGS |
| Loading Capacity |
40m3 |
| Tank Body |
| Shape |
Mono block Cylinder |
| Total Volume(m3) |
40CBM |
| Tanker Body Material |
5mm Carbon Steel Q235 |
| End plate |
6mm Carbon Steel Q235 |
| Lifting Ladder |
Including Top walkway and backside steel material |
| Manhole cover |
5 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves |
| Bottom Valve |
5 sets DN100 Pneumatic Bottom Valve,Pneumatic control for each compartment |
| Discharging valve |
5 sets DN100mm API discharging valves |
| Discharging Pipe |
4"rubber hose |
| Chassis |
| Main Beams |
Special design I beam, Steel Saddle support 8 No's each side. |
| Axle |
3 axles, Front axle is liftable |
| BPW brand 13 Ton |
| Landing Gear |
JOST brand |
| King Pin |
JOST Brand 2'' or 3.5" bolt-in king pin;interchangeable. |
| Suspension |
heavy duty leaf spring type, Front axle with BPW brand air bag |
| Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Tire |
385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 9 pieces |
| TOTAL standard Lighting system |
1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes
2. Back lights:Inserted inside rear bumpers and protected.
3. Stop light:Additional LED stop lighting.
4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and right sides.
5. Indicator: In the rear side.
|
| Other TOTAL Design and parts |
1. Dust Board to Cover the Tires
2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,linked to mechanism
for automatic handrail lifting.
3. Walkway with fold-able handrail. (air operated)
4. Tool Box
5. Double Spare Tire Carrier (Winch Type).
6. Anti-skid design on the whole available surface
7. 2 No's of fire extinguisher holder. With 2 No's 9KG extinguisher.
8. Drip collecting system(slope-by directing liquid to a on/off tap)
9. Earthing plots(Qty 4, front left/right+back left/right,in brass)
10. A yellow, reflective safety line 5cm wide shall be placed along both side of tank shell
11. With ABS System
12. Epoxy coated inside Tanker
13. Aluminum Alloy Pipeline suitable for transport JET A1
|

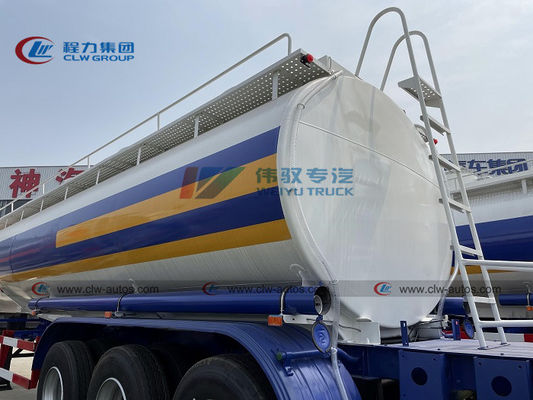

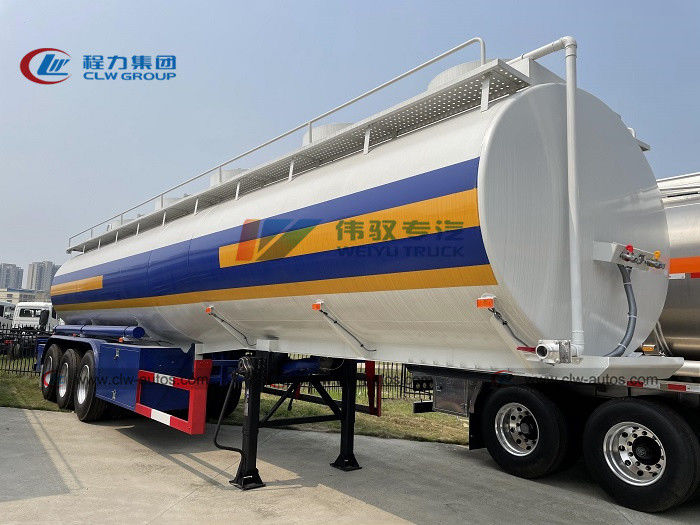

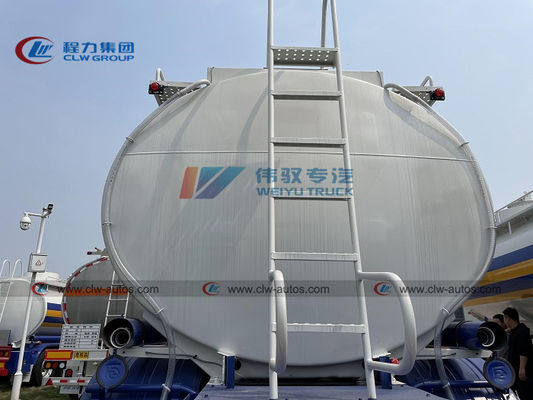

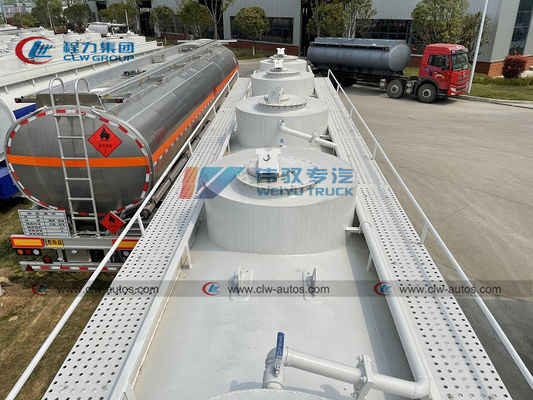

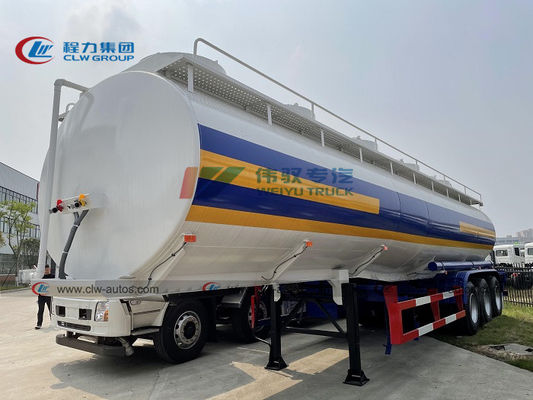

Reference Photos
Main Structure Diagram
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
