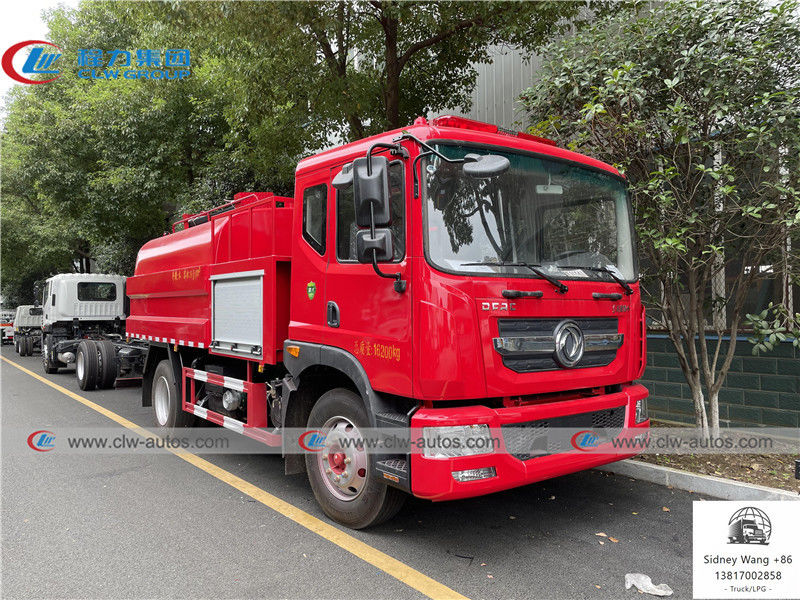

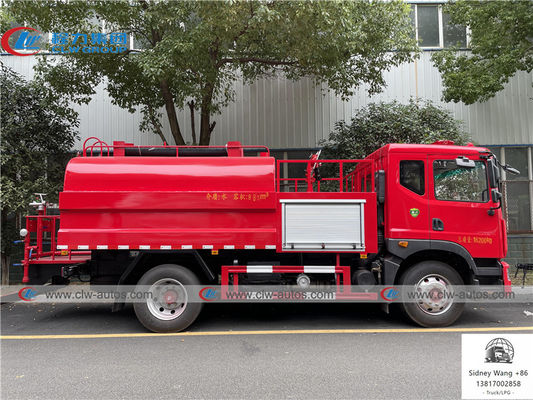

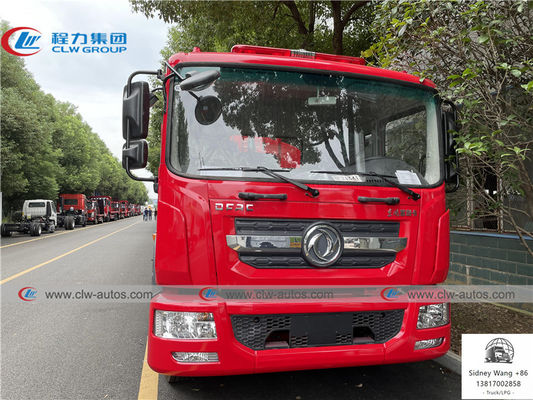

Dongfeng DFAC Duolica D9 model water tanker 10000L 10CBM fire sprinkler truck water spray truck
Description
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment and for fire brigade.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.

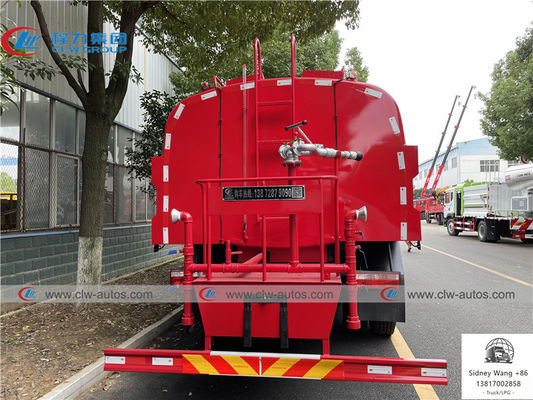

The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
5. Sprinking Width of portable water truck :＞14M

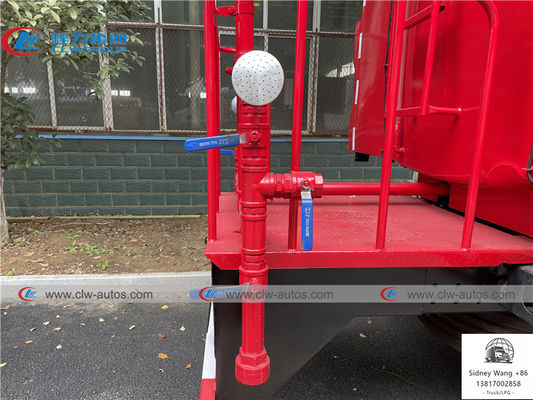

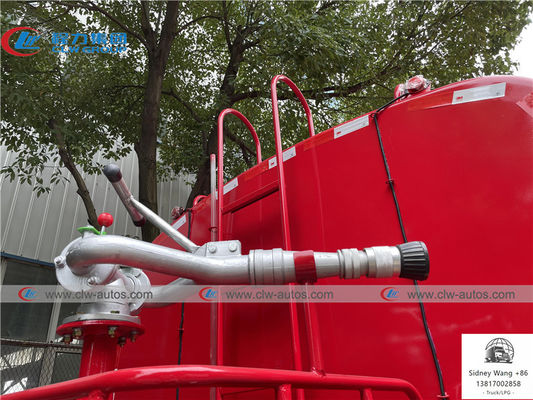

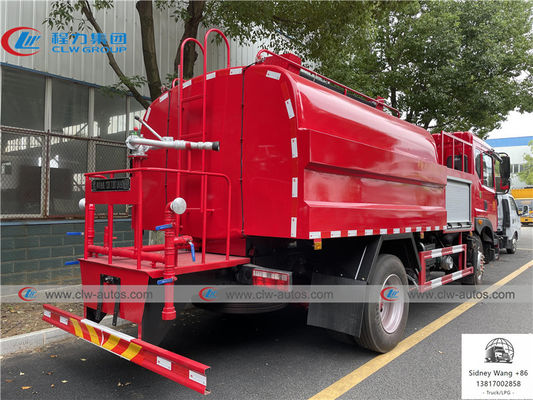

6. Rear working platform with water cannon range of portable water truck :30 meters
7. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
Specifications
| product name |
Dongfeng water tanker 10,000L fire sprinkler truck |
| Total mass (kg) |
12400 |
Tank volume (m3) |
9-10 |
| Rated mass (kg) |
6270,6205 |
Dimensions (mm) |
7360X2480X3150 |
| Curb weight (kg) |
6000 |
Cargo compartment size (mm) |
XX |
| The number of passengers in the cab (person) |
2,3 |
Maximum loading weight(kg) |
10,000 |
| Approach angle/departure angle (°) |
17/12 |
Front suspension/rear suspension (mm) |
1250/2160 |
| Axle load (kg) |
4300/8100 |
Maximum speed (km/h) |
88 |
| Remarks: |
Remarks: The vehicle is equipped with tank body, piping system, operating system, sprinkler pump, power take-off,
and the water pump is driven by the transmission shaft to complete the sprinkling work;
the effective volume of the tank: 9-10 cubic meters, the overall size of the tank (long/long axis)
/Short axis) The tank demension is (mm): 3800/1900/1200.
|
| Chassis technical parameters |
| Chassis Brand |
Dongfeng |
Chassis Model |
Duolica D9 |
| Manufacturer |
Dongfeng Motor Group Co., Ltd.
|
| Number of axes |
2 |
Number of tires |
6 |
| Wheelbase (mm) |
3950 |
| Tire specifications |
8.25R20, 9.00R20 |
| Number of leaf spring |
8/10+7 |
Front track (mm) |
1820 |
| Fuel type |
Diesel |
Rear track (mm) |
1800 |
| Emission standard |
GB18285-2005, GB17691-2018 Euro IV |
| Engine model |
Engine manufacturer |
Engine capacity |
Engine power |
| YCS04160N-60 |
Guangxi Yuchai Machinery Co., Ltd. |
4156 |
118kw/160hp |
Reference photos
Water Truck Diagram
Working Show
Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
