Dongfeng 6x4 13M3 Plastic Lined Acid Chemical Liquid Tank Truck

تصویر بزرگ : Dongfeng 6x4 13M3 Plastic Lined Acid Chemical Liquid Tank Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210819

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد کربن، فولاد ضد زنگ، آلیاژ آلومینیوم	نام محصول:	کامیون تانکر حمل و نقل اسید سولفوریک شیمیایی
نوع درایو:	6X4 10 WHEELS 10 WHEELER	مدل محرک:	فرمان چپ یا راست دست
ظرفیت بارگیری:	8000 لیتر، 10000 لیتر، 13000 لیتر، 8CBM، 10CBM، 13CBM	برند کامیون:	Sinotruk/Sinotruck HOWO، ISUZU، FAW، FOTON، jac
نوع تاک:	کامیون حمل و نقل اسید سولفوریک، کامیون مخزن مواد شیمیایی مایع	تجهیزات دیگر:	دریچه های شارژ/تخلیه API Manhole
تجهیزات:	داخل تانکر و دریچه ها با پوشش پلاستیکی	بار:	اسید سولفوریک مایع شیمیایی، غلیظ یا رقیق
ذخیره سازی:	مایع شیمیایی برای مصارف صنعتی	موتور:	برند ژاپنی، کامینز، ویچای، یوچای
گارانتی:	12 ماه برای 3 قسمت کلیدی (موتور، گیربکس، محور)	استاندارد انتشار:	Euro2/3/4/5، Euro III/Euro IV/ EuroV
برجسته کردن:	13M3 Liquid Tank Truck,Dongfeng Liquid Tank Truck,Dongfeng Chemical Tank Truck , Dongfeng Liquid Tank Truck , Dongfeng Chemical Tank Truck

China Dongfeng 6x4 13000Literss 13M3 Plastic Lined Chemical Liquid Tank Truck

Product Description

This chemical vehicle transporter belongs to heavy truck special vehicles and is used to transport chemical special liquids. The Dongfeng 6X4 chassis has comprehensively improved the performance of the entire vehicle system, especially in terms of technology, safety, economy, reliability, and comfort.

Tank material can be used: carbon steel lined or stainless steel plate. It is corrosion resistant and reduces the corrosive effects of chemical liquids on cans. The shape of the tank body is elliptical, square, round and can be chosen according to your needs. And, the tank can be divided into warehouses to meet your transportation diversification. In the interior of the bin, there are also multiple plastic anti-wave separators installed inside. Through the high-pressure air tightness test, the tank body has high strength, stable center of gravity, and safe and stable vehicle performance. We have adopted a special chemical pump to ensure the efficient operation of chemical vehicles.

The cab is strong and elegant.
2. The strong dynamics of the model and the fluidity of the streamlines
3. The three-dimensional east wind emblem of the two swords combined to show special style and give the rider a sense of success.
4. All-steel double-layer bumper fully demonstrates Dongfeng's love for customers and its appearance is even more beautiful
5. A pair of crystal headlights like the crowning touch
6. Dongfeng's new-generation 13-ton single and double-heavy axles absorb international technology and have the qualities of "anti-hit, high load, high torque and long life".

Traction system	6x4
Vehicle Main Dimensions	Overall dimension (L x W x H)mm	10780x2500x3400
	Cargo body dimension (L x W x H)mm	8000x2100x1300
	Wheel base (mm)	5350+1300
	F/R track base (mm)	1986/1860
	Approach/Departure angle(°)	18/13
Weight	GVW (kg)	25000
	Curb Weight	10805
	Load Capacity	14000
Max. speed (km/h)		80
Number of axles		3
Axle load (kg)		7000/18000
F/R over hang		1460/2620
Allowable passengers		3,2
Engine	Brand	Dongfeng
	Model	B210 33
	Max output power (kw)	210
	Emission standard	Euro 3
	Fuel consumption/100km (L)	32.75
Tire	Tire No.	10
Tire	Tire specification	10.00-20 18PR,10.00R20 18PR
Air condition	Yes	CD player, Radio, MP3
Tank body
Loading media	Fuel and Chemical Liquid Tank Truck
Tank Volume	13-18 CBM
Warranty	12 month, from the date of supply
Special configuration	1. Chemical liquid tanker truck material can choose stainless steel,line with PE, rotational molding, fiberglass, plastic containers (polyethylene, polypropylene), aluminum, carbon steel and other materials. 2. Chemical liquid truck can choose vacuum priming pump, gear pumps, chemical pumps, stainless steel pumps, flow meter (return to zero), the single count, double count. 3. Chemical liquid truck can be divided into few compartments, aliquot different mediums.

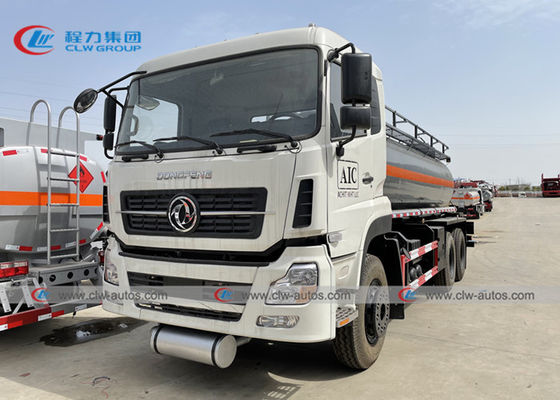

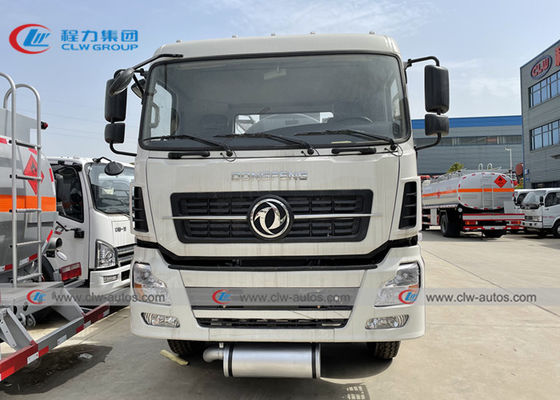

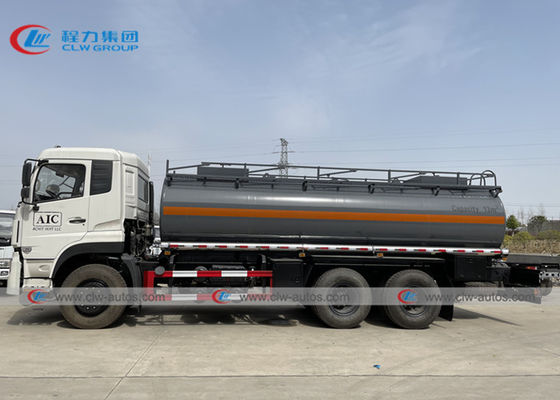

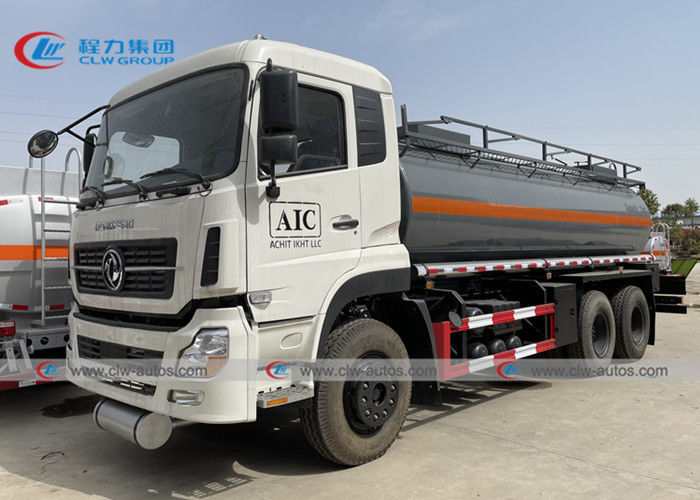

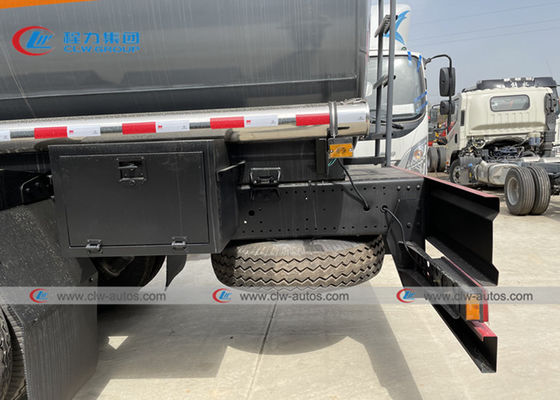

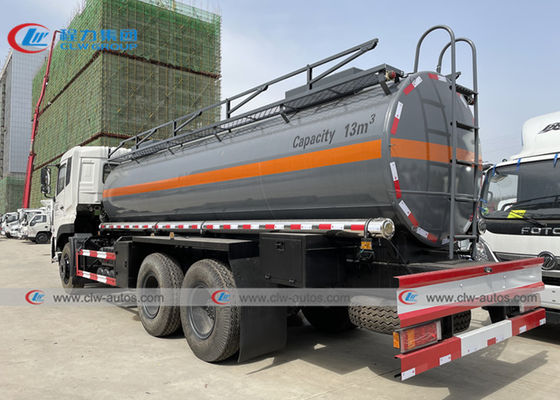

The detailed pictures of China Dongfeng 6x4 13000Literss 13M3 Plastic Lined Acid Chemical Liquid Tank Truck:

Dongfeng 6x4 13M3 Plastic Lined Acid Chemical Liquid Tank Truck 0

Dongfeng 6x4 13M3 Plastic Lined Acid Chemical Liquid Tank Truck 3

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
