SGS 3 Axle 40000L Hydraulic Auger Bulk Feed Delivery Truck

تصویر بزرگ : SGS 3 Axle 40000L Hydraulic Auger Bulk Feed Delivery Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210819

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد	محور:	FUWA، BPW، L1، نام تجاری
بارگذاری محور:	13 تن یا 16 تن	حمل:	خوراک فله علوفه دام گندم، غلات، غلات
ظرفیت مخزن:	40M3 45M3 46M3 48M3 50M3 56M3 60M3، 61.9M3	روش تخلیه:	انتقال پیچ برقی یا هیدرولیک
تجهیزات:	موتور ABB. ژنراتور قابل حمل،	دیگران:	کنترل از راه دور
تایپ کنید:	نیمه تریلر مخزن بار تغذیه	پین پادشاه:	2 ((50mm) یا 3.5 ((90mm) JOST
ارابه فرود:	JOST (C200T)	ظرفیت:	30 تا 60 CBM
برجسته کردن:	40000L Bulk Feed Delivery Truck,SGS Bulk Feed Delivery Truck,40000L Bulk Feed Truck , SGS Bulk Feed Delivery Truck , 40000L Bulk Feed Truck

3 Axle 40,000Liters Hydraulic Auger Feed Delivery Transport Tank Truck Trailer

Product Description

Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.

Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.

Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.

product Specification

Specification of Bulk Feed Trailer
Condition	New condition.
Walking Mechanism	Axles	3 Axles, FUWA.
	Overall Dimension(mm)	12955×2550×3980
	Wheelbase(mm)	7050+1310+1310
	Curb weight(kg)	12350
	Loading weight(kg)	34000
	Approach/departure angle(°)	-/13
	Front /rear overhang(mm)	-/2310
	Wheel track(front/rear)(mm)	1840/1840/1840
	Axle loading(front/rear) (kg)	-/23600
	Suspension	Mechanical suspension with 8-pcs leaf spring
	Braking System	Drum braking system, ABS, WABCO Emergency Relay Valve; T30/30+T30 air chamber.
	Rim & Tire	Quantity	12+1
		Specification	11R22.5
Body
Loading Medium	Bulk feed, grain,powder, etc.
Tank size	40' x 96" x153''(12.1x2.4x3.9 m )
Bulk Capacity	47 cbm
Material	Carbon steel
	Thickness: 4mm
Rust Resistance	Anticorrosive paint
Compartments	Quantity: 6 (customized)
Color	As your request
Logo	As your request
Accessories	1. Mobile conveyor 2. Vertical conveyor 3. Wire cabinets 4. Conveyor maintenance port 5. Horizontal conveyor 6. Discharging operation handle 7. Ladder 8. Electric motor (Wireless remote control is optional)

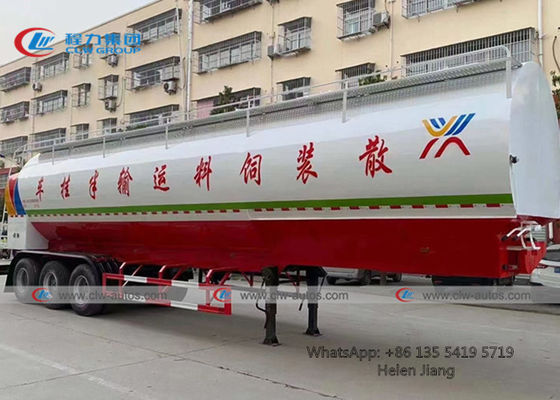

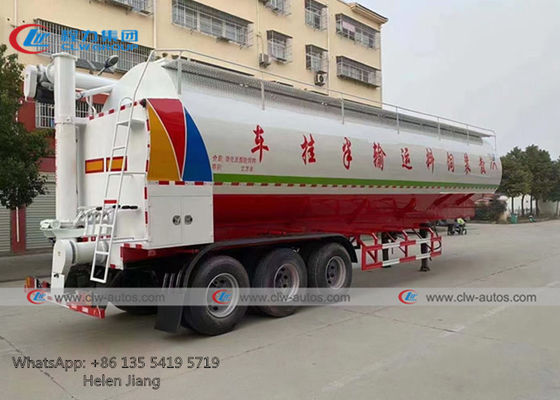

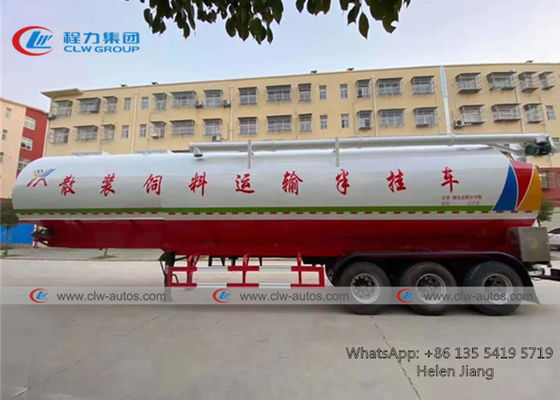

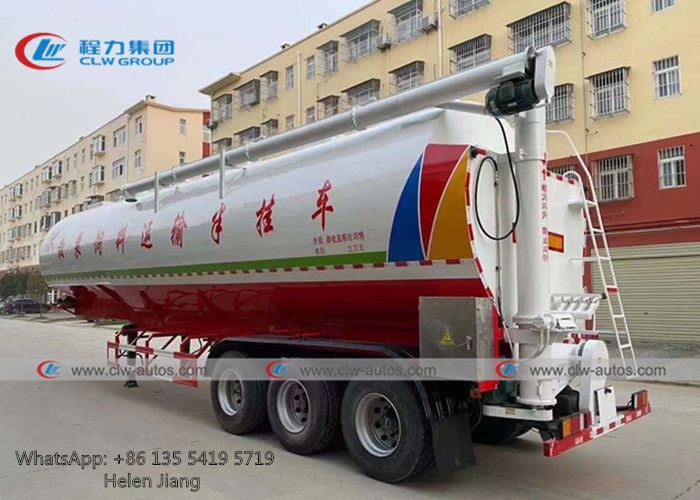

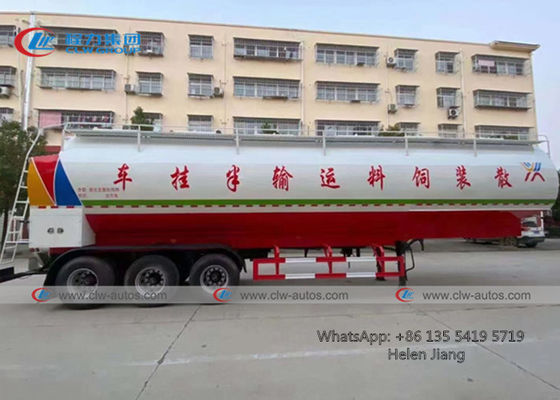

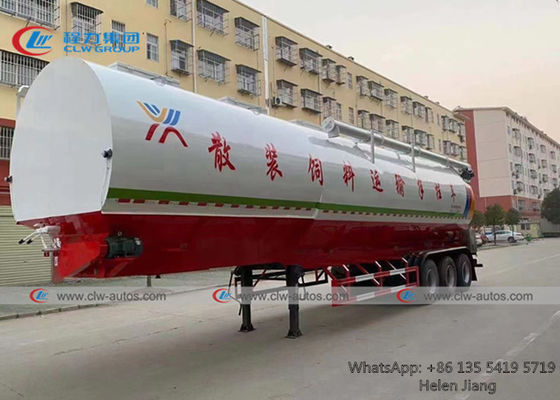

More detailed pictures for 3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
