ASME Explosion-Proof Moblie 10Tons LPG Refilling Plant 20,000Liters LPG Filling Station With 2 Filling Weight Scale
Product Description
lpg refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.
Feature
1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp
ChengLi Special Automobile Co.,Ltd, which is a big and famous special function vehicle manufacturer in China, We produce many kinds of special vehicles, also include LPG Storage tank, LPG filling plant, LPG container tank, and LPG Trailer. Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting. The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground. The LPG tank trailer volume from 30~60 m3 with two axles or three axles. The LPG tank truck with the volume from 5~35 m3.
LPG Storage tank for liquid gas in detail as following.
small lpg skid filling plant
lpg , lpg filling plant , lpg skid plant
Product Specification;
Specification of 10tons 20000L lpg refilling plant
Volume of Tank
20CBM(20,000liters) 10ton
Filling weight(Kg)
10000
Thickness of Shell (mm)
10 mm
Thickness of Endplate (mm)
12 mm
Tank Diameter (mm)
1800 mm
Tank Dimensions (mm) (length x width x height)
8174X1840X2410mm
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas ( Propane)
Design Pressure
1.71 MPa
Corrosion Allowance
1 mm
Medium Density
500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item
Specification
Specification of the Motor
Model
Chinese famous brand
Revolving speed
1470 r/min
Power
5.5 kw
Voltage
380 V
Protection grade
Anti explosive
Specification of the hydrocarbon Pump
Model
YQB15-5
Medium
Liquid petroleum gas
Speed
15 m3/h
Input and Output Diameter
50 mm
Working pressure
2.0 Mpa
Working temperature
-40ºC- 50ºC
Material
carbon steel

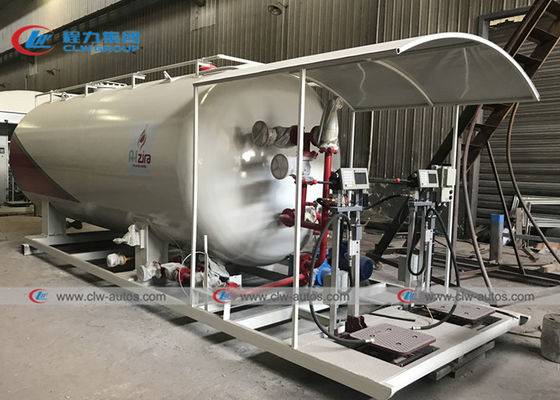

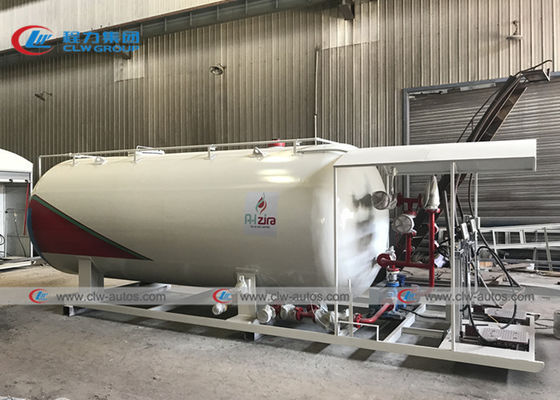

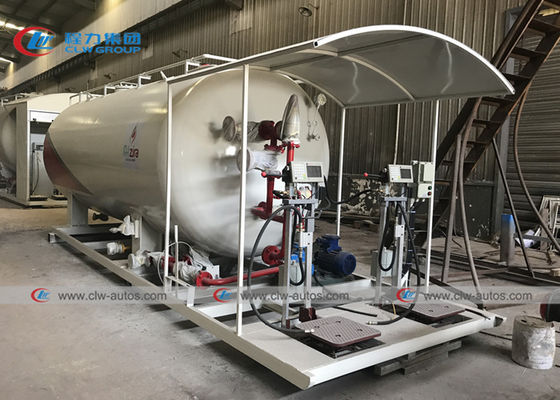

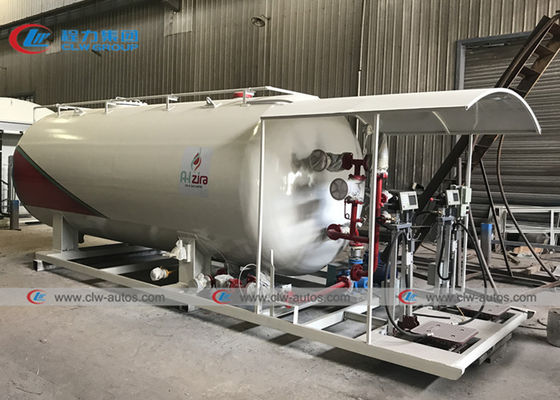

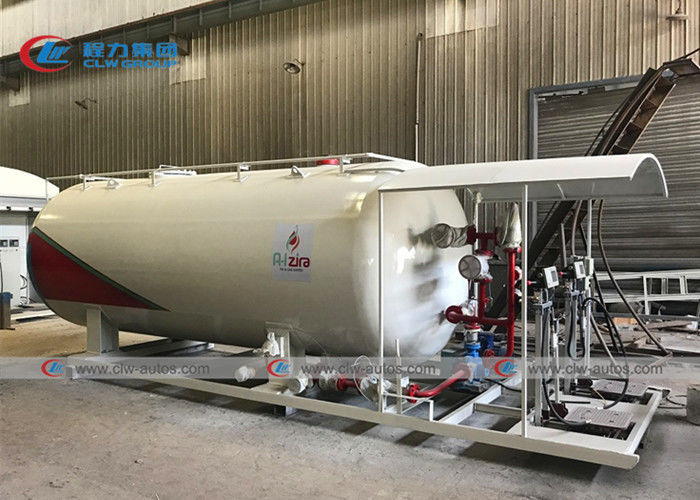

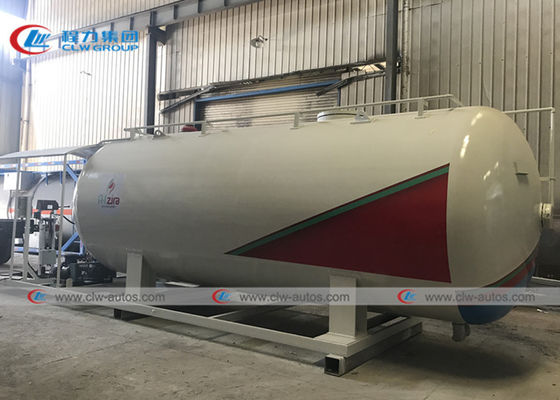

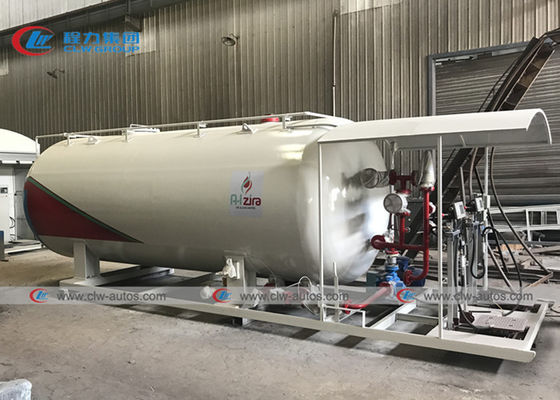

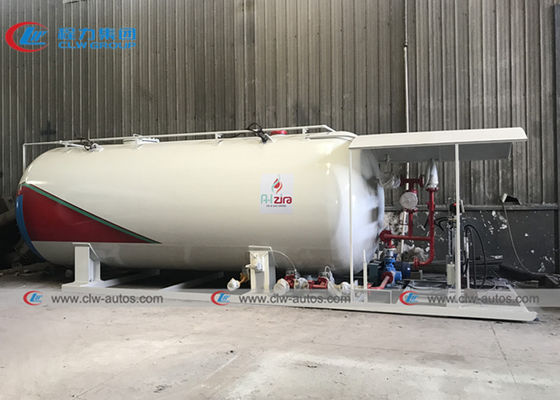

Product 20000Liters LPG skid station's pictures:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
