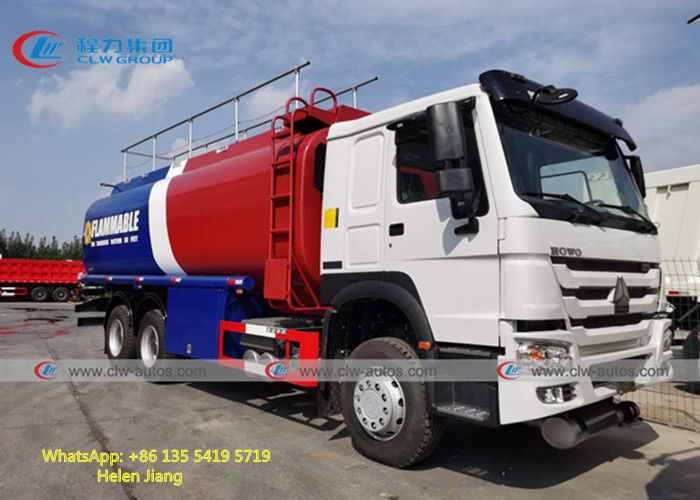

Sinotruk Howo 6X4 371HP 20M3 Fuel Delivery Tank Truck With 5 Compartments

تصویر بزرگ : Sinotruk Howo 6X4 371HP 20M3 Fuel Delivery Tank Truck With 5 Compartments

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210809

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد کربن، فولاد ضد زنگ، آلیاژ آلومینیوم	نام محصول:	تریلر تانکر تانکر بنزین سوخت دیزل
نوع درایو:	6X4 10 WHEELS 10 WHEELER	مدل محرک:	درایو سمت چپ یا RHD درایو راست
ظرفیت بارگیری:	5 تن 10 تن، 15 تن، 5 تن، 10 تن، 15 تن	برند کامیون:	Sinotruk/Sinotruck HOWO، shacman، FAW، FOTON، jac
نوع تاک:	کامیون حمل و نقل روغن، کشتی سوخت گیری روغن	تجهیزات دیگر:	دریچه های شارژ/تخلیه API Manhole
محفظه:	5 محفظه
برجسته کردن:	20M3 Fuel Delivery Tank Truck,371HP Fuel Delivery Tank Truck,Sinotruk Howo Fuel Delivery Truck , 371HP Fuel Delivery Tank Truck , Sinotruk Howo Fuel Delivery Truck

Sinotruk HOWO 6X4 10 Wheeler 371HP 20000L 20M3 Fuel Delivery Tank Truck With 5 compartments

Product Description

According to clients' requirements, we can customize different volume and compartment.
The popular oil tanker truck models include: sinotruk HOWO/SHACMAN 336hp 6X4 10 wheeler fuel tanker truck, 8x4 oil tank truck, SINOTRUK howo/SHACMAN Oil and fuel Tank truck, HOWO /SHACMAN15000L oil Tanker truck , HOWO/SHACMAN 20000L fuel tank, truck fuel tank size can be designed as 2 compartment, 3 compartment, 4 compartment etc and fuel tanker truck dimensions and size is optional.
According to the different brand, we can provide both SINOTRUK and Shacman and Dongfeng and Beiben to meet customer brand requirement.
Our oil fuel tank price is really good with high quality ensured.
Truck fuel tank size,volume and compartment optional

product Specification

LHD Euro II HOWO 6X4 371HP 20cbm carbon steel fuel truck parameters
Cabin	Driving type 6x4 left hand drive 2 seats with one sleeper With A/C
Vehicle Main Dimensions	Overall dimensions (L x W x H) : 980024963248 mm
	Wheel base: 4325+1350 mm
	Overhang (front/rear): 1500/2625(mm)
	Approach angle: 16°
	Departure angle: 15°
Max. driving speed(km/h)	90
Engine	Brand	Sinotruk
	Model	WD615.47
	Horse Power(HP)	371 HP
	Emission	Euro II
	Displacement	9726 ml
Tire	295/80R22.5, 10 tires+1 spare tire
Axle	HF7 front axle, 2x ST16 rear axle
Gearbox	HW19710,10 Forwards gear & 2 reverse gear;
PTO	HW70 PTO
Steering	ZF8198
Exhaust pipe	in the front
Accessory	One spare tire carrier, Two fire extinguisher
Color and logo	Depends on the customer's requirement
Upper parameters
Fuel tank	20 cbm
Tank material	Carbon steel
Thickness of the fuel tank	5mm
Compartment	6 (4000L, 2000L ,3000L, 4000L, 2000L, 5000L)
Manhole cover	Aluminium alloy European standard
Bottom valve	Aluminium alloy material, 6 pieces (one compartment has one bottom valve)
Discharge valve	French standard, 6 pcs
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Valve box	2
Walkway in the top	Carbon steel material, has diamond antiskid plate
Handrail	Stainless steel material, could be folded
Loading system	Up loading system

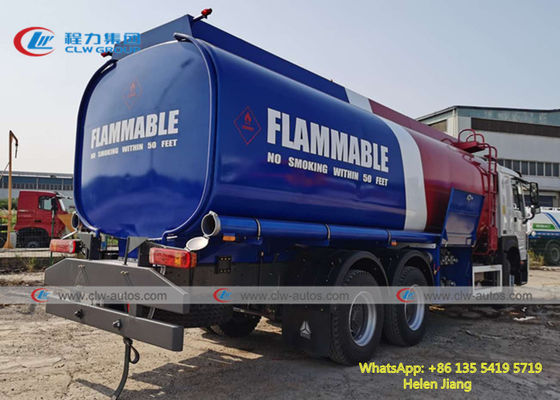

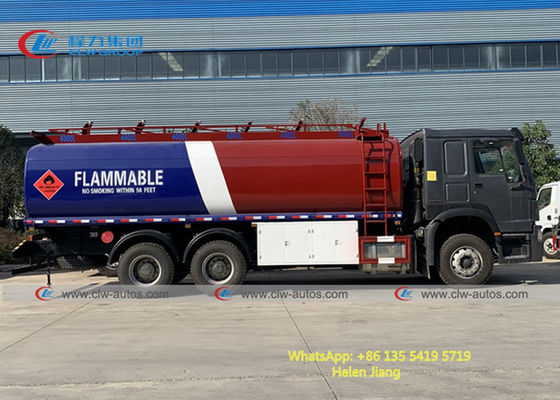

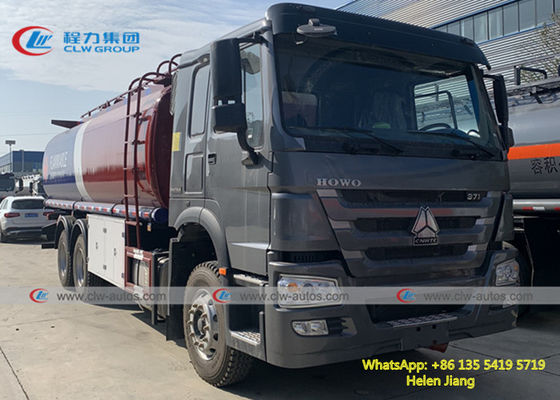

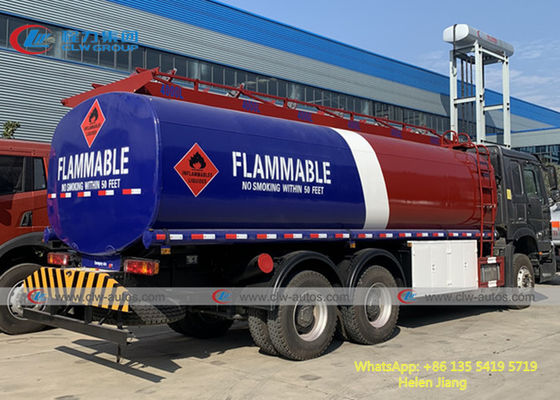

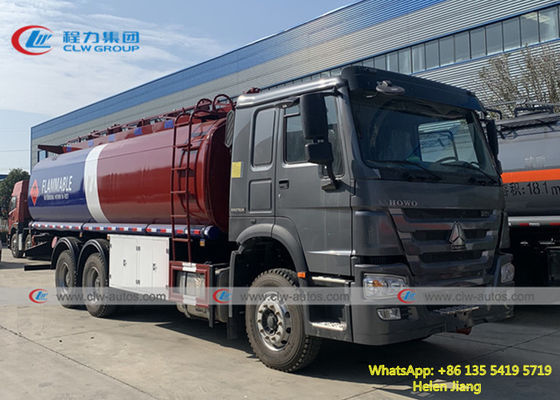

More pictures of Sinotruk HOWO 6x4 336hp 371hp 20000Liters 20cbm 20M3 20000L fuel oil tank tanker truck for sale

Sinotruk Howo 6X4 371HP 20M3 Fuel Delivery Tank Truck With 5 Compartments 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
