SGS Tri Axle 56M3 Hydraulic Auger Grain Truck Trailer

تصویر بزرگ : SGS Tri Axle 56M3 Hydraulic Auger Grain Truck Trailer

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210809

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد	محور:	FUWA، BPW، L1، نام تجاری
بارگذاری محور:	13 تن یا 16 تن	حمل:	خوراک فله علوفه دام گندم، غلات، غلات
ظرفیت مخزن:	40M3 45M3 46M3 48M3 50M3 56M3 60M3، 61.9M3	روش تخلیه:	انتقال پیچ برقی یا هیدرولیک
تجهیزات:	موتور ABB. ژنراتور قابل حمل،	دیگران:	کنترل از راه دور
برجسته کردن:	SGS Grain Truck Trailer,56M3 Grain Truck Trailer,56M3 Tri Axle Tanker Trailer , 56M3 Grain Truck Trailer , 56M3 Tri Axle Tanker Trailer

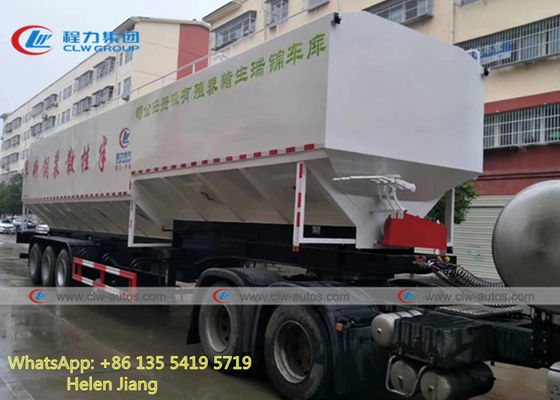

3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer

Product Description

Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.

Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.

Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.

product Specification

Vehicle Parameters	Overall Dimensions (LWH)(mm)	12955×2550×3980	Tank Dimension (LWH)(mm)	12220×2540×2270
	Total Mass(kg)	34850	Curb Weight(kg)	12350
	Bulletin loading(kg)	22500	Theoretical loading(kg)	27000
	Appearance color	White/ optional	Certification	ISO9001, 3C
Chassis Parameters	Parking brake type	Manual valve control spring brake cylinder
	Driving brake system	Independent double circuit, air pressure, drum brake belt ABS
	Tire specifications	11R22.5 16PR
	Trailer traction pin height from the ground(mm)	1228
	Trailer radius of gyration(mm)	1600
	Trailer gap radius	2300
	Wheelbase(mm)	7050+1310+1310
Tank Parameters	Tank gross volume (m3)	56	Space quantity	6
	Conveying height(m)	10.2	Max conveying distance(m)	8.8
	Discharge speed(Kg/min)	550-650	Residual rate(%)	≤0.22

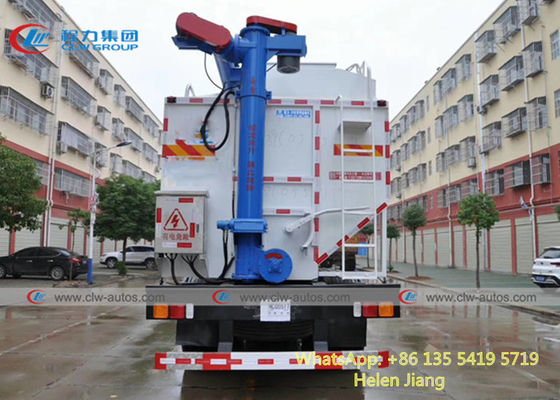

	Discharge by	Hydraulic auger
	Tank drive form	The feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and improve the level of epidemic prevention. And the external power is available.
	Electrical configuration	Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V
Painting	Professional anti-corrosion paint,Process: sandblasting,polishing, painting
Tank	Made of high quality carbon steel sheet；Round design, high strength, beautiful appearance; imported sealing device; strict welding process to ensure quality..

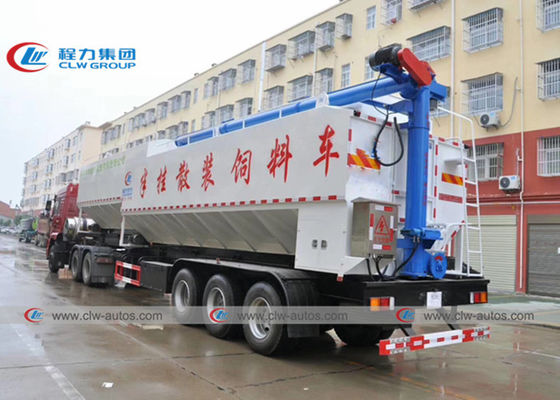

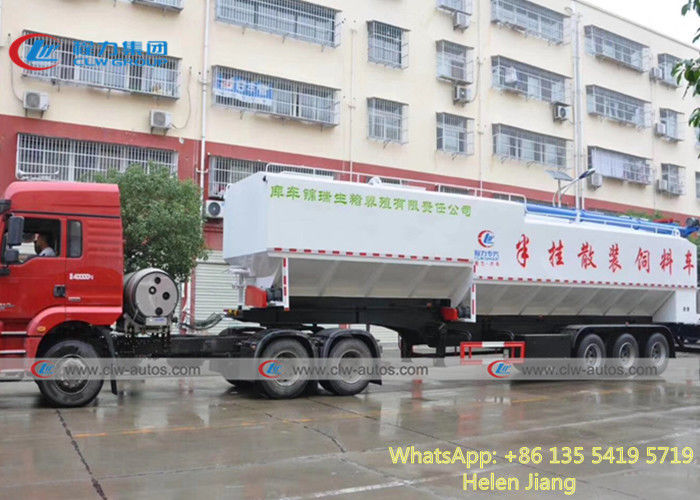

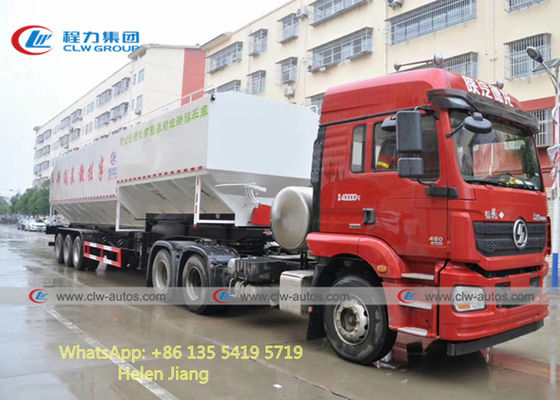

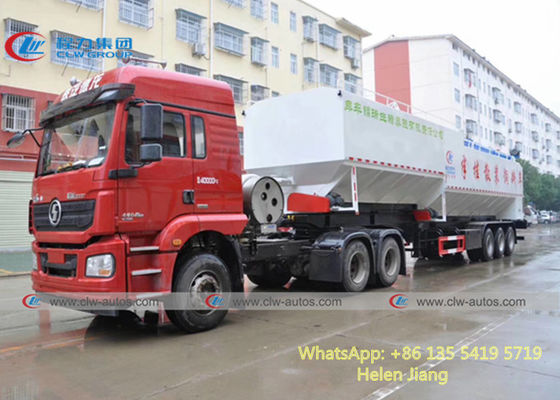

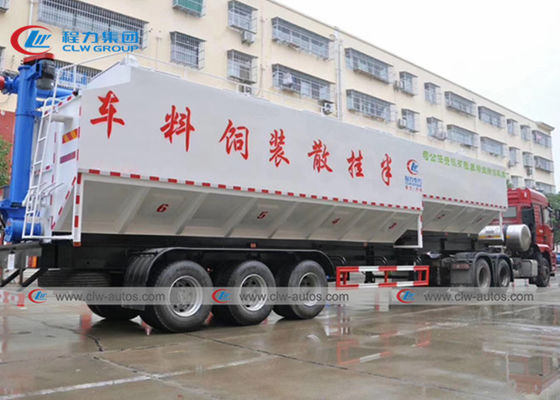

More detailed pictures for 3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
