48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor

تصویر بزرگ : 48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210809

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	Negotiated
جزئیات بسته بندی:	توسط جعبه چوبی قبل از تحویل
زمان تحویل:	7 روز کاری پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

شماره مدل:	ZW-2.0/10-16	پیکربندی:	متصدی
نرخ جریان:	0.8m3-2.0m3/min	مکش بخار:	1.0MPa
فشار را تحویل دهید:	1.6 مگاپیکال	ولتاژ موتور:	380 ولت
قدرت اسب موتور:	11 کیلووات، 15 اسب بخار	سرعت چرخش:	1460r/دقیقه
درجه اثبات انفجار:	ExdIIBt4	قدرت موتور:	11 کیلووات، 30 کیلووات و غیره
مشخصات:	120 متر مکعب در ساعت، موتور ضد انفجار
برجسته کردن:	48m3/H CNG Gas Compressor,120m3/H CNG Gas Compressor,Explosion Proof LPG Gas Compressor , 120m3/H CNG Gas Compressor , Explosion Proof LPG Gas Compressor

48m3/Hour, 120m3/Hour Explosion-Proof LPG/CNG Gas Compressor for LPG/CNG Gas Tank Plant

Product Discription:

ZW series of LPG recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.

The LPG compressor is mainly used for liquefied petroleum gas or properties with similar gas delivery, pressurization, thus this kind of compressor is the key equipment of liquefied gas station, LPG station, station equipment is mixed, the ideal chemical enterprise booster gas recovery.

ZW series Oil-Free LPG Gas Compressor, it has many functions, small volume, lightweight, small power, stable and reliable operation, and has good safety performance. It can transport highly volatile liquid such as liquefied petroleum gas and recover the gas left in the tank, Liquid Natural Gas. Due to the unique oil-free lubrication design, there is no need for oil lubrication in the cylinder, so it will not pollute the medium (ensure the purity of gas) and keep the transported substances pure.

Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.

Media	LPG Gas
Cooling Type	Wind Cool
Compressing Stage	1
Capacity	1.0m3/Min
Inlet Pressure	1.0MPa
Outlet Pressure	1.6MPa
Speed	650rpm
Ex Motor	11kw, 380V, 50Hz
Weight	450kgs

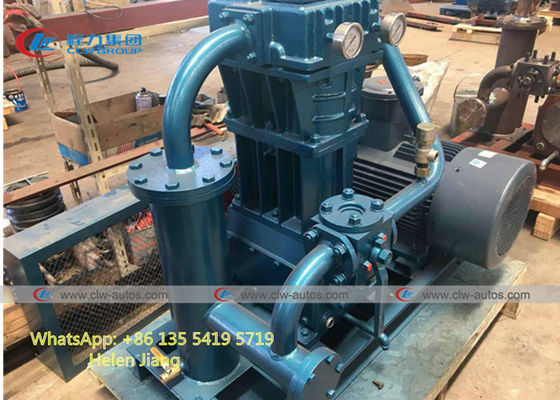

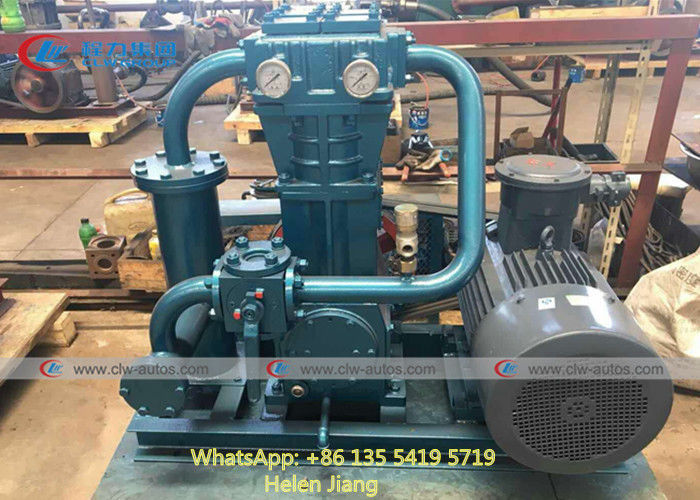

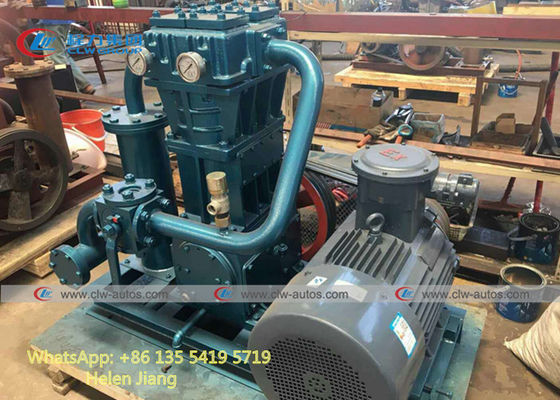

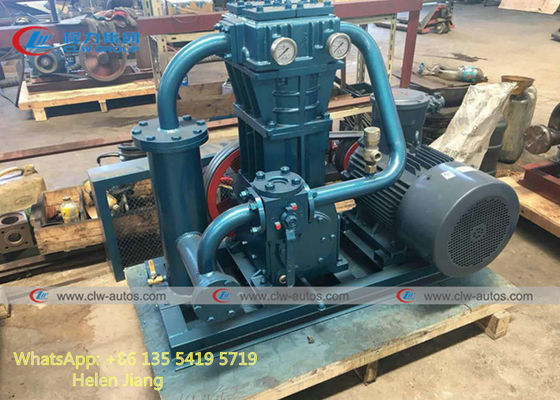

More detailed picures for LPG compressor:

48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor 0

48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor 1

Description:

ZW series of liquefied petroleum gas recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.

Applications:

It is suitable for working in large, middle and small LPG storages, conveying and distribution stations, bottle filling stations, gasification stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle filling, bottle emptying, conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.
