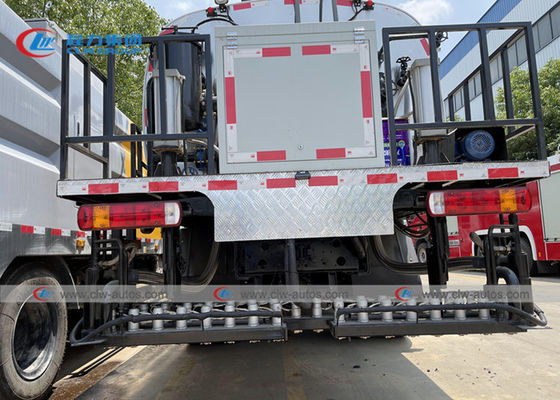

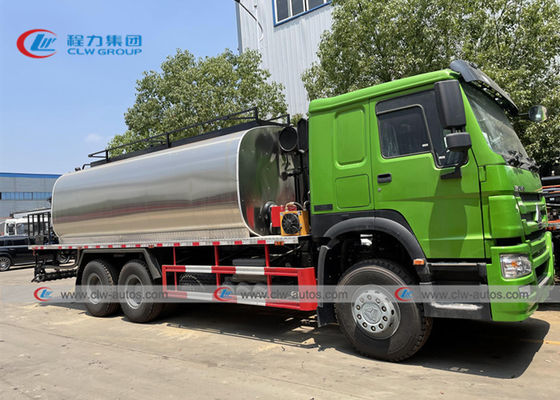

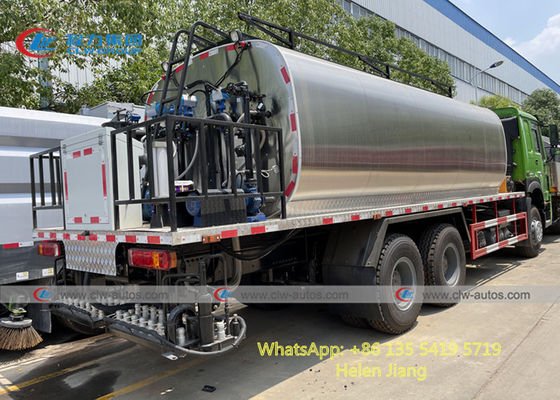

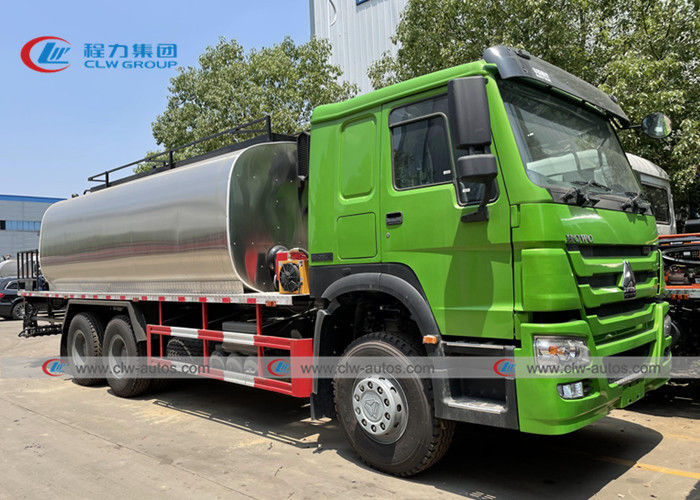

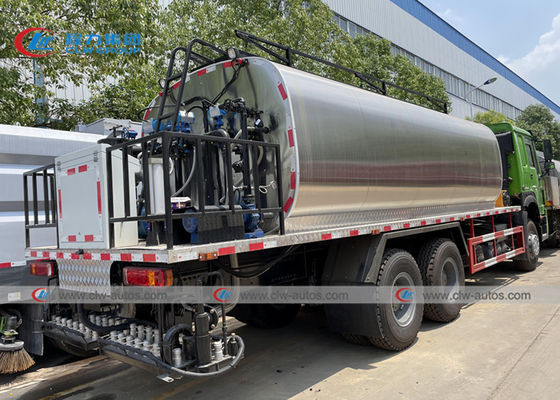

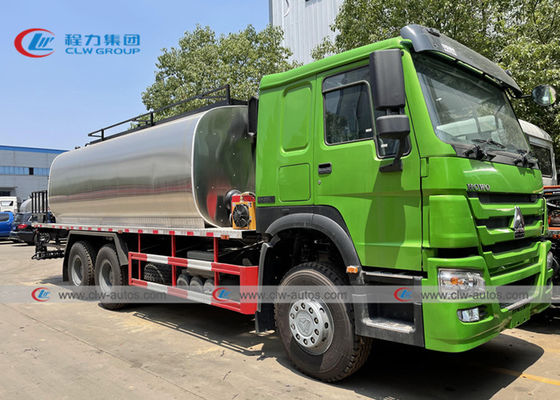

Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

تصویر بزرگ : Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210726

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد تانکر:	فولاد ضد زنگ، آلیاژ آلومینیوم	نام محصول:	کامیون قیرپاش آسفالت
نوع درایو:	6x4 10 چرخ، 10 چرخ	مدل محرک:	فرمان چپ یا راست دست
ظرفیت بارگیری:	5cbm، 6cbm، 8cbm، 10cbm، 12cbm، 15cbm و غیره	برند کامیون:	Sinotruk/Sinotruck HOWO، HOHAN، FAW، FOTON، jac
نوع تاک:	کامیون قیر سنگفرش راهسازی	تجهیزات دیگر:	دریچه های شارژ/تخلیه منهول
تجهیزات:	پمپ، موتور هیدرولیک، پمپ روغن	سرعت پاشیدن:	0.2 تا 3 لیتر / متر مربع
عرض بپاشید:	6 متر
برجسته کردن:	10M3 Asphalt Paving Truck,8M3 Asphalt Paving Truck,Sinotruk Howo Road Construction Truck , 8M3 Asphalt Paving Truck , Sinotruk Howo Road Construction Truck

Sinotruk HOWO 6x4 10 wheels Sinotruk 8 Cbm Road Construction Paving Bitumen Truck 10CBM Asphalt Distributor Truck

Description of the asphalt distributor truck

Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
Driving type: left hand drive, right hand drive
Axle: 4x2, 6x4 , 6x2, 8x4
Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc

Application of the asphalt distributor truck

It's widely used in the road construction. Can spay asphalt to the road very fast and uniform

SINOTRUK HOWO 6x4 16m3 asphalt spraying truck
Chassis	ZZ1257
Color	Red ,White, Yellow or optional
Drive type	6x4,left hand drive
Dimensions
Wheel base	4600+1350mm
Overall Dimension	10200x2500x3450mm
Tank volume	16m3
Weights
Payload weight		16000kg
Curb weight		16000kg
Front /Rear tread		2022/1830/1830mm
Front/rear overhang		1500/2750mm
Approach/Departure angle		16/13(°)
Engine
Engine model	WD615.87 ,Euro 2
Engine horsepower	290HP
Engine manufacturer	SINOTRUK Group
Displacement	9726L
Drive Line
Cluth description	Dry single plate, hydraulic control booster, mechanical operation
Transmission	HW19710/10 forwarder,2 reverse gear, Manual operation
Braking system	Service brake		air brake
Axles
Front Axle-Model	HF7, 7 ton
Rear Axle(drive axle)-Model	Double ST16, 16 ton x 2
Tire specification	12.00R22.5, 10 tires+1 spare tire
Special function of asphalt distribution truck
Asphalt tank	Material:		4mm steel plate.120mm insulation layer, stainless steel outside .it can prevent the heating losing
	Tanker volume		16m3,one φ440mm manhole
	Thermal asphalt		160-180 centigrade
Asphalt pump	Model		QGB950
	Flow		57m3/h
	Rated speed		583rpm/min
	Resolve pressure		0.8MPA
Hydraulic pump	CBQ563-L
Control method	Semi intelligence control
Spray width	6m
Asphalt intelligent nozzle	48units
Heating method	Heat conducting oil automatic heating
Burner	G20, imported from Italy
Heat conducting oil pump	40-25-160

Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
