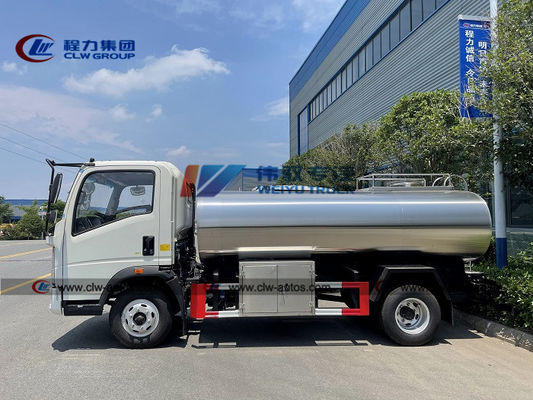

10cbm Sinotruk Howo SS 304 2B Edible Water Transport Truck

تصویر بزرگ : 10cbm Sinotruk Howo SS 304 2B Edible Water Transport Truck

جزئیات محصول:

محل منبع:	سوئیژو، هوبی
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210722

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، فوتون، HOWO، FAW، Isuzu و غیره	نوع درایو:	4X2 6 چرخ، 6 چرخ
مدل محرک:	فرمان چپ یا راست دست	موتور:	موتور یوننی
جعبه دنده:	6 جلو و 1 عقب	مواد تانکر:	فولاد ضد زنگ، آلیاژ آلومینیوم
لایه داخلی:	فولاد ضد زنگ 304 2b	ضخامت لایه داخلی:	4 میلی متر
لایه میانی:	فوم پلی اورتان	ضخامت لایه میانی:	80 میلی متر
ضخامت لایه بیرونی:	1 میلی متر	تغییر دمای متوسط:	کمتر یا برابر با 1 درجه در 24 ساعت
سیستم نظافت اتوماتیک:	در تانک، چرخش 360 درجه	شیر و خط لوله:	فولاد ضد زنگ
سوراخ:	DN500mm با لاستیک درجه مواد غذایی	لوگو و نقاشی:	با توجه به نیاز مشتری
زمان تحویل:	30-35 روز کاری
برجسته کردن:	10cbm Water Transport Truck,SS 304 2B Water Transport Truck,Sinotruk Howo Water Delivery Truck , SS 304 2B Water Transport Truck , Sinotruk Howo Water Delivery Truck

10, 000liters/10m3/10cbm Sinotruk HOWO stainless Steel Fresh Milk Delivery Tankers Edible Water Transport Tank Truck

Product Description
Milk trucks are also called fresh milk trucks, milk tank trucks, and liquid food trucks. The tank body is made of food-grade stainless steel plates. The outside of the tank body needs to be insulated to prevent the fresh milk from deteriorating. Add CIP (cleaning device) in each milk tank.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

Product Specification

Cabin	Driving type 4x2
Cabin	1880 Standard cab, with two seats, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	5998x2150x2650
	Wheel base (mm)	3360
	Wheel track (front/rear) (mm)	1160/1475
	Approach/Departure angle(°)	20/18
Weight in KGS	Tare Weight	4000
	Loading Capacity	5000
	Front axles loading capacity	1x2400
	Rear axles loading capacity	1x4200
Max. driving speed(km/h)		90
Engine	Brand	YUNNEI
	Model	YN4102
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	116HP
	Emission standard	Euro Ⅱ
Gearbox	WLY6T46, 6 forwards & 1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Fuel tank (L)	120L
Tire	7.00R16 with one spare, 7 pieces
Tank specification	5,000 liters, tank thickness is 3 mm, seal is 4 mm Tank Material: Stainless or Aluminium alloy

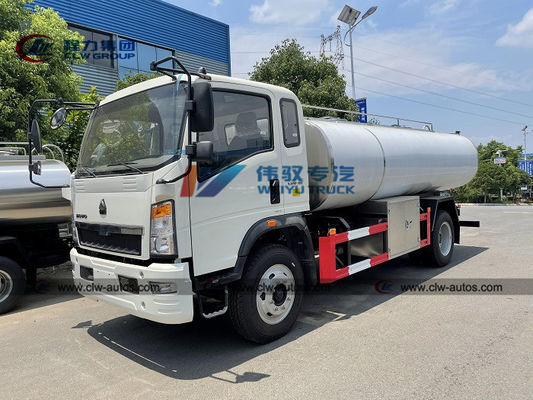

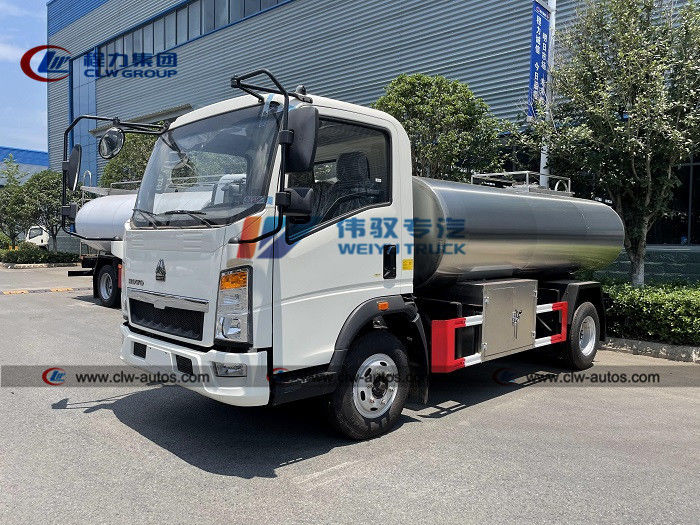

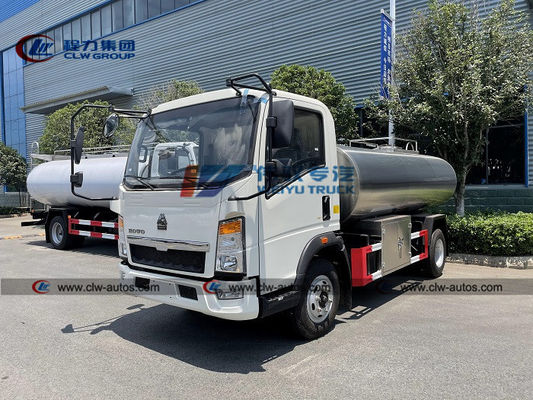

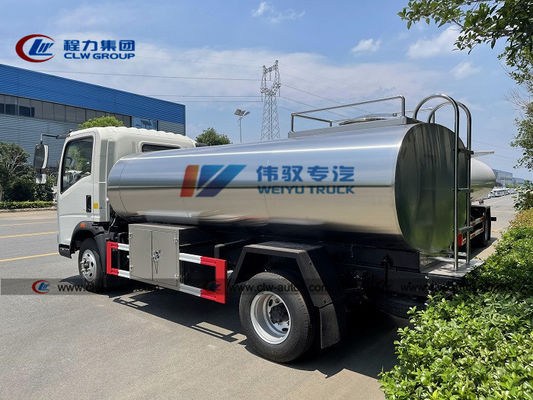

Reference Photos

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
