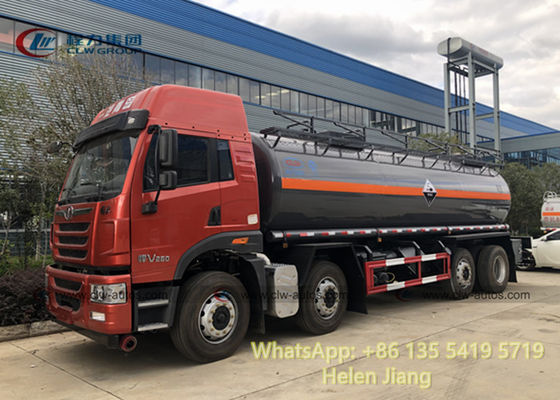

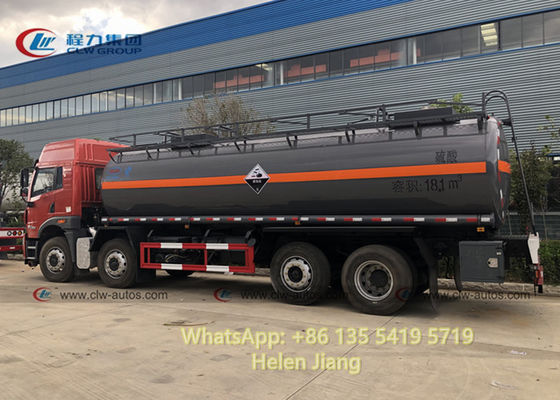

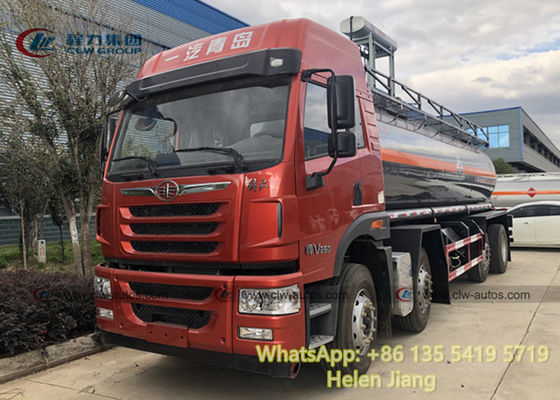

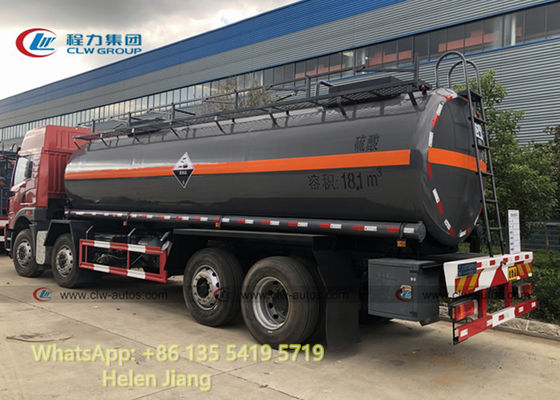

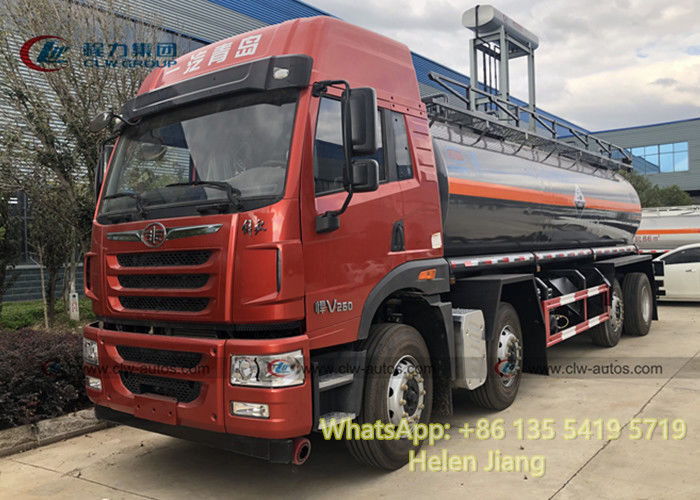

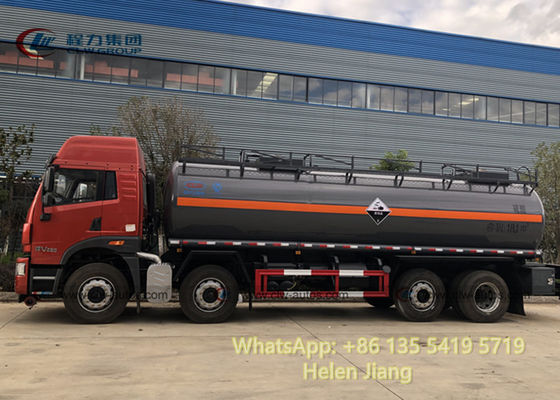

FAW 8*4 20000L 20CBM RHD Liquid Chemical Transport Tanker Dilute Sulfuric Acid Tank Truck
Product Description
1. Purpose: It used for transporting all kinds of acid solution and alkaline solution such as 98% sulfuric acid, dilute sulphuric acid and sodium chloride solution
2. Main parts: Bottom valve, pipeline and liquid line.
3. Truck Brand: FAW, optional for SINOTRUK HOWO, Dongfeng, ISUZU, SHACMAN, North Benz and other brands
4. Available tank capacity: 15m³ , 16m³ ,18m³ ,20m³ , 22m³
Acid Tank Trailer 30T -60T Solusion Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,
Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
| Technical Parameter |
| Product Name |
Chemical liquid tank truck |
| Overall Dimension(L*W*H) (mm) |
9600×2500×3350 |
| Tank size(mm) |
6800×2400×1700 |
| GVW(kg) |
24700 |
| Curb weight(kg) |
11505 |
| Rated loading capacity(kg) |
13000 |
| Approaching/Departure Angle(°) |
27/13 |
| Front/Rear suspension(mm) |
1245/2705 |
| Front/Rear tread(mm) |
1940/1860 |
| Fuel type |
Diesel |
| Chassis Technical Parameter |
| Chassis brand name |
FAW |
| Control System |
Electrically hydraulic system |
| Electric System |
24v |
| Traction system |
6×4 |
| Transmission |
6 forward gear, 1 backward gear |
| Tyre specifications |
10.00-20 |
| Tire number |
10 (1 spare tire) |
| Wheelbase(mm) |
4350+1300 |
| Axle number |
3 |
| Axle loading(kg) |
6800/17900 |
| Passengers in cab |
3 |
| Maximum speed(km/h) |
85 |
| Engine Parameter |
| Engine manufacturer |
WEICHAI |
| Engine model |
380HP |
| Displacement (ml) |
5900 |
| Power (kw/hp) |
155/210 |
| Number of cylinders |
6 |
| Cylinder spread pattern |
In-line |
| Intake type |
Supercharged and mid-cooling |
| Cylinder bore× route(mm) |
102×120 |
| Maximum torque speed(rpm) |
1500 |
| Emission standard |
Euro 3 |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
