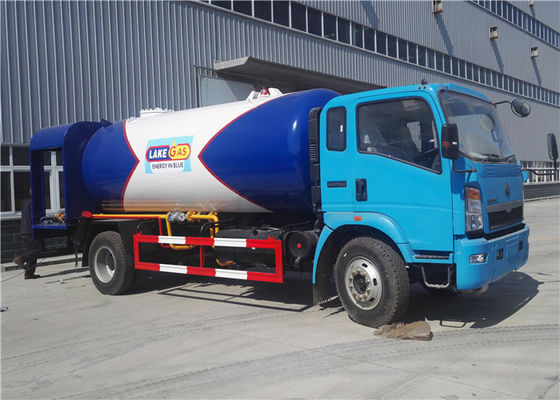

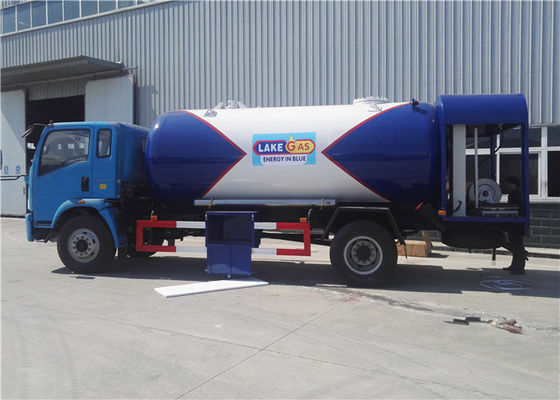

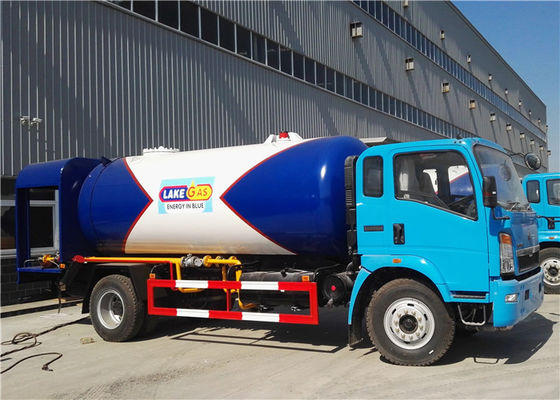

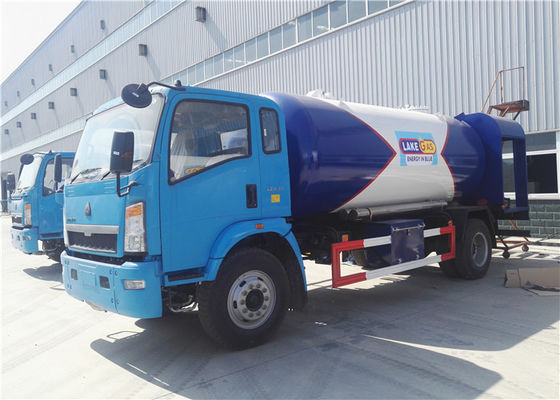

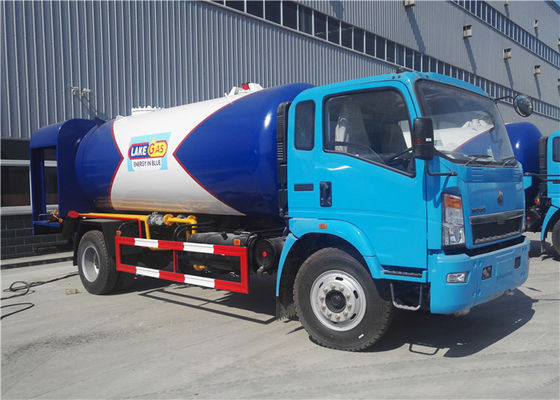

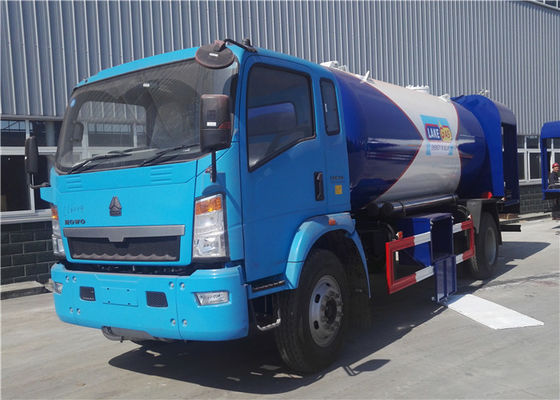

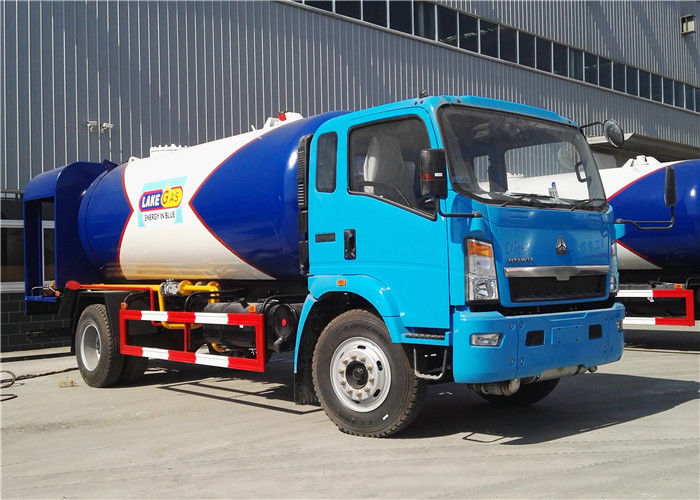

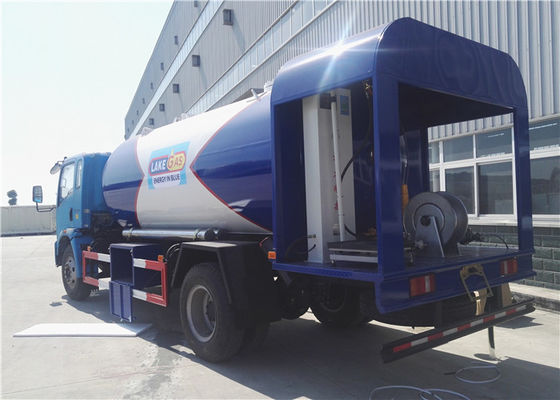

Sinotruk HOWO 4x2 RHD 12000L 6 tons Transport Tank Bobtail Cylinder Filling LPG Gas Dispenser Truck
Product Description
LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

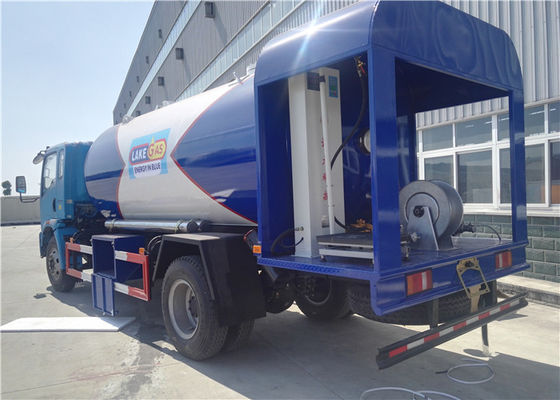

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
product Specification
| Item No. |
Parameters |
| Overall Dimension |
7600x2300x2980 mm |
| Driving Model |
Left hand drive or right hand drive |
| Gross Vehicle Weight |
11460 kg |
| Curb Weight |
6460 kg |
| Payload |
5000 kg |
| F/R Axle Loading |
3200/8000 kg |
| Wheel Base |
4200 mm |
| Front/rear Tread |
1886/1845 mm |
| Approach/Departure Angle |
27/20 degree |
| Engine |
Yuchai 4110,YC4E160-33 |
| Engine horsepower |
160 HP EUROIII |
| Displacement |
4260mL (Diesel) |
| Max Driving Speed |
95 km/h |
| Gear Box |
DC6J65TC,6 forward& 1 reverse |
| Cabin |
2~3 Passenger allowed,with A/C |
| Tire |
8.25R20 (6 pc with 1 spare) |
| LPG tank |
|
| Volume: |
8~10cbm |
| Tank material: |
Q345R |
| Tank diameter: |
1800mm |
| Tank thickness: |
10mm |
| End plate |
10mm |
| Tank length: |
As designed |
| Gas phase |
DN50 |
| Liquid Phase |
DN50 or DN80 for option |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Accessory |
| Level Gauge |
Manual rotation type,at the rear of tank |
| Safety Valve |
1,DN80 |
| Tool and Valve Box |
1 |
| LPG pump |
1 |
| LPG Volume Flow Meter |
1 |
| Filling Hose |
15 meters |
| Filling Nozzle |
1pc,Standard for 12.5kg cylinder |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Emergency Valve |
1 |
| Fender |
Steel |
| Fire Extinguisher holder |
2 |
| Exhaust shaft |
At the front of truck for safety |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
