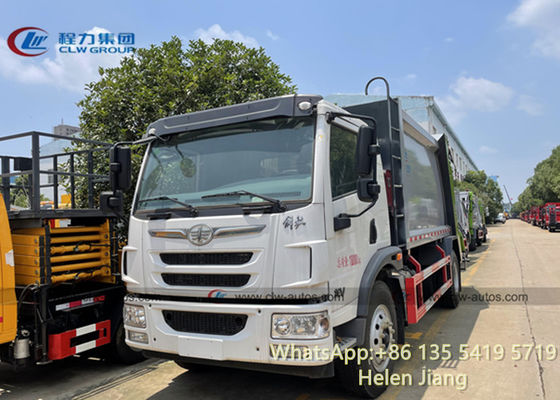

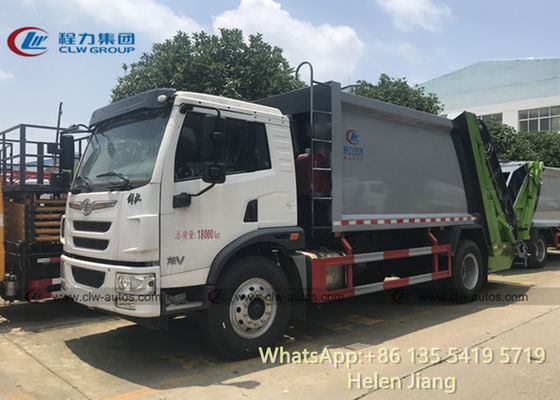

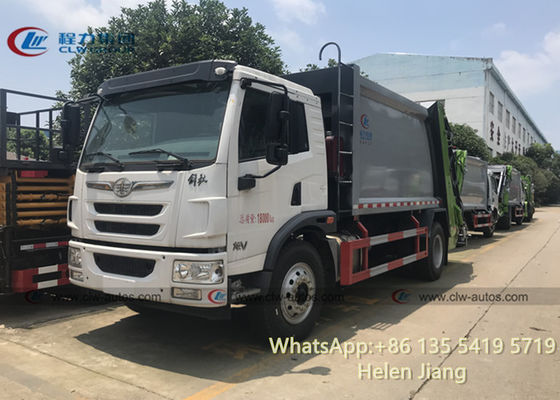

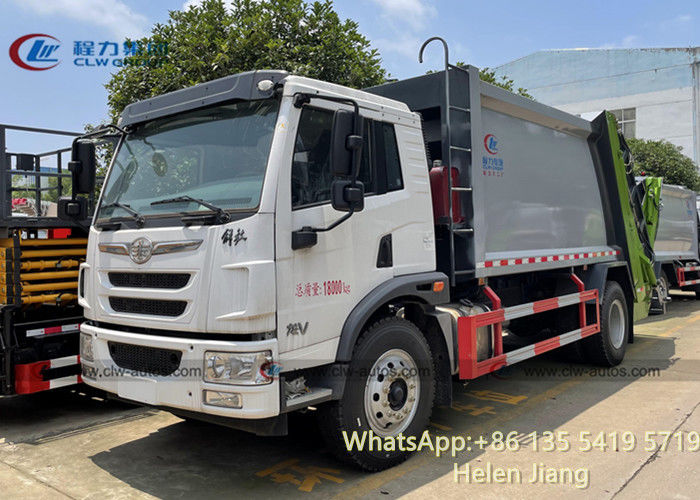

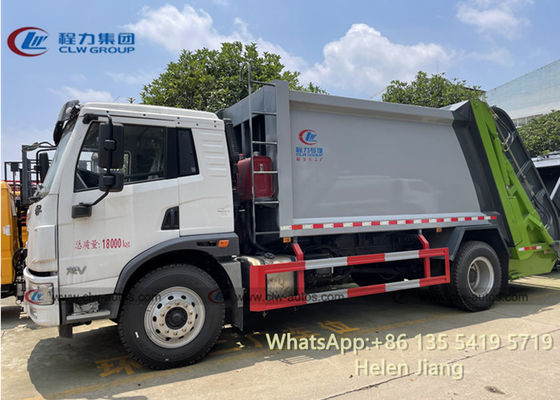

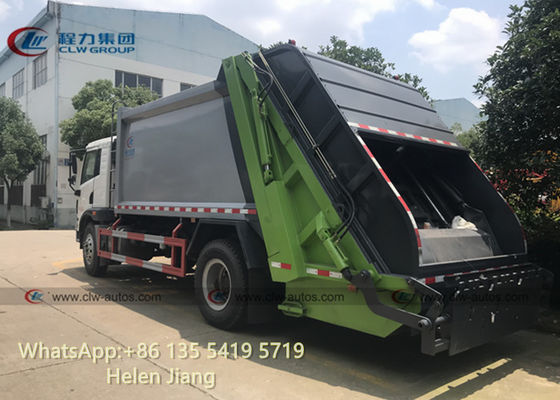

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

تصویر بزرگ : FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

جزئیات محصول:

محل منبع:	سویزو ، هوبی ، چین
نام تجاری:	CLW
گواهی:	ISO9001, CCC, BV, SGS
شماره مدل:	CLW20210722

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	Negotiated
جزئیات بسته بندی:	قبل از حمل، برهنه یا موی شده
زمان تحویل:	30-35 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	فولاد کربن،	نام محصول:	کامیون کمپرس زباله، کامیون زباله فشرده
نوع درایو:	4X2 6WHEELS 6 WHEELER	مدل محرک:	درایو چپ، RHD
ظرفیت بارگیری:	5 تن، 6 تن، 8 تن، 5 تن، 6 تن. 7T، 8T	برند کامیون:	Sinotruk/Sinotruck HOWO، shacman، FAW، FOTON، jac
نوع تاک:	کامیون جمع آوری زباله. کامیون اتصال خودداری کنید	تجهیزات دیگر:	با سیستم هیراولیک
وضعیت:	برند FAW، کامیون کاملا نو
برجسته کردن:	6 Wheels Garbage Compactor Truck,FAW 4x2 Garbage Compactor Truck,10CBM Waste Compactor Truck , FAW 4x2 Garbage Compactor Truck , 10CBM Waste Compactor Truck

FAW 4X2 6 Wheels 10M3 10CBM 10 cubic meters Garbage Caompactor Truck for Waste Collection

Product Description

Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time. We can produce the trucks according to your requirements.

product Specification

Vehicle parameters:
Overall dimensions (length * width * height)	Barrel Turning Device: 7160×2250×2650mm Tipping Device: 7460×2250×2650mm
Total mass	8275Kg
Rated contained mass	1500Kg
Curing quality	6580Kg
Wheelbase	3800mm
Front overhang / rear overhang	1210/2150,1210/2450
Approach / departure angle	24/13
Chassis parameters
Chassis type	Dongfeng Dolika
Cab color	White
Drive form	4*2
Wheelbase	4500mm
engine model	CY4SK251(Euro V )
Engine power (kw)	115
Emission Standards	GB17691-2005 (Euro V),GB3847-2005
Tire	7.50 Steel Wire Tyres (7)
Top loading parameters:
Effective volume of the box	10CBM
Box shape	arc
Box material	Bottom 4 sides 4
Compression ratio	≥2.5
Loading cycle once	≤35 s
Pushing garbage time	≤35s
control method	automatic / manual
Hydraulic system pressure	16MPa
Hydraulic oil pump	Hefei Changyuan (Zhonglian Heavy Industry)
Hydraulic cylinder	Zoomlion supporting
PLC control system	Siemens, Germany
Engine power control	Fully automatic control
Tumbler mechanism	Hang two 240L trash cans at the same time (Optional other types of flip frame)

FAW 8000 liter compactor Garbage truck Working parameter:

Hydraulic pump	Long source large flow 32-80 pump, optional double pump and double valve	Body material	High strength T420 special steel plate
Hydraulic cylinder	Xiamen Yinhua, Yantai Future	Box thickness	Lightweight design with 4mm at the bottom and 5 sides
Multi-way valve	Jiangsu Zhongmei, Italy imports	Sewage tank	2 (1 on the side and 1 on the rear)
Conversion mode	Photoelectric switch (formerly pressure relay)	Sewage seal	Tail diversion groove + rubber hydraulic lock
Automatic control	Standard configuration, Siemens PLC electronic control	Lighting device	Tail night light
Electric control box	3 (1 in the cab and 2 in the rear)	safety devices	Tail lift with hydraulic lock
Optional configuration	Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
