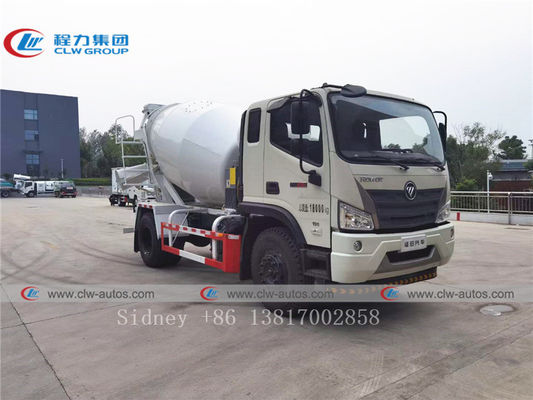

Foton Rowor 4х2 5.5cbm Cement Mixer Truck With Q345 Steel Tank

تصویر بزرگ : Foton Rowor 4х2 5.5cbm Cement Mixer Truck With Q345 Steel Tank

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,
شماره مدل:	CLW5442

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	USD26500 - 33500
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

نام تجاری:	عکس	سوخت:	دیزل
حجم:	5cbm,6cbm,7cbm,8cbm,9cbm,10cbm	موتور هیدرولیکی:	PMP، Eaton، Sauer یا نام تجاری چینی
پمپ هیدرولیک:	Zf، Bonfiglioli یا برند چینی	کاهنده:	ZF، PMP، Bonfiglioli، Sauer
ضخامت درام:	6 میلی متر با فولاد کششی بالا	ضخامت تیغه:	5 میلی متر با آلیاژ فولاد Q345
حجم مخزن آب:	200 لیتر	میزان پر کردن:	95 ٪
گارانتی:	1 سال	کتابچه راهنمای کاربر:	بله
لوگو:	به عنوان درخواست مشتری
برجسته کردن:	5.5cbm Cement Mixer Truck,Foton Rowor Cement Mixer Truck,Q345 Steel Tank Concrete Mixer Truck , Foton Rowor Cement Mixer Truck , Q345 Steel Tank Concrete Mixer Truck

Foton Rowor 5.5cbm Concrete Mixer Cement Mixer Drum Truck

Three main part of the concrete mixer truck:

1. German Rexroth Hydraulic pump, Motor, ZF reducer;

2. America Eton Hydraulic pump, Motor ;

3. Italy Bonfiglioli Reducer;

4. Italy PMP Hydraulic pump, Motor and reducer.

5. China brand pump, motor and reducer

The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.

Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.

Product Specification

CHASSIS	Brand		FOTON
	Chassis Model (Model No. )		BJ1162
	Drive Mode		4х2
	Tire		10.00-20
	Brake		Air brake
Engine	Model		YC6J180-33
	Horsepower (Hp)		180
	Dispalcement(ml)/Power(kw)		6494/132
	Emission		Euro VI
Main Parameter	Overall dimension (MM)	LWH(mm)	7385× 2490× 3650
		wheelbase(mm)	3900
		Axles No.	2
	Weight (KG)	Gross weight	15965
		Payload weight	7900
		Kerb weight	7870
	Leaf spring No.		10/12+9
	Approaching/Deparature Angle(° )		24/31
	Front/Rear Trace(mm)		1940/1870
	Front/Rear Suspension(mm)		1420/2065
	Max speed(km/h)		80
	Gear Box		8 speed gearbox
Hydraulic Drive Parameters	Stirring Volume(M³)		5---6
	Filling Rate(%)		63%
	Rate of Feeding(M³/min)		≥ 3
	Rate of Delivery(M³/min)		≥ 2.0
	The Remaining Rate(M³/min)		≤ 1.0
	Tube Service Speed(r/min)		0-12
	Tube Dip(° )		11-15
	Oil Pump		Import from Italy
	Hydraulic Motors
	Decelerator

Reference Photos

Foton Rowor 4х2 5.5cbm Cement Mixer Truck With Q345 Steel Tank 0

Truck Diagram

Foton Rowor 4х2 5.5cbm Cement Mixer Truck With Q345 Steel Tank 3

Working Photos

Foton Rowor 4х2 5.5cbm Cement Mixer Truck With Q345 Steel Tank 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of concrete mixer trucks I can order from your company?

A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied concrete mixer truck to any overseas companies?

A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
