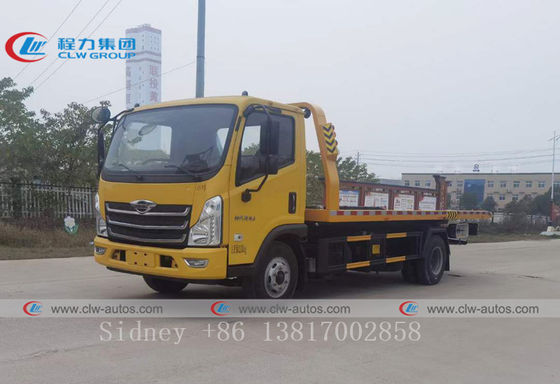

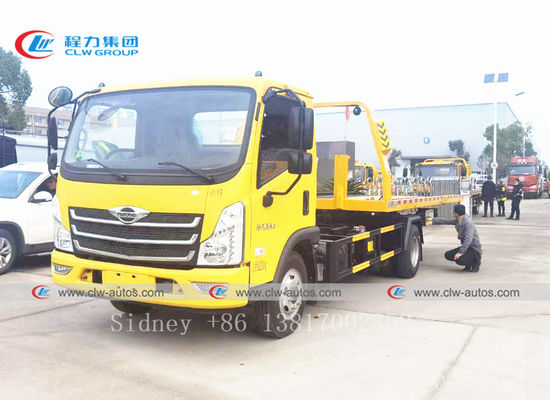

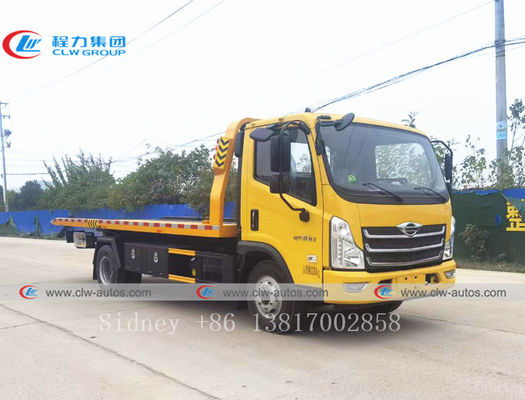

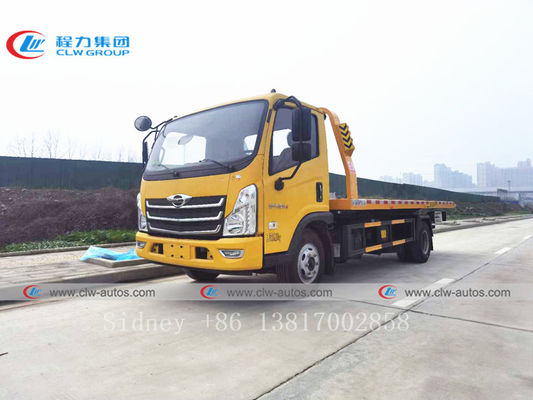

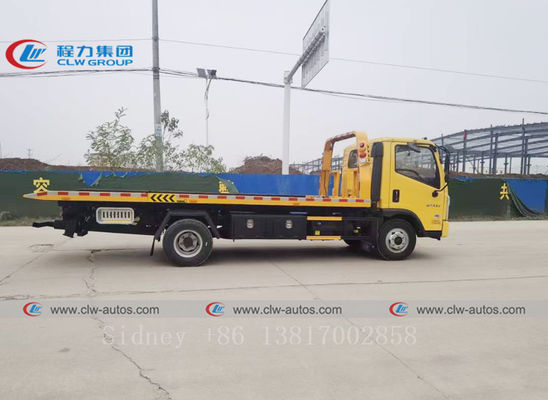

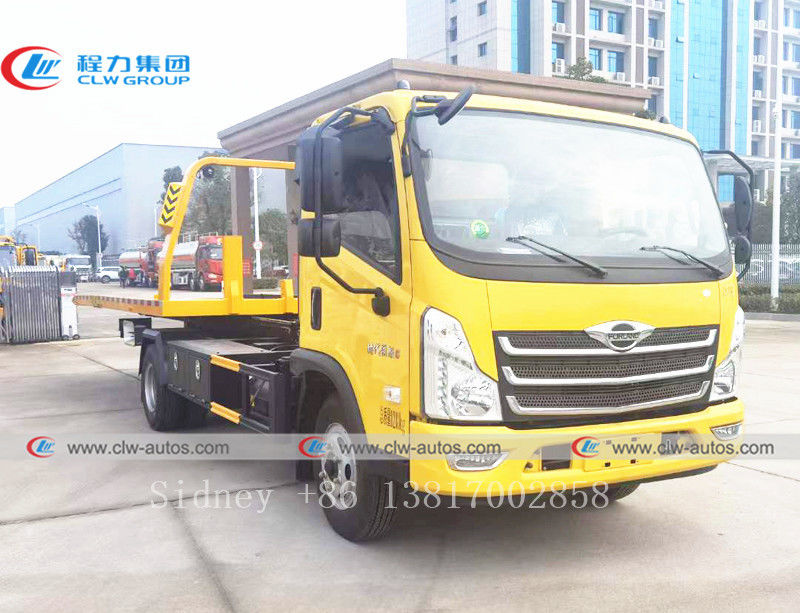

EURO VI Forland 4x2 LHD RHD Flatbed Tow Truck

تصویر بزرگ : EURO VI Forland 4x2 LHD RHD Flatbed Tow Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC SGS BV
شماره مدل:	CLW584R

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	30 روز پس از دریافت سپرده در حساب
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	500 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	DONGFENG، ISUZU، FAW، HOWO، JAC، JMC	ظرفیت بکسل:	4 تن، 5 تن، 5 تن، 4 تن، 5 تن، 6 تن، 6 تن، 6 تن
رنگ:	سفید، زرد، آبی به عنوان سفارشی	فرمان:	LHD، RHD، درایو سمت راست، درایو چپ
موتور:	130 اسب بخار، 160 اسب بخار	نوع ویرانگر:	یک بکسل-دو-یک-بکسل-یک
برجسته کردن:	RHD Flatbed Tow Truck,LHD Flatbed Tow Truck,Forland 4x2 Flatbed Recovery Truck , LHD Flatbed Tow Truck , Forland 4x2 Flatbed Recovery Truck

Forland brand 4x2 small wrecker truck 3-5ton flatbed tow truck for sale

Description

1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

5. We have different brands of truck chassis to make the wrecker tow truck.

6. The tow truck chassis are Forland, Foton, SINOTRUK HOWO, Dongfeng, Faw, ISUZU, JAC etc.

Specification

Vehicle Name:	Forland Recovery Truck	Vehicle Category:	Forland Recovery Truck
Chinese Brand:	Forland JDFTRUCK	English brand :	Forland JDFTRUCK
Notice batch :	230	Exemption:	No
Engine	Engine Manufacturer	Displacement (ml)	Power (kw)
YZ4DB1-30	Weichai power yangzhou diesel engine co., LTD	4087	95
Engine brand :	Forland	Fuel type:	Diesel (mm)
Dimensions:	7350×2320×2540(mm)	Compartment Size :	× × (mm)
The total mass :	8495(Kg)	Payload:	3500kg
Curb weight:	5200(Kg)	Rated Quality:	(Kg)
Quality Trailer :	(kg)	Semitrailer saddle :
Rated capacity :	( People )	Cab seats :	3( People )
Approach / departure angle :	21/12(°)	Front / rear overhang :	1120/2430(mm)
Axle load:	3400/5095	Wheelbase:	3800(mm)
Number of axes:	2	Maximum speed:	95(km/h)
Emission standard:	EURO VI	Spring:	9/11+7
Number of tires :	6	Tire Size:	7.50-16,8.25-16,7.50R16,8.25R16
Front track:	1688	Rear track:	1630,1600
Steering Type :	Steering wheel	Starting method:

Reference photos

Parts diagram

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?

A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
