Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck

تصویر بزرگ : Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,BV,SGS
شماره مدل:	CLW5442

پرداخت:

مقدار حداقل تعداد سفارش:	1 واحد
قیمت:	negotiable
جزئیات بسته بندی:	برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل:	20 ~ 25 روز پس از دریافت سپرده
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
قابلیت ارائه:	1000 واحد در ماه

مخاطب

توضیحات محصول جزئیات

مواد:	Q235b ، Q345b	ضخامت مواد:	4 تا 5 میلی متر
ظرفیت مخزن:	25000 لیتر، 6600 گال	وزن بارگیری:	20 متری تن
برند کامیون:	دونگفنگ	لاستیک:	11R22.5، 12R22.5
کابین:	چپ دستی	موتور:	شیچای یا ویچای
جعبه دنده:	10 جلو و 2 عقب
برجسته کردن:	20000 Liters Diesel Delivery Truck,20000 Liters Diesel Delivery Truck,Dongfeng 1208 Gasoline Delivery Truck , 20000 Liters Diesel Delivery Truck , Dongfeng 1208 Gasoline Delivery Truck

Dongfeng 1208model 20,000liters 6x4 Diesel Gasoline Transportation Aluminum alloy Tanker Truck

Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Specifications

Drive Mode	6×4
Chassis	DFL1250
Engine	Model	Cummins ISDe 245 30
	Type	6-cylinder in line, turbocharging, inter cooling, electrical control common-rail engine
	Max. power(Kw/rpm)	180/2500
	Max. torque(N.m/rpm)	925/1200-1700
	Bore /Stroke(mm)	107×124
	Displacement(ml)	6700
	Type of fuel	Diesel
	Compression ratio	17.3:1
Gearbox	Model	8JS118T-B
Gearbox	Max.torque(N.m/rpm)	1180
Dimensions	Overall dimension (mm)	10960×2500×3200
	Wheel base (mm)	5350+1300
	Front/Rear tread(mm)	1986/1860
	App./Dep. Angle(°)	20/13
Mass	Payload (kg)	13725
	Curb weight(kg)	11045
	G.V.W (kg)	24900
Tank dimension	8200×2220×1420
Effective Volume(m³)	20
Tansport Medium	all kinds of oils, chemical liquids
Material of tank	carbon steel/stainless
It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional.

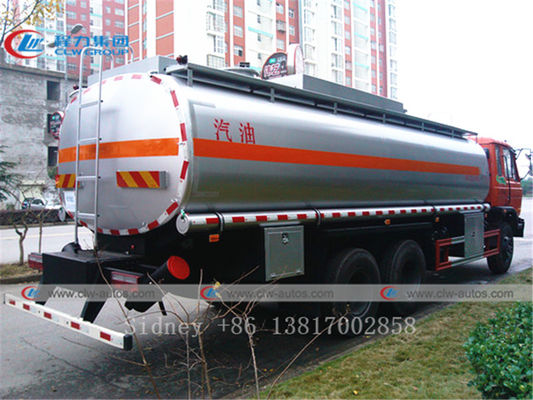

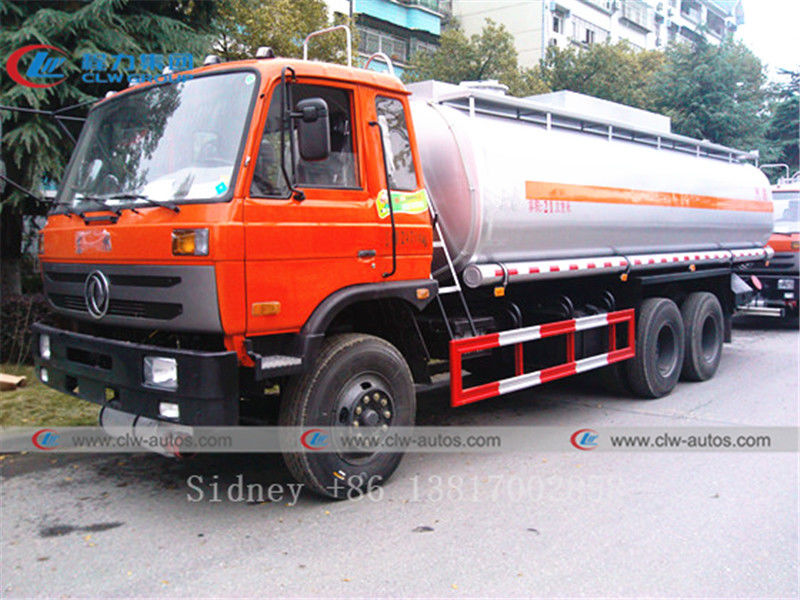

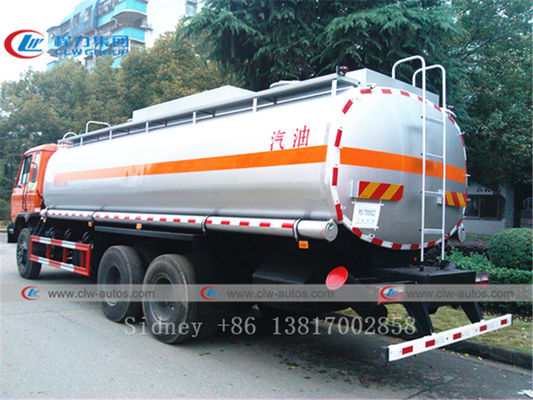

Reference photos

Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck 0

Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck 2

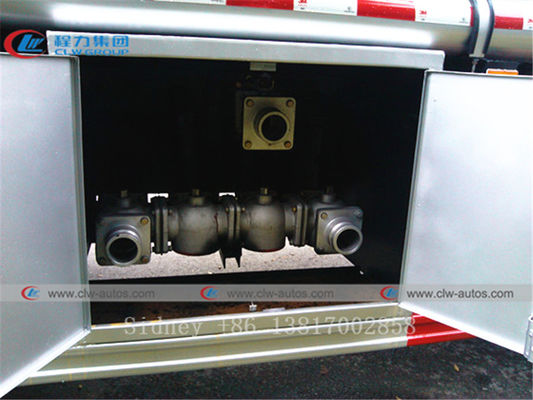

Parts photos

Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck 4

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
