HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
خانه محصولاتتانک ها، کامیون ها و تریلرها

35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer

چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چین HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD گواهینامه ها
چت IM آنلاین در حال حاضر

35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer

35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer
35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer

تصویر بزرگ :  35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer

جزئیات محصول:

محل منبع: چین
نام تجاری: CLW
گواهی: ISO, CCC
شماره مدل: CLW3522

پرداخت:

مقدار حداقل تعداد سفارش: 1 واحد
قیمت: negotiable
جزئیات بسته بندی: برهنه، موم شده، کشتی فله، رو-رو
زمان تحویل: 30 روز پس از دریافت سپرده
قابلیت ارائه: 500 واحد در ماه
توضیحات محصول جزئیات
ماده مخزن: فولاد ظرفیت مخزن (CBM): 30CBM 32CBM 34CBM 40CBM 45CBM 50CBM
متوسط: انواع قیر محور: FUWA/L1/برند آلمان BPW
مقدار محور: 2 محور / 3 محور مشعل: برند بین المللی ایتالیا Riello
دماسنج: نام تجاری محلی چین / برند بین المللی سطح سنج: اختیاری
برجسته کردن:

Bitumen Tank Semi Trailer,35cbm Tank Semi Trailer,35cbm Tanker Semi Trailer

,

35cbm Tank Semi Trailer

,

35cbm Tanker Semi Trailer

3 Axle Asphalt Bitumen Carbon Steel Tank Semi Trailer


Product Description
1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.

Specification

Semi Trailer Type 3 axle Asphalt Bitumen Tank Semi Trailer
Function Tanker trailer transport Asphalt Tar Pitch Bitumen
Overall dimension 11500*2500*3750mm
Curb weight 11700Kgs
Loading capacity 35cbm/35000Litres
Front/rear hanging -/1580
Leaf spring -/8/8/8
Axle 3Axles, BPW or FUWA brand 13T/16T/20T etc
Wheelbase 5800+1310+1310 mm
Tire Specification 11.00R20
King pin 50# or 90 #
ABS Equipped
Nos of tire 12+1 Pcs

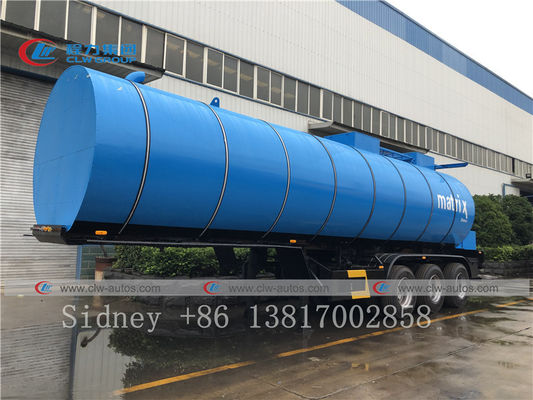

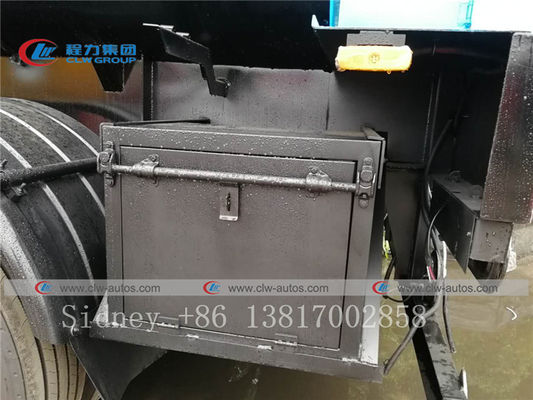

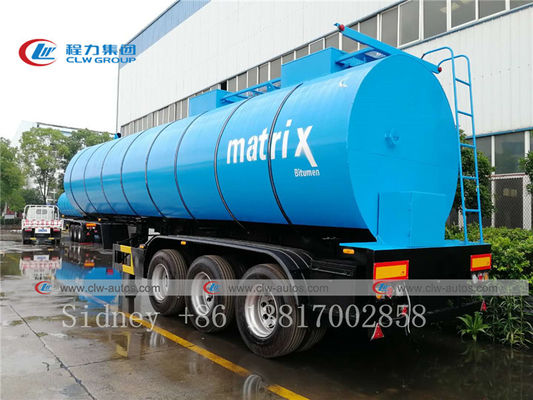

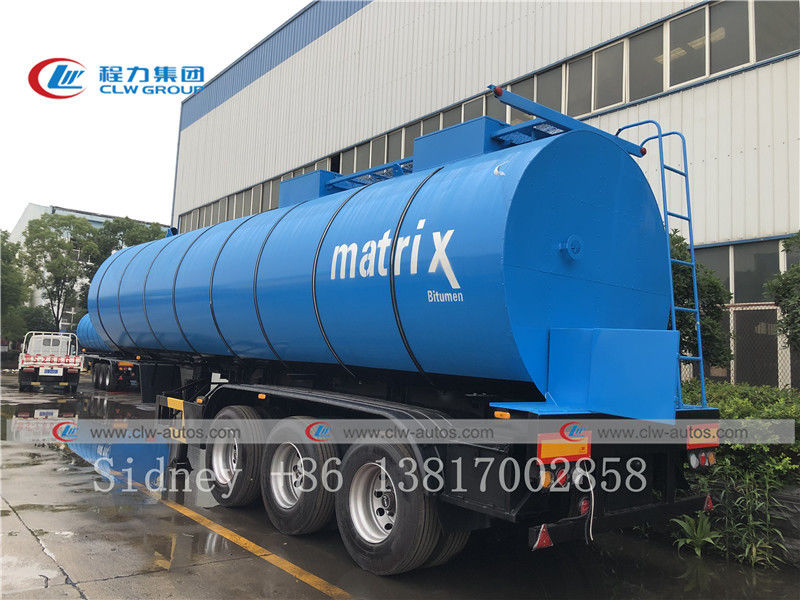

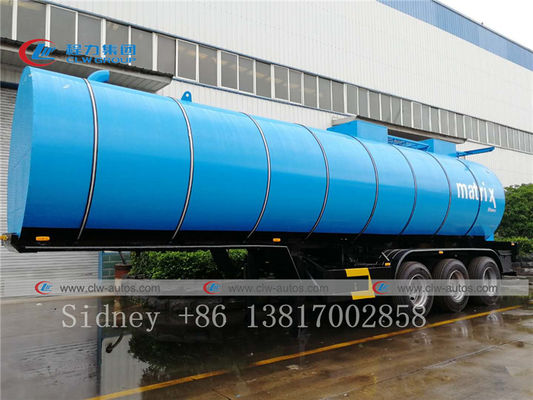

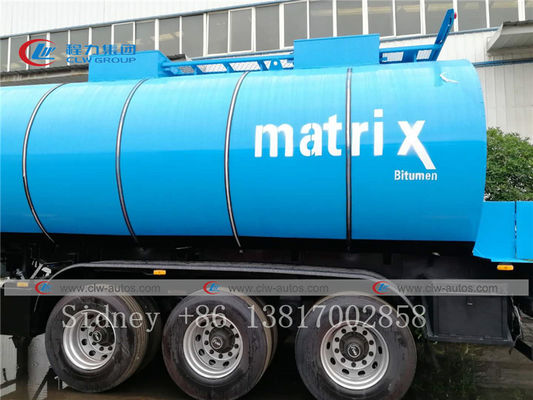

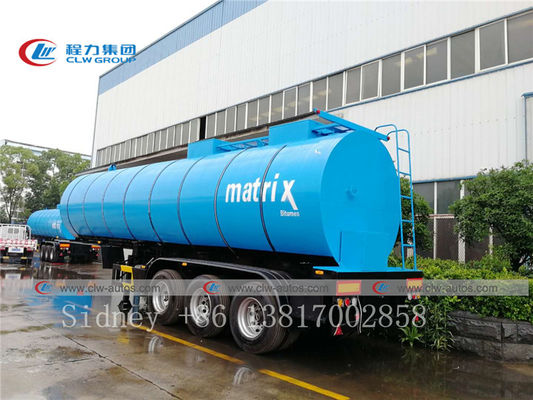

Reference photos

35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 035cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 1

35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 2

Sales Service


① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



Sucessful Case
35cbm 3 Axle Bitumen Carbon Steel Tank Semi Trailer 3

FAQ



Q1: What kinds of bitumen truck and trailer I can order from your company?
A: We can supply 4CBM to 35.5CBM Bitumen tank truck, and 34CBM to 50CBM Bitumen tank trailer, it's only for bitumen storage and transportation. We also can supply 4CBM to 35.5CBM Bitumen distribution truck and all kinds of Synchronous Chip Sealer. As for

Q2: Can we adopts International brand for the key parts of this kind of bitumen tank truck and trailer?
A: Sure. All key part of our bitumen tank truck and trailer all adopts Internation brand. Eg: We always adopts Italy brand Riello brand burner.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
