Full Computer Control Forland 4X2 Aerial Platform Truck

تصویر بزرگ : Full Computer Control Forland 4X2 Aerial Platform Truck

جزئیات محصول:

محل منبع:	سوئیژو، چین
نام تجاری:	CLW
گواهی:	CCC,ISO,SGS,BV
شماره مدل:	CLW51KW

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	35-40 روز
شرایط پرداخت:	D/A، D/P، Western Union، MoneyGram
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

برند شاسی:	دانگ فنگ، ISUZU، JAC، JMC، FORland، foton	ارتفاع بلند کردن (M):	10 متر، 12 متر، 14 متر، 16 متر
ارتفاع عملیاتی (متر):	12 متر، 14 متر، 16 متر، 18 متر	حالت کنترل:	دسته کنترل/کنترل را حذف کنید
مدل محرک:	4x2; 4x4; مطابق با طراحی بالا و درخواست مشتری	رنگ:	قرمز/زرد/آبی/سبز/اختیاری
برجسته کردن:	Forland Aerial Platform Truck,4X2 Aerial Platform Truck,Forland Aerial Bucket Truck , 4X2 Aerial Platform Truck , Forland Aerial Bucket Truck

Forland 12-16 Meters Aerial Platform Truck Truck Mounted Aerial Work Platform Aerial Bucket Truck

Description

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Specifications

AERIAL PLATFORM TRUCK
General	Descriptions	Specifications and types
	Truck Brand	CLW
	Chassis Brand	Foton forland
	Approx. Dimension	820023203120 mm
	GVW./Kerb Wt.	6495 /6300 kg
Cab	Cab Capacity	3 persons' seat
Cab	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4X2,LHD or RHD
	Fuel Type	Diesel
	Engine Make & Model	Chaochai engine
	Power	120 HP / 88 KW
	Displacement	3856ml
	Emission Standard	Euro II or EURO III
	Wheelbase/No.of axle	3800mm / 2
	Tyre Specfication	7.50-16,7.50R16,8.25-16,8.25R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Superstructure	Max working height	12-16M
	Working cage	200kg capacity
	Beam	Hydraulic control
	Slewing	360 continuous rotation
Equipments	Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional

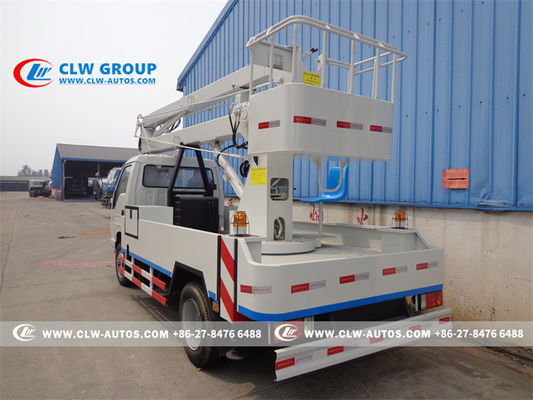

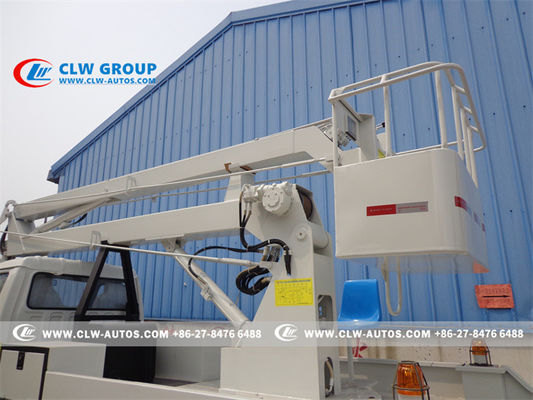

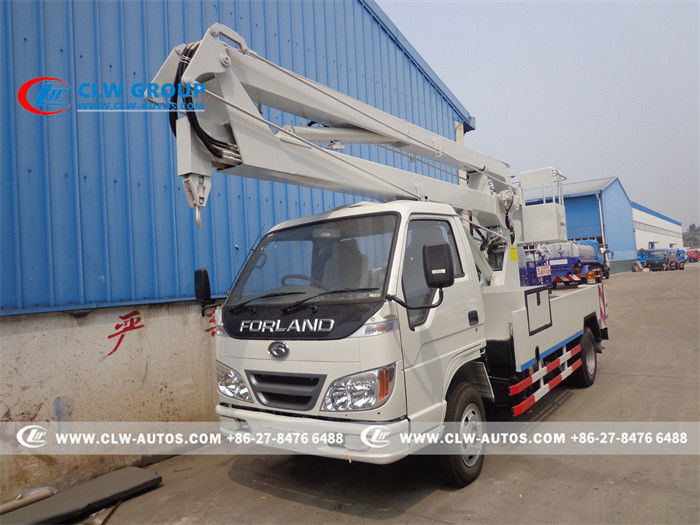

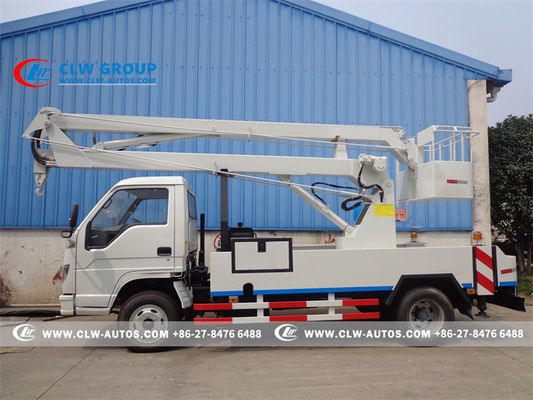

Reference photos

Full Computer Control Forland 4X2 Aerial Platform Truck 0

Working show

Full Computer Control Forland 4X2 Aerial Platform Truck 3

Full Computer Control Forland 4X2 Aerial Platform Truck 4

Bulk orders

Full Computer Control Forland 4X2 Aerial Platform Truck 5

Factory overview

Full Computer Control Forland 4X2 Aerial Platform Truck 6

Full Computer Control Forland 4X2 Aerial Platform Truck 7

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
